Big Motors > AirDrive (Drones/Fixed-wing)

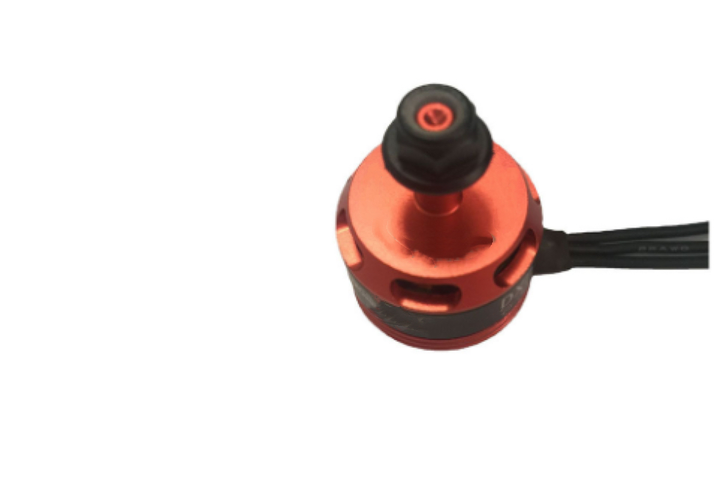

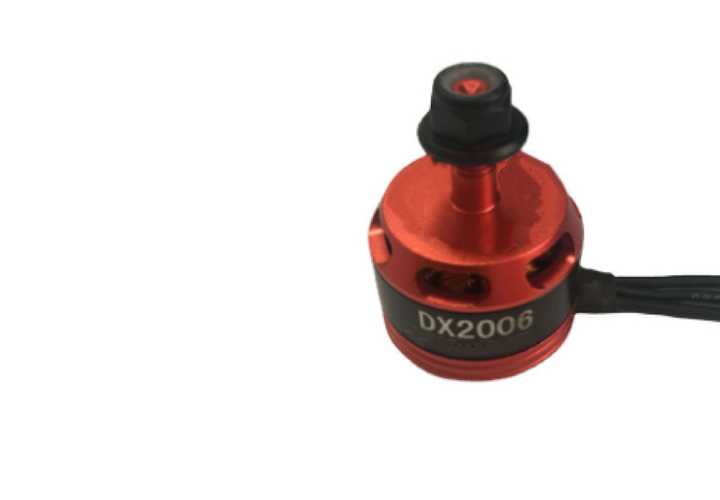

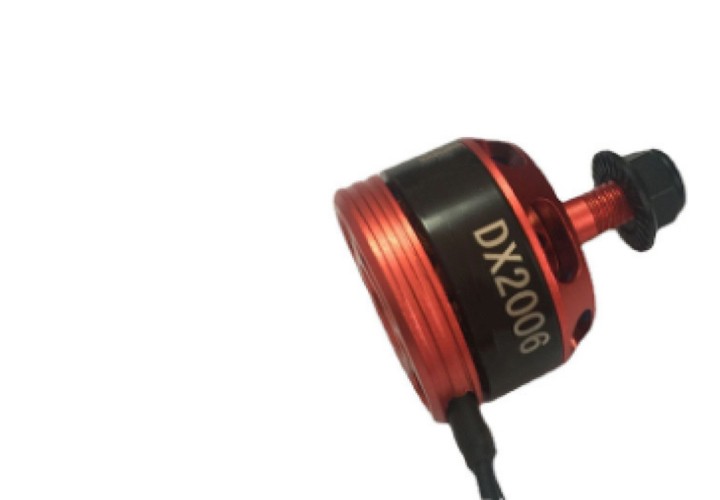

The DX2006 2400KV brushless motor delivers optimized performance for FPV drones and aerial photography platforms. Featuring precision-balanced components and efficient thermal management, it provides exceptional flight stability with minimal vibration. The motor's lightweight construction and smooth throttle response make it ideal for both racing drones and camera-equipped UAVs requiring stable footage and agile maneuverability.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP4X (Limited Dust Protection) |
| Rated Voltage | 3S-6S LiPo (11.1-14.8V) |
| Continuous Power | 205W @ 14.8V (Peak 243W) |
| Max Thrust | 330g (Peak) / 550g (Continuous) |
| Speed Range | 5,000-50,000 RPM (ESC Adjustable) |
| KV Rating | 2400 RPM/V |
| Phase Resistance | 0.035Ω (Phase-to-Phase) |

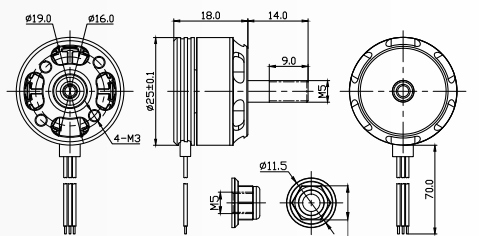

| Shaft Design | 5mm Threaded (M5 CW & CCW) |
| Weight | 25g (Without Wires) |
| Mounting | 16×16mm / M3 Threads (4-point) |
• Vibration Control: Precision-balanced rotor with <0.02g·mm imbalance for smooth footage

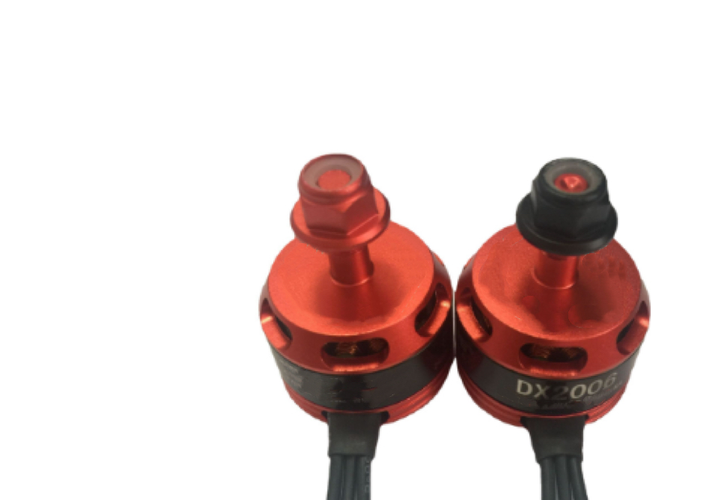

• Dual-Threaded Shaft: Includes both CW and CCW M5 shafts for propeller flexibility
• Efficient Cooling: Aerodynamic vents reduce operating temperature by 25°C
• Rapid Response: 0-40k RPM acceleration in 0.08 seconds
• Noise Reduction: Helical skew design minimizes acoustic signature
| Thrust | RPM/V | Current | Efficiency | Flight Time* |
| 330g | 2400 | 10.2A | 88% | 10 min |
| 550g | 3400 | 17.3A | 91% | 7 min |
| *Based on 1500mAh 4S battery |
• 5"-7" racing quadcopters
• Freestyle FPV platforms
• Long-range mini UAVs
• Camera drone propulsion systems
• Cinematic filming platforms
• Mapping/survey drones
• High-performance toy drones
• Advanced RC car powertrains
• Drone racing starter kits
• Continuous Operation: 70°C @25°C ambient (30sec burst max)
• Thermal Management: Maintains <80°C at 90% load with airflow
• Cooling Requirements: Minimum 5m/s propeller-induced airflow
• Storage Conditions: -20℃ ~ +70℃, <75% RH
