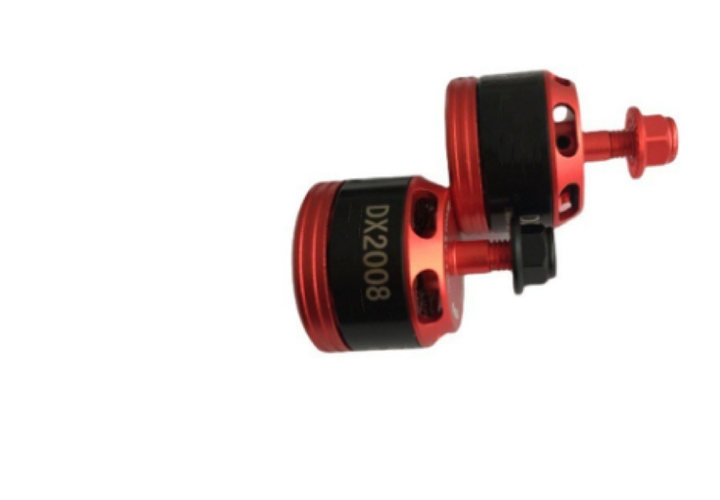

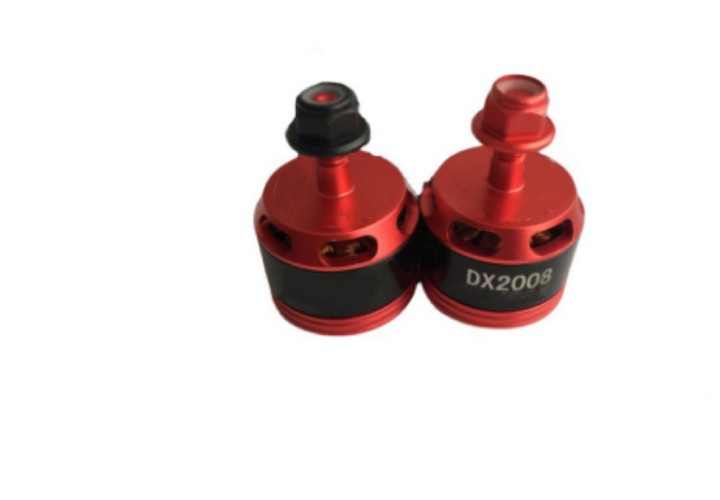

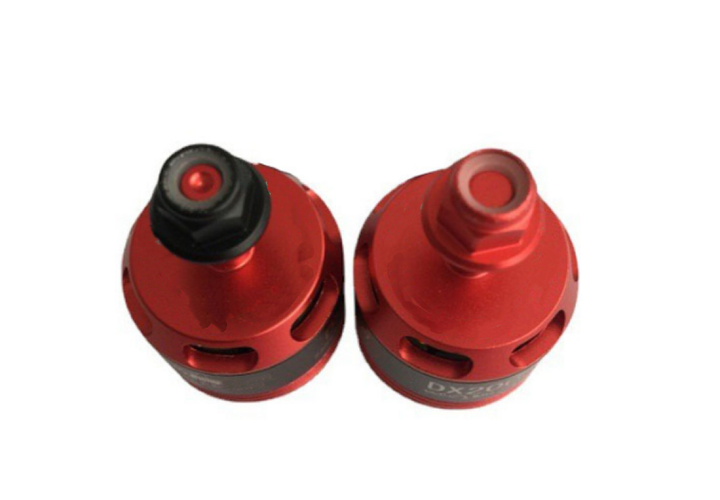

The DX2008 2300KV brushless motor delivers optimized performance for mini quadcopters and micro aircraft applications. Featuring precision-balanced components and efficient power delivery, it provides exceptional flight stability with responsive throttle control. The motor's lightweight construction and thermal management make it ideal for sub-300g drones requiring agile maneuverability and extended flight times in both indoor and outdoor environments.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP4X (Limited Dust Protection) |
| Rated Voltage | 3S-4S LiPo (11.1-14.8V) |
| Continuous Power | 205W @ 14.8V (Peak 260W) |
| Max Thrust | 610g (Peak) / 365g (Continuous) |
| Speed Range | 5,000-48,000 RPM (ESC Adjustable) |
| KV Rating | 2300 RPM/V |
| Phase Resistance | 0.038Ω (Phase-to-Phase) |

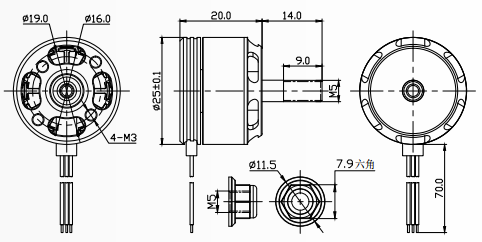

| Shaft Design | 5mm Threaded (M5 CW & CCW) |
| Weight | 30.5g (Without Wires) |
| Mounting | 16×16mm / M3 Threads (4-point) |
• Vibration Control: Precision-balanced rotor with <0.02g·mm imbalance
• Dual-Threaded Shaft: Includes both CW and CCW M5 shafts for propeller flexibility
• Efficient Cooling: Aerodynamic vents reduce operating temperature by 22°C
• Rapid Response: 0-38k RPM acceleration in 0.09 seconds
• Noise Reduction: Helical skew design minimizes acoustic signature
| Thrust | RPM/V | Current | Efficiency | Flight Time* |
| 365g | 2300 | 10.5A | 88% | 9 min |
| 610g | 2300 | 18.5A | 91% | 7 min |
| *Based on 1300mAh 4S battery |
• 5"-6" FPV racing drones
• Indoor freestyle quads
• Micro long-range UAVs
• Park flyer propulsion
• EPP foam glider boosters
• Scale model aircraft powertrains
• Whoop-class drone upgrades
• Tiny trainer platforms
• Lightweight cinewhoop drones
• Continuous Operation: 70°C @25°C ambient (30sec burst max)
• Thermal Management: Maintains <80°C at 85% load with airflow
• Cooling Requirements: Minimum 4m/s propeller-induced airflow
• Storage Conditions: -20℃ ~ +70℃, <75% RH
