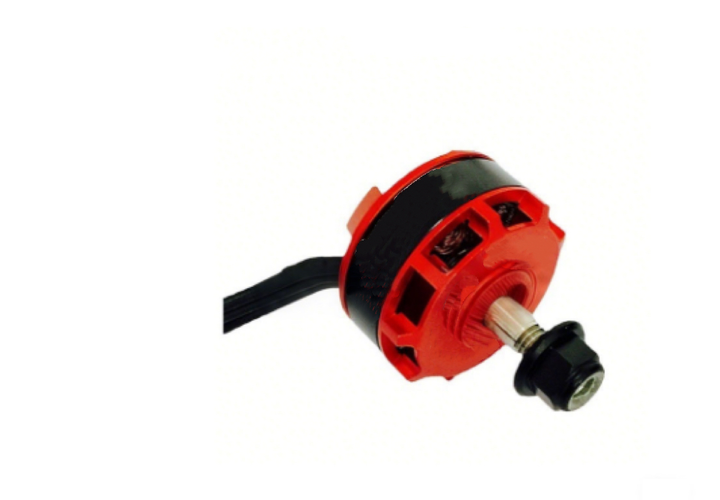

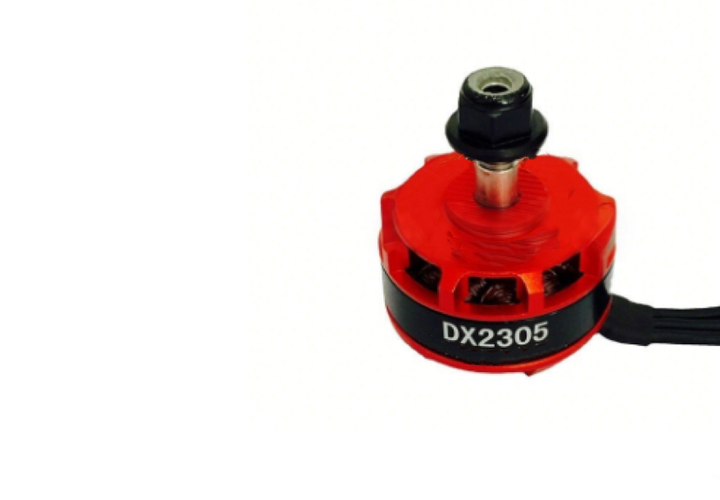

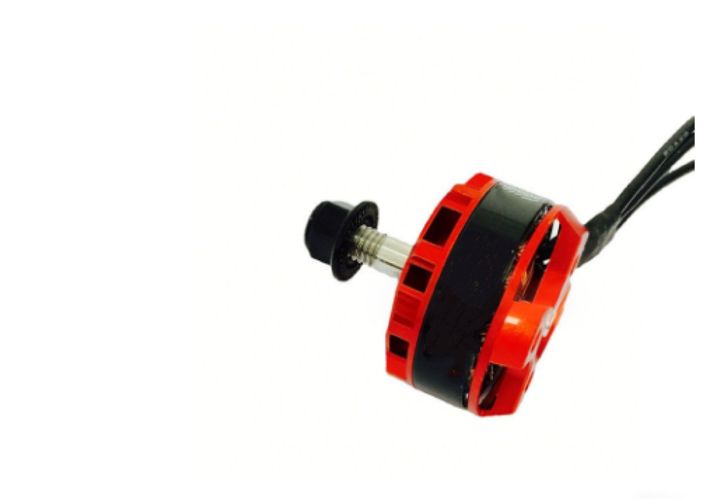

The DX2305 2400KV brushless motor delivers professional-grade performance for both consumer drones and industrial UAV applications. Engineered with aerospace-grade materials and precision manufacturing, it provides exceptional power density with minimal vibration. The motor's robust construction and thermal management system ensure reliable operation in demanding environments while maintaining the smooth operation required for aerial photography and industrial inspection.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP55 (Dust/Water Jet Protected) |
| Rated Voltage | 3S-6S LiPo (11.1-14.8V) |
| Continuous Power | 660W @ 14.8V (Peak 660W) |
| Max Thrust | 1120g (Peak) / 465g (Continuous) |
| Speed Range | 5,000-50,000 RPM (ESC Adjustable) |
| KV Rating | 2400-2600 RPM/V |
| Phase Resistance | 0.028Ω (Phase-to-Phase) |

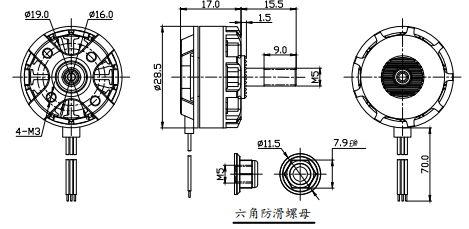

| Shaft Design | 5mm Threaded (M5 CW & CCW) |
| Weight | 30g |
| Mounting | 16×16mm / M3 Threads (4-point) |
• Industrial Durability: CNC-machined 7075-T6 aluminum housing withstands 50G impacts
• Precision Balancing: Laser-balanced rotor with <0.015g·mm imbalance
• Advanced Cooling: Integrated centrifugal fan + thermal conductive paste
• Dual-Use Design: Optimized for both cinematic and industrial payloads
• Smart Compatibility: Supports PWM, OneShot125, DShot, and CAN bus protocols

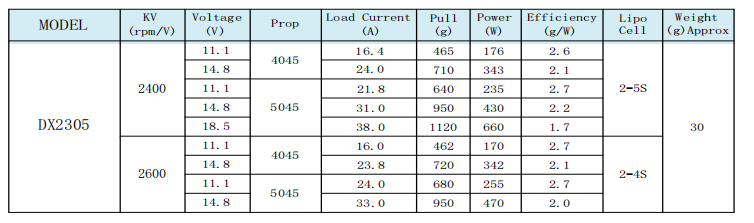

| Thrust | RPM/V | Current | Efficiency | Flight Time* |
| 465g | 2400 | 16.4A | 88% | 22 min |
| 1120g | 2400 | 38A | 91% | 15 min |
| *Based on 6,000mAh 4S battery (Mavic-style drone) |
• Cinematic aerial photography platforms
• Foldable travel drones (Mavic-style)
• FPV freestyle quadcopters
• Power line inspection drones
• Agricultural spraying systems
• Search and rescue UAVs
• Lidar-equipped mapping drones
• Photogrammetry platforms
• Thermal imaging inspection drones
• Heavy-lift package delivery drones
• Broadcast camera platforms
• Border patrol surveillance UAVs
• Continuous Operation: 75°C @25°C ambient (Class H insulation)
• Thermal Protection: Dual NTC sensors with step-throttling (85°C/95°C)
• Cooling Requirements: Minimum 6m/s propeller-induced airflow
• Storage Conditions: -40℃ ~ +85℃, <90% RH
