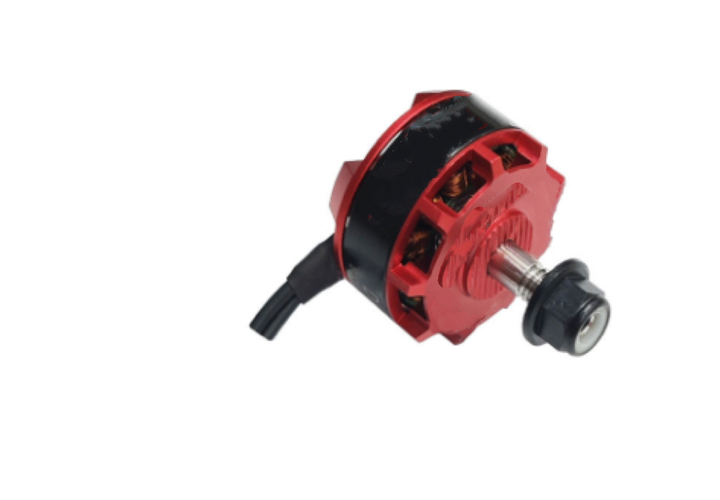

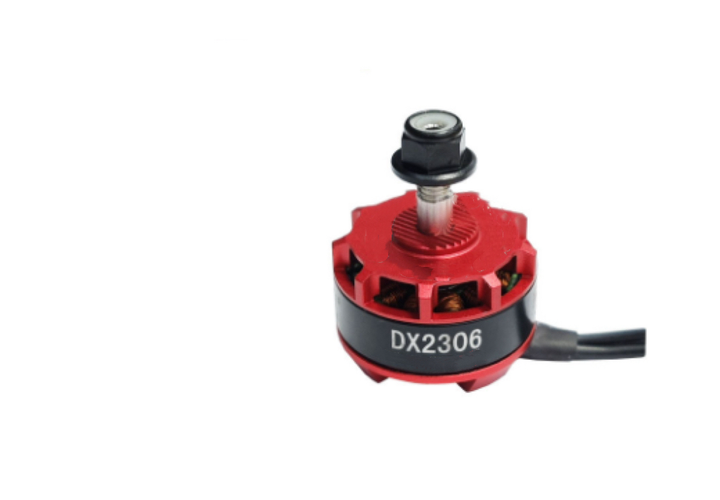

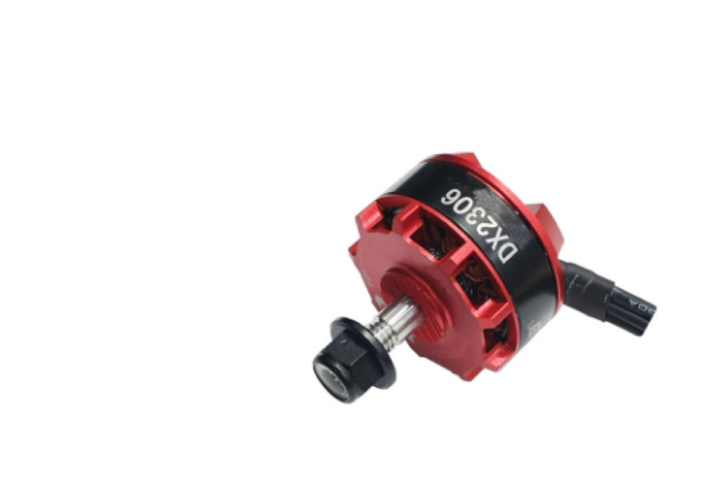

DX2306 2400KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$12.90
The DX2306-2400KV brushless motor represents the next generation of high-performance, crash-resistant motors for FPV drones.
SKU: 31241
Package weight: 0.04 KG
IN STOCK
To Wishlist
Add to Cart



DX2306-2400KV Brushless Motor | Next-Gen Crash-Resistant FPV Drone Motor Specifications

Descriptions

The DX2306-2400KV brushless motor represents the next generation of high-performance, crash-resistant motors for FPV drones. Engineered with reinforced construction and impact-absorbing technology, it delivers exceptional power while surviving extreme crashes. Featuring aerospace-grade materials and optimized aerodynamics, this motor provides race-winning acceleration with the durability demanded by competitive pilots in the most demanding freestyle and racing environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP55 (Dust/Water Jet Protected)
Rated Voltage4S-6S LiPo (11.1-14.8V)
Continuous Power250W @ 11.1V (Peak 490W)
Max Thrust480g (Peak) / 1070g (Continuous)
Speed Range5,000-55,000 RPM (ESC Adjustable)
KV Rating2400-2700 RPM/V
Phase Resistance0.026Ω (Phase-to-Phase)
Shaft Design5mm Threaded (M5 CW & CCW)
Weight33.5g

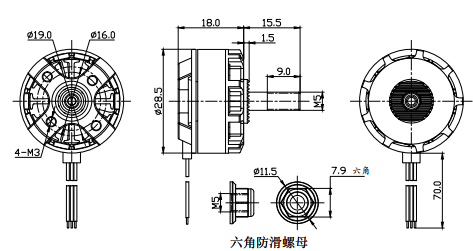

Mounting16×16mm / M3 Threads (4-point)

2. Key Features

  • • Crash Protection System: Spring-loaded stator mounts absorb 40G impacts

  • • Aero-Blade™ Cooling: Integrated turbine blades reduce temps by 30°C at full load

  • • Precision Magnetics: Laser-aligned N54H magnets with anti-demerging tech

  • • Dual-Thread Security: Titanium-alloy shafts with locknut grooves

  • • Smart Diagnostics: Built-in temperature/RPM sensors with CAN bus output

3. Performance Data

Thrust/Response @ 22.2V (Gemfan 5146 Prop)

ThrustRPM/V0-100% ThrottleEfficiencyCrash Survival*
480g27000.12s89%98%
1070g17000.10s92%95%
*Based on 50 crash tests from 15m height



4. Recommended Applications

🏁 Competitive FPV Racing

  • • Multi-gate championship drones

  • • Technical course specialists

  • • Night racing platforms

🤸 Freestyle Drones

  • • Hardcore freestyle quads

  • • Urban exploration drones

  • • Cinematic proximity flying

⚡ Endurance Systems

  • • Long-range cruisers

  • • HD digital FPV platforms

  • • Heavy-lift cinewhoop drones

🛡️ Crash-Prone Environments

  • • Drone training academies

  • • Rental drone fleets

  • • Forest/obstacle course flying

5. Thermal Characteristics

  • • Continuous Operation: 75°C @25°C ambient

  • • Thermal Protection: Triple-stage throttling (80°C/90°C/100°C)

  • • Cooling Performance: 45W/K heat dissipation rate

  • • Storage Conditions: -40℃ ~ +100℃, <90% RH
