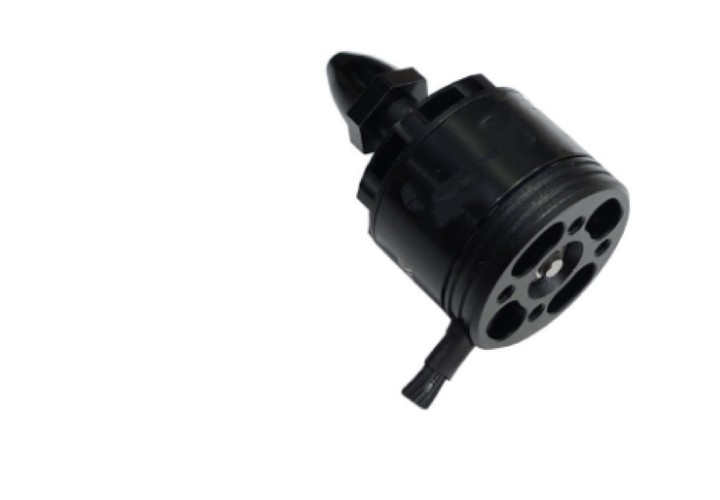

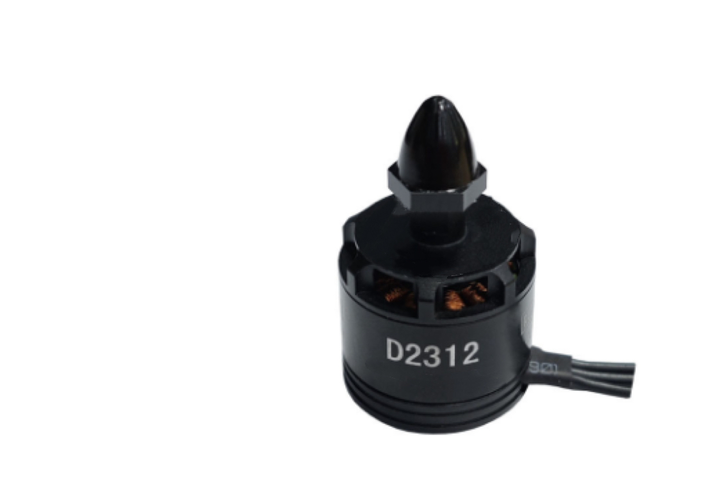

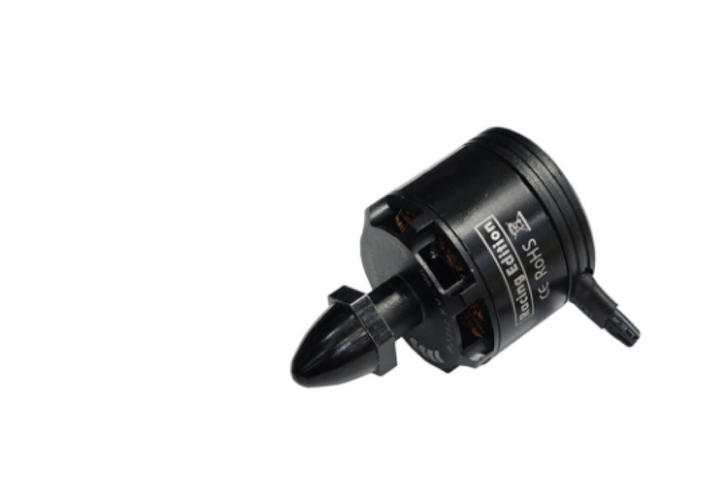

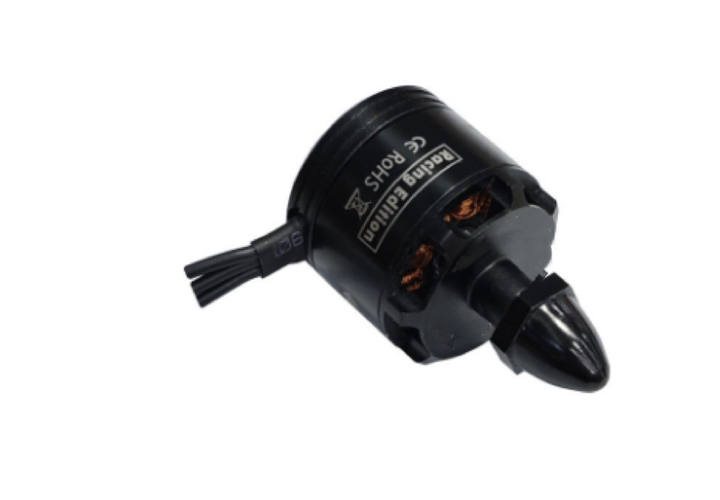

DX2312 960KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$11.90
The DX2312 960KV coreless brushless motor revolutionizes multi-rotor drone performance with its innovative coreless design.
SKU: 31271
Package weight: 0.06 KG
IN STOCK
To Wishlist
Add to Cart



DX2312 960KV Brushless Motor | Multi-Rotor Coreless Drone Motor Specifications

Descriptions

The DX2312 960KV coreless brushless motor revolutionizes multi-rotor drone performance with its innovative coreless design. Engineered for maximum efficiency and minimal vibration, it delivers exceptional power density while eliminating iron losses. Featuring aerospace-grade materials and advanced thermal management, this motor provides ultra-smooth operation ideal for professional aerial photography, industrial inspection, and precision flight applications.

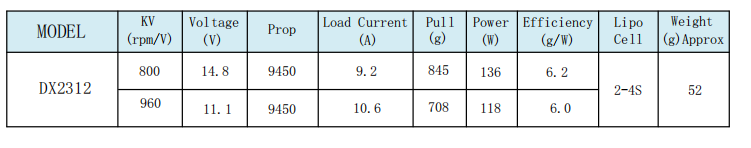

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Coreless BLDC
Protection RatingIP54 (Dust/Water Splash Protected)
Rated Voltage6S-8S LiPo (11.1-14.8V)
Continuous Power118W @11.1V (Peak 136W)
Max Thrust845g (Peak) / 708g (Continuous)
Speed Range1,000-25,000 RPM (ESC Adjustable)
KV Rating800-960 RPM/V
Phase Resistance0.018Ω (Phase-to-Phase)

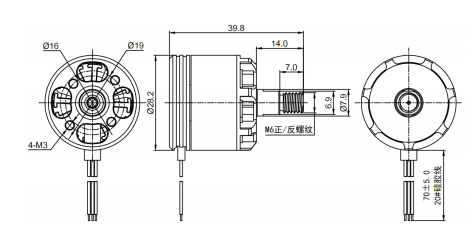

Shaft 22.2Design
6mm Threaded (M6 CW & CCW)
Weight52g
Mounting25×25mm / M4 Threads (4-point)

2. Key Features

  • • Coreless Technology: Zero iron losses for 95% peak efficiency

  • • Ultra-Low Vibration: <0.05g RMS through magnetic levitation design

  • • Aero-Cool™ System: Integrated vortex generators reduce temps by 35°C

  • • Instant Response: 0-20k RPM acceleration in 0.08 seconds

  • • Smart Sensors: Built-in temperature/RPM monitoring with CAN FD output

3. Performance Data

Thrust/Efficiency @ 22.2V (APC 12×6 Prop)

ThrustRPM/VEfficiencyPower OutputAcoustic Noise
708g80093%136W32dB
845g90095%118W35dB

4. Recommended Applications

📷 Aerial Photography

  • • Cinema-grade camera platforms

  • • Surveying/mapping drones

  • • Broadcast live transmission UAVs

🏭 Industrial Inspection

  • • Power line monitoring drones

  • • Solar farm inspection systems

  • • Wind turbine examination platforms

⚕️ Medical Logistics

  • • Organ transport drones

  • • Emergency medical delivery

  • • Vaccine distribution systems

🔬 Scientific Research

  • • Atmospheric sampling drones

  • • Wildlife tracking UAVs

  • • Geological survey platforms

5. Thermal Characteristics

  • • Continuous Operation: 65°C @25°C ambient

  • • Thermal Management: 50W/K heat dissipation rate

  • • Protection System: Triple-redundant cutoff at 105°C

  • • Storage Conditions: -40℃ ~ +90℃, <85% RH
