Electric Scooter Switch

Accessories > Scooter Accessories

$2.90
Specifications Multifunctional handlebar switch assembly integrating horn button, speed mode selector (gear shifting), and lighting controls (headlight / turn signals / hazard).
SKU: 4631
Package weight: 0.50 KG
IN STOCK
To Wishlist
Add to Cart

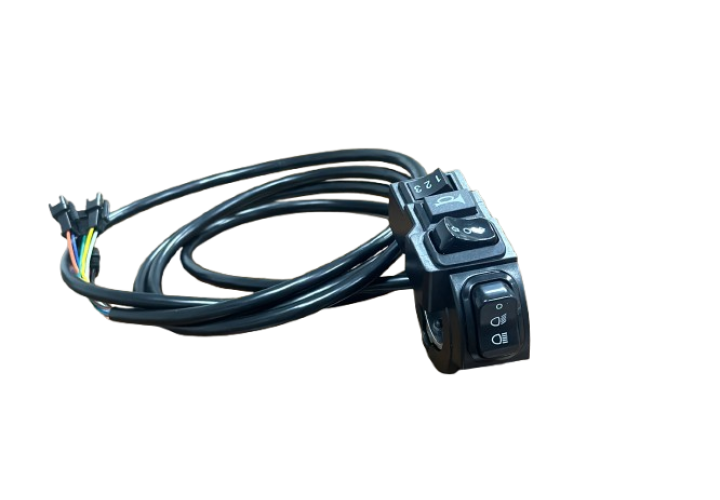

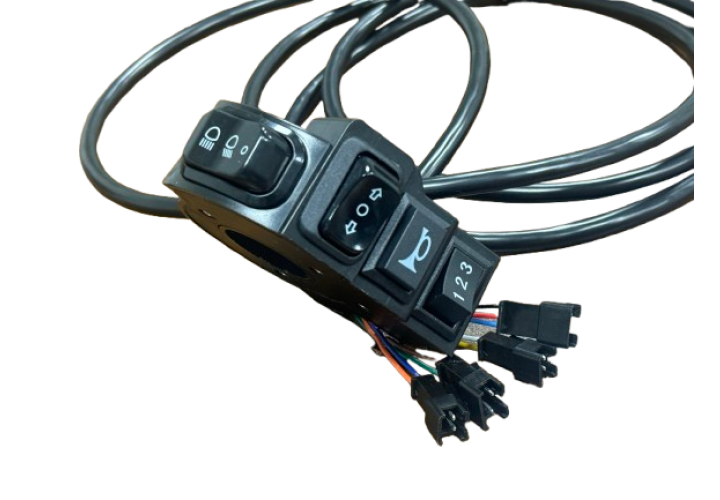

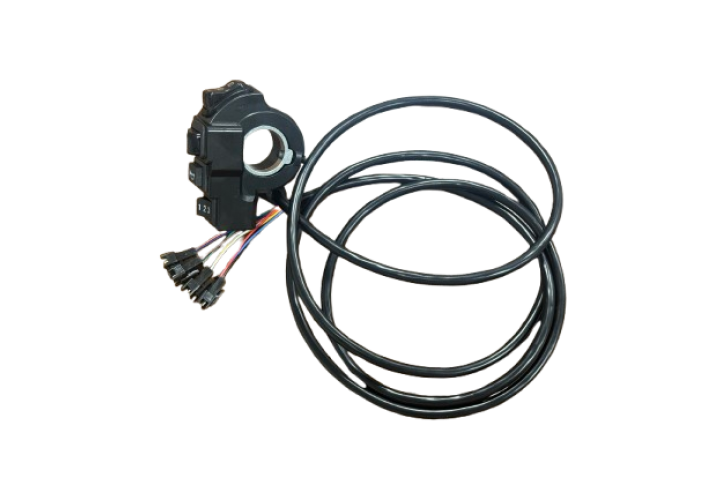

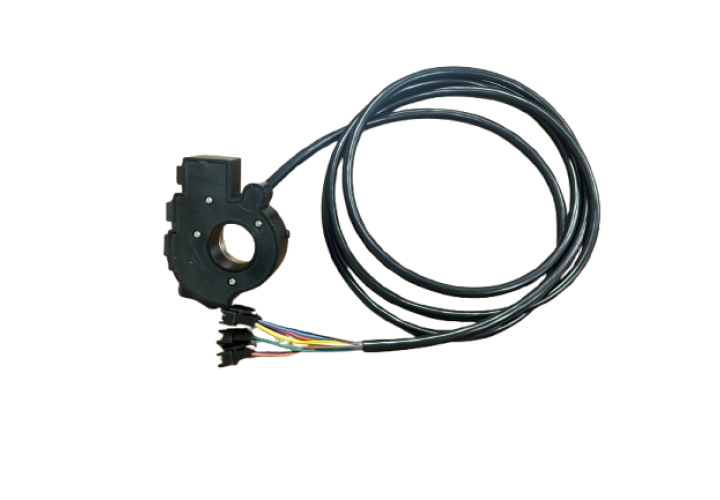

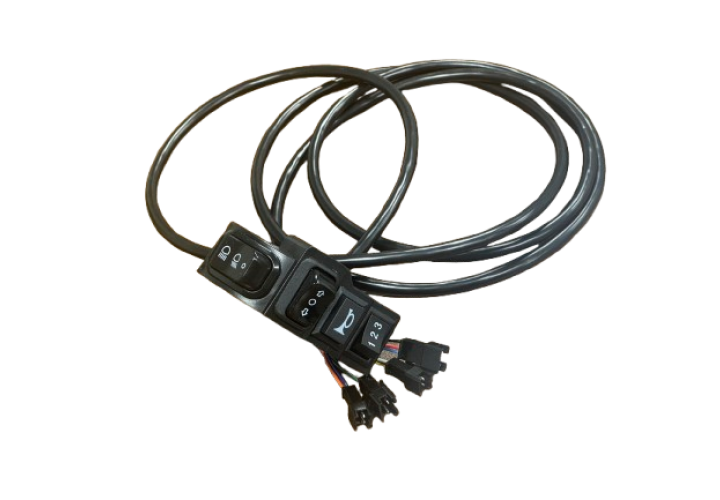

Electric Scooter Horn / Speed Mode / Light Switch Assembly Product Specifications

Multifunctional handlebar switch assembly integrating horn button, speed mode selector (gear shifting), and lighting controls (headlight / turn signals / hazard). Designed for electric scooters, e‑bikes and PEVs. Ergonomic layout with IP54 waterproof rating and wide voltage compatibility.

1. Key Electrical Parameters

  • • Operating Voltage: 12V – 72V DC (compatible with 24V, 36V, 48V, 60V, 72V systems)

  • • Switch Contact Type: Momentary (horn) + latching (light / gear) options

  • • Switch Current Rating: 3A – 5A per channel (resistive load)

  • • Contact Resistance: ≤ 30mΩ

  • • Insulation Resistance: ≥ 100MΩ @ 500V DC

  • • Dielectric Strength: 500V AC for 1 minute

2. Hardware Design & Construction

  • • Housing Material: High‑hardness ABS or PA66 (nylon) with UV protection

  • • Button Material: Soft‑touch rubber or textured silicone (non‑slip, fatigue reduction)

  • • Handlebar Fitment: 22mm / 7/8‑inch (universal clamp; optional 25.4mm / 31.8mm via shims)

  • • Dimensions (Typical): 65mm (L) × 35mm (W) × 30mm (H) (form factor varies by button count)

  • • Weight (Typical): 50g – 80g

  • • Cable Length (Typical): 200mm – 500mm (multi‑conductor pigtail, connector optional)

3. Features & Interfaces

  • • Integrated Controls:

    • • Horn Button: Momentary press, prominent tactile feedback (heightened or colour‑contrasted)

    • • Light Switch: 2‑position / 3‑position (OFF → ON → AUTO or OFF → DRL → HEADLIGHT)

    • • Speed Mode Switch: 2‑speed or 3‑speed (ECO / D / SPORT) with LED backlight indication

    • • Potential Additional Functions: Turn signal (left/right) and hazard toggle, cruise control

  • • Switch Actuation Rating: 100,000+ mechanical cycles per button

  • • Customisation Options: Cable length, connector type (SM / waterproof / aviation), labelling (symbols or text)

  • • Mounting Orientation: Left‑hand or right‑hand clamp; adjustable angle via friction or hex bolt

4. Protection & Environmental Features

  • • Waterproof Rating: IP54 (splash‑proof, dust‑resistant; higher IP65 available on select models)

  • • Operating Temperature Range: -20°C to +70°C

  • • Ingress Protection for Buttons: Silicone membrane seal prevents moisture/dust entry

  • • Vibration Resistance: Suitable for daily urban and light off‑road riding

  • • Short Circuit / Overload Protection: Via external controller (not integrated)
