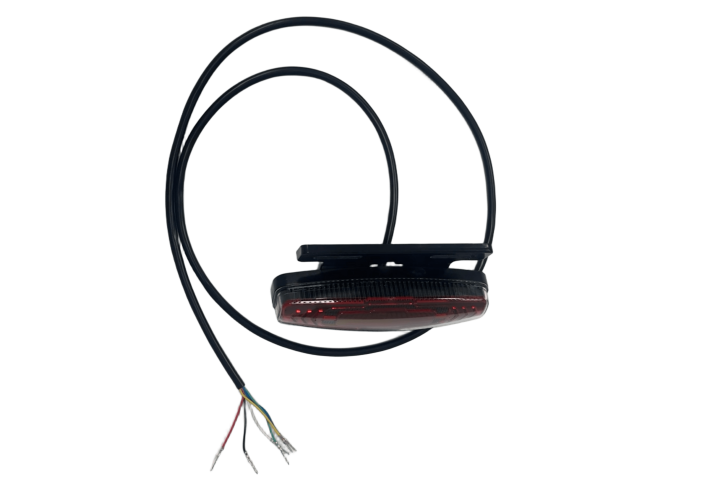

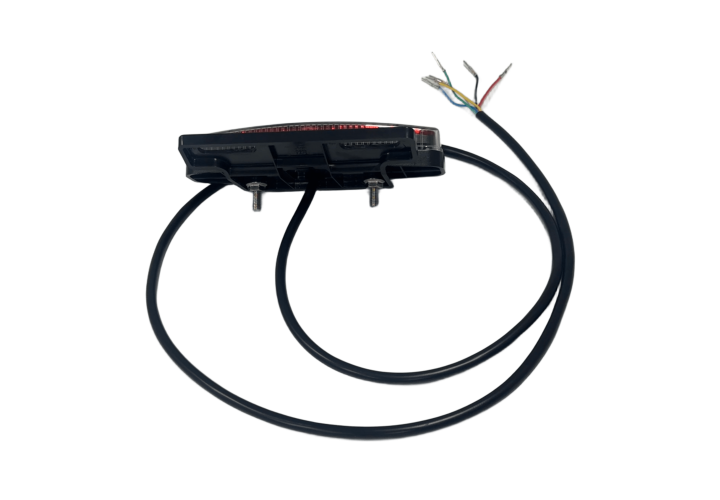

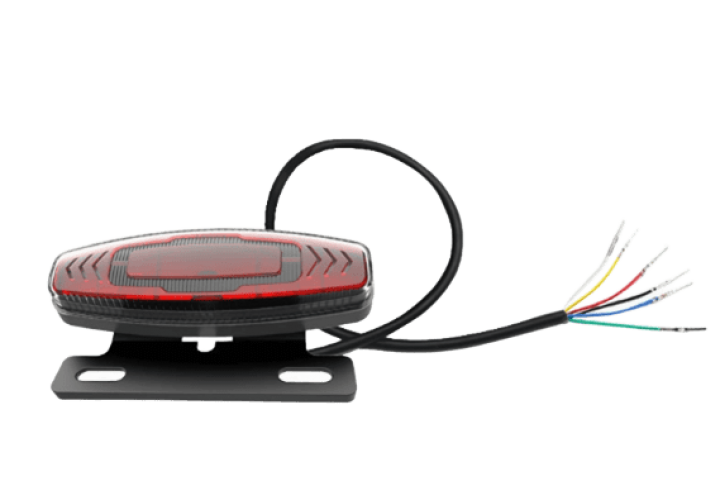

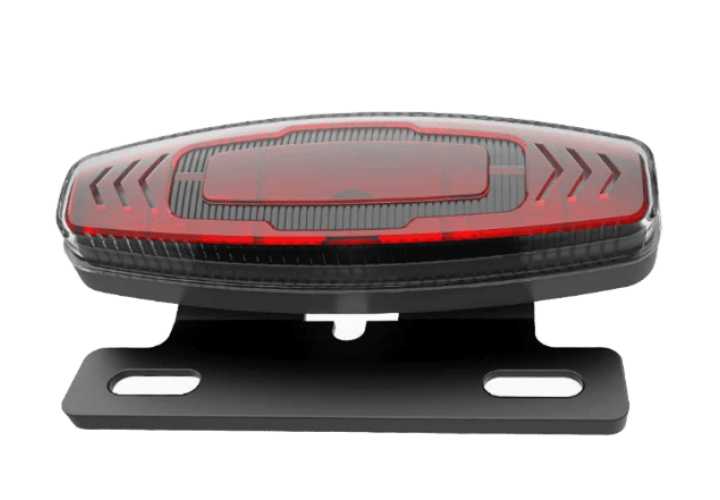

Electric Scooter Tail Light

Accessories > Scooter Accessories

$3.90
High‑brightness LED tail light with integrated brake light and optional turn signal / license plate illumination.
SKU: 4641
Package weight: 1.00 KG
IN STOCK
To Wishlist
Add to Cart



Electric Scooter Tail Light Product Specifications

High‑brightness LED tail light with integrated brake light and optional turn signal / license plate illumination. Designed for electric scooters, e‑bikes and PEVs. Compact and weather‑resistant housing with universal mounting bracket and wide voltage compatibility.

1. Key Electrical Parameters

  • • Operating Voltage: 12V – 72V DC (compatible with 24V, 36V, 48V, 60V, 72V systems)

  • • LED Power: 2W – 8W (running light + brake light combined)

  • • Luminous Intensity: Running light: 20 – 50 lumens; Brake light: 80 – 150 lumens

  • • Light Modes: Running light (constant) + Brake light (bright, triggered by brake signal)

  • • Colour Temperature: 6000K – 6500K (white for license plate) / Red for tail/brake; Amber for turn indicators (if equipped)

  • • Current Consumption (Typical): 150mA – 500mA @ 12V (running); 300mA – 800mA @ 12V (brake)

2. Hardware Design & Construction

  • • Housing Material: Die‑cast aluminium or high‑strength ABS (black finish)

  • • Lens Material: High‑transparency PC (polycarbonate) with UV coating, red / amber / clear optical zones

  • • Heat Dissipation: Passive cooling via aluminium housing or internal metal‑core PCB

  • • Dimensions (Typical): 60mm (L) × 25mm (W) × 15mm (H) (may vary by model)

  • • Weight (Typical): 30g – 60g

  • • Mounting Type: Bolt‑on bracket (two M3/M4 screws) or 3M VHB adhesive pad + screw combination; adjustable vertical angle

3. Features & Interfaces

  • • Light Source: High‑brightness SMD 5050 or 2835 LEDs (rated lifespan 30,000+ hours)

  • • Integrated Functions: Tail light (always‑on or position light), brake light (high intensity), optional left/right turn signals, license plate light (white LED)

  • • Brake Signal Activation: Requires connection to brake lever sensor (high‑level or low‑level input)

  • • Wiring Interface (Typical 3‑wire or 5‑wire):

    • • Red: +V (tail / running light power)

    • • White: Brake light trigger (connect to brake switch output)

    • • Black: Ground (GND)

    • • Yellow / Green (optional): Left / right turn signal inputs

    • • Blue (optional): License plate LED power

  • • Connector Type: Waterproof SM‑2P / SM‑3P / SM‑5P (customizable)

  • • Mounting Orientation: Rear fender, seat post, or rear rack; left / right symmetrical or centre mount

  • • Optional Features: Strobe flash mode for brake light (programmable), ECE / DOT reflective optics, integrated radar / motion warning light

4. Protection & Environmental Features

  • • Waterproof Rating: IP65 (dust‑tight and protected against low‑pressure water jets)

  • • Operating Temperature Range: -20°C to +60°C

  • • Vibration Resistance: Suitable for daily urban and light off‑road riding

  • • Short Circuit Protection: Reverse polarity protection built‑in; overcurrent protection via external controller
