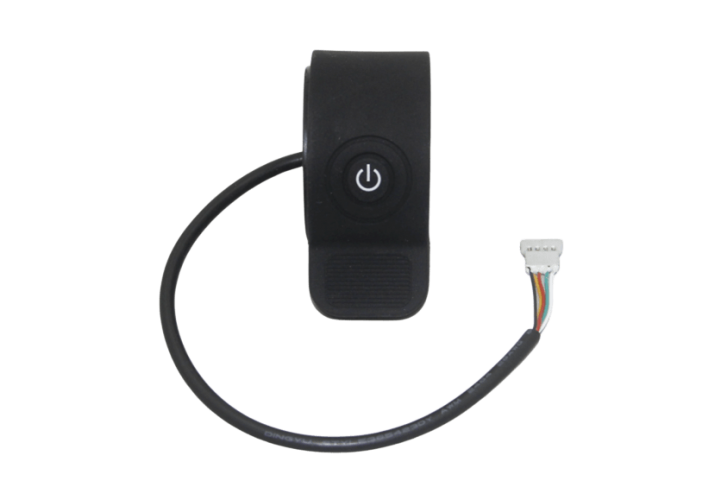

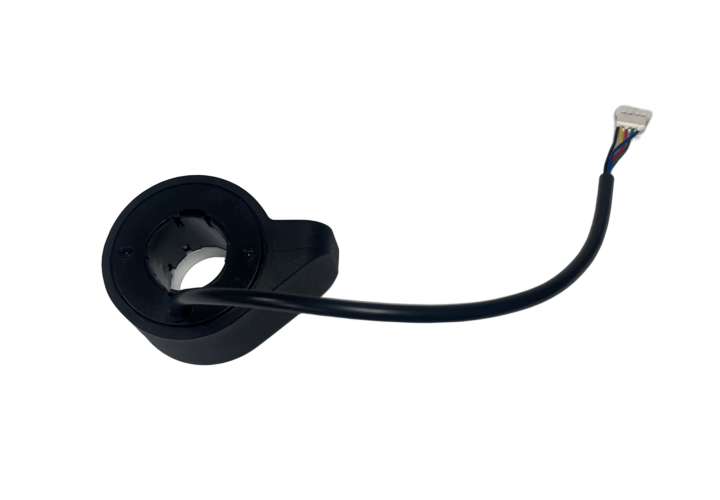

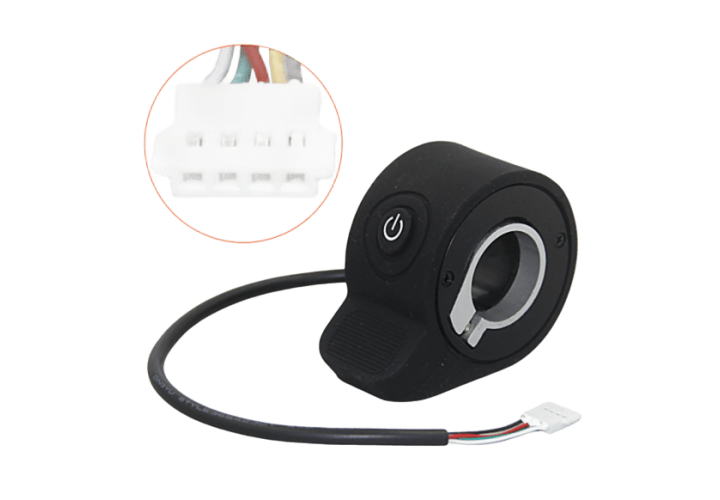

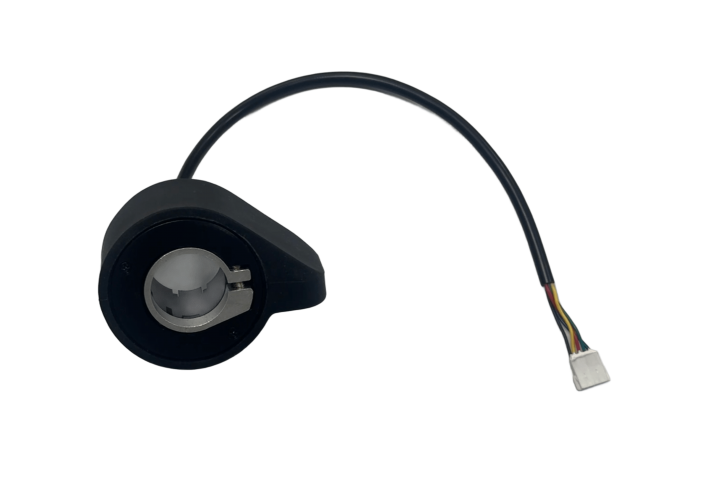

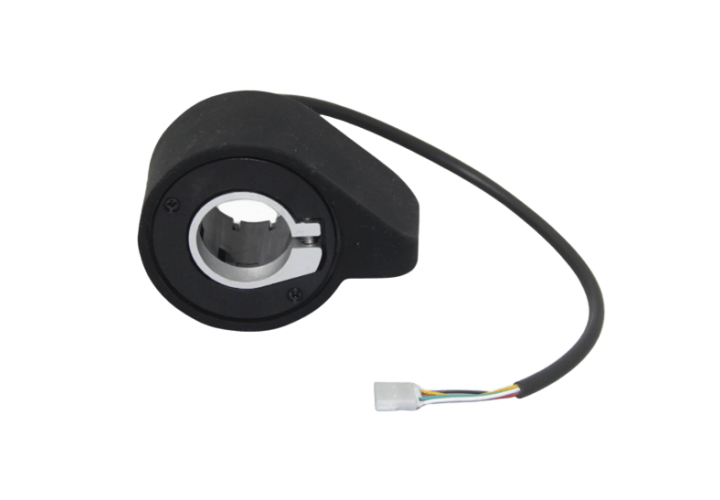

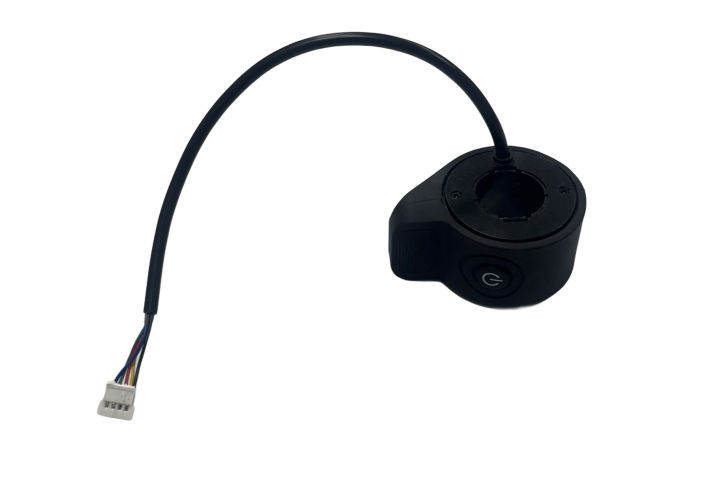

Electric Scooter Thumb Throttle

Accessories > Scooter Accessories

$4.90
Hall effect thumb throttle accelerator designed for electric scooters, e‑bikes and PEVs. Rugged ABS construction, universal voltage compatibility, and intuitive thumb‑actuated speed control deliver a responsive and reliable riding experience.
SKU: 4611
Package weight: 0.50 KG
IN STOCK
To Wishlist
Add to Cart



Universal Electric Scooter Thumb Throttle Accelerator Product Specifications

Hall effect thumb throttle accelerator designed for electric scooters, e‑bikes and PEVs. Rugged ABS construction, universal voltage compatibility, and intuitive thumb‑actuated speed control deliver a responsive and reliable riding experience.

1. Key Electrical Parameters

  • • Throttle Operation Type: Thumb / finger style throttle accelerator

  • • Hall Sensor Operating Voltage: 5V DC

  • • Hall Sensor Output Voltage (Linear): 0.8V at rest, up to 4.2V at full throttle

  • • System Voltage Compatibility: 12V – 72V DC (works with 24V, 36V, 48V, 60V, 72V systems)

  • • Turning / Travel Angle (Mechanical): 0° – 70° (typical)

  • • Signal Output: Analog voltage (Hall effect sensor, linear response)

2. Hardware Design & Construction

  • • Housing Material: High‑hardness ABS engineering plastic (IP54 / IPX5 waterproof rated)

  • • Handlebar Fitment: 22mm / 7/8‑inch (universal handlebar diameter)

  • • Dimensions (Typical): 69mm (L) × 69mm (W) × 30mm (H) (form factor may vary by model)

  • • Weight (Typical): 30g – 50g

  • • Cable Length (Typical): 130mm – 1800mm (connector and wiring configuration dependent)

3. Features & Interfaces

  • • Throttle Type: Ergonomic thumb‑actuated design; raised anti‑skid surface for precise speed modulation

  • • Sensor Technology: Contactless linear Hall effect sensor (49E type). Virtually wear‑free operation, rated for up to 100,000+ activation cycles

  • • Wiring Interface (Standard 3‑wire or 6‑wire config): Red = +5V DC (Hall sensor power input), Black = GND (battery negative), Green/White = Hall signal OUT (0.8‑4.2V analog voltage). Additional wires for battery level indicator or power switch are available on deluxe models

  • • Connector Type: 3‑pin waterproof connector (51005‑3P type)

  • • Mounting Orientation: Right‑hand or left‑hand handlebar mountable (left/right hand models available)

4. Protection & Environmental Features

  • • Waterproof Rating: IP54 / IPX5 (splash‑proof and weather resistant)

  • • Environmental Durability: UV and corrosion resistant housing; wide operating temperature range

  • • Housing Protection: Non‑slip, waterproof, dust‑resistant throttle assembly
