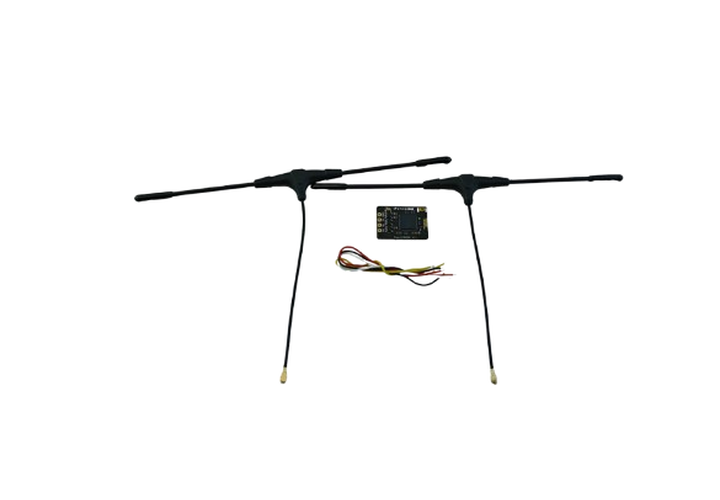

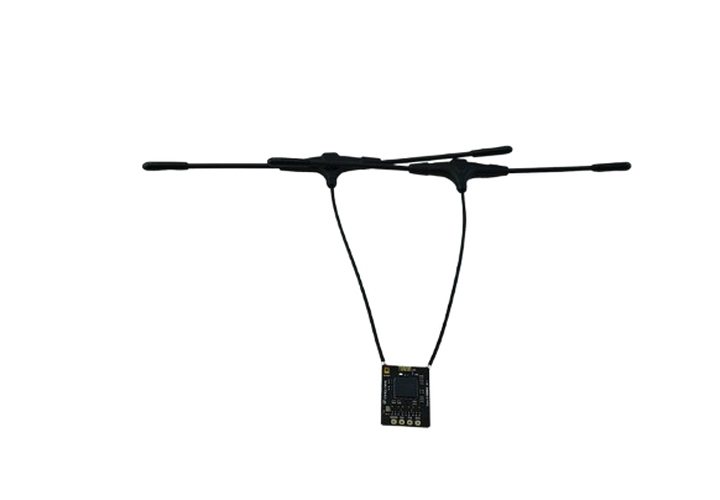

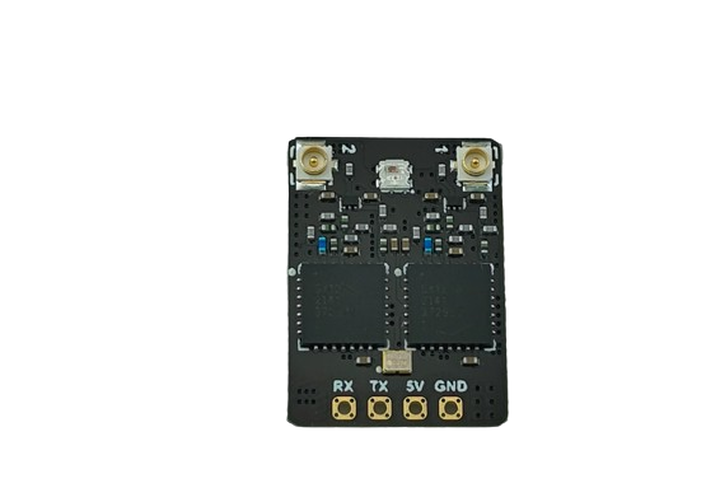

ELRS 915MHz Receiver Dual Antenna

FPV Electronics > VTX & Receiver

$20.90
The ELRS 915MHz Receiver with Dual Antenna leverages the ExpressLRS open-source protocol to deliver ultra-low latency (<10ms) and extended-range communication (10km+) for FPV drones and industrial UAVs.
SKU: 24161
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



ELRS 915MHz Receiver Dual Antenna | Long-Range FPV Drone Receiver Specifications

Description

The ELRS 915MHz Receiver with Dual Antenna leverages the ExpressLRS open-source protocol to deliver ultra-low latency (<10ms) and extended-range communication (10km+) for FPV drones and industrial UAVs. Engineered with true diversity reception and a temperature-compensated crystal oscillator (TCXO), it ensures reliable signal stability in complex environments like urban areas or dense foliage. The compact design and robust RF performance make it ideal for long-range exploration, agricultural surveying, and applications demanding fail-safe control under interference.

1. Main Specifications

ParameterSpecification
ProtocolExpressLRS 3.x (Open Source)
Frequency Band915MHz (FCC) / 868MHz (EU)
Antenna ConfigurationTrue Diversity (Dual IPEX1)
RF ChipESP32-PICO-D4 + SX1276
Dimensions18×25×5.5mm
Weight1.7g (Receiver Only)
Refresh Rate25-200Hz Adjustable
Telemetry Power500mW (Max)
Input Voltage5V DC ±10%
Sensitivity-112dBm @ 500bps
ConnectivityCRSF/SBUS, SH1.0 4-Pin Connector
Firmware UpdatesWiFi OTA (Onboard ESP32)

2. Key Features

  • • True Antenna Diversity: Dual independent RF paths minimize signal dropout

  • • TCXO Stability: ±0.5ppm frequency drift (-40°C to +85°C)

  • • High Telemetry Power: 50mW downlink for robust long-range feedback

  • • Dynamic Frequency Hopping: Auto-shifts across 8 channels (915-928MHz)

  • • Plug-and-Play Installation: Pre-soldered SH1.0 connector

  • • Dual PA+LNA Amplifiers: Enhanced uplink sensitivity and downlink strength

  • • WiFi OTA Updates: Firmware upgrades without physical connections

  • • Fail-Safe Modes: Customizable hold/land/RTH actions

3. Performance Data

Range ConditionPacket RateLatencyMax Speed
<500m (Urban)200Hz2ms150km/h
500m-3km (Suburban)100Hz4ms120km/h
>5km (Open Field)50Hz10ms80km/h
Tested with 915MHz transmitter @ 100mW telemetry power


4. Recommended Applications

🌄 Long-Range FPV

  • • Mountain surfing (>10km range)

  • • Autonomous waypoint missions

🌾 Agricultural UAVs

  • • Crop spraying control systems

  • • Livestock monitoring telemetry

🏗️ Industrial Inspection

  • • Power line/pipeline surveys

  • • Solar farm thermal imaging

🚁 Competitive Freestyle

  • • Obstacle-dense environments

  • • HD digital systems (DJI O3, Walksnail)

⚡ Specialized Use Cases

  • • Swarm robotics (TDMA synchronization)

  • • First responder drone networks

5. Operational & Environmental Characteristics

  • • Operating Voltage: 4.5-5.5V DC

  • • Temp Range: -40°C to +85°C

  • • Power Consumption: 70mA @5V (200Hz) / 25mA @5V (50Hz)

  • • EMI Shielding: Tolerates 6S ESC noise ≤25dBμV

  • • Water Resistance: IP54-equivalent conformal coating

  • • Antenna Placement: Minimum 50mm separation from carbon fiber

  • • Storage Conditions: -30℃ to 60℃ in ESD-safe packaging
