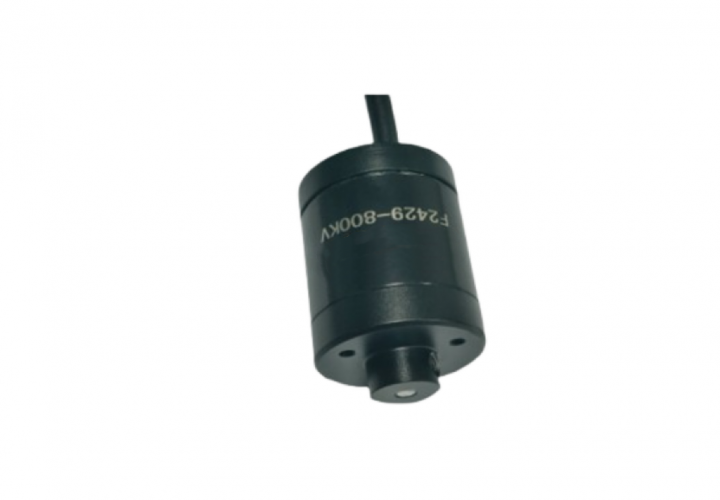

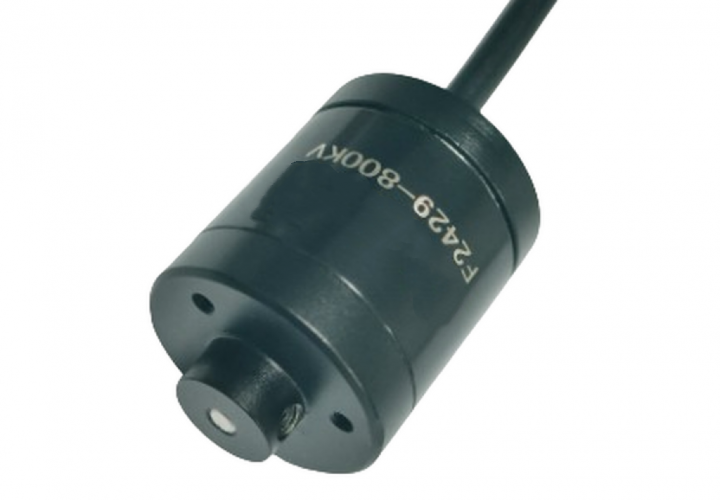

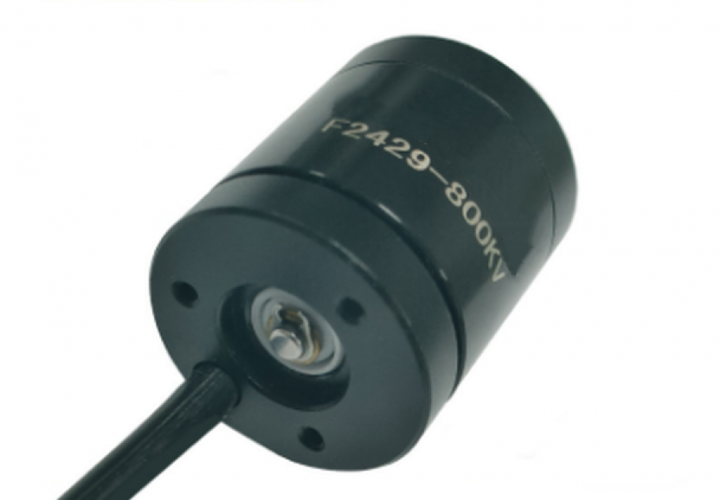

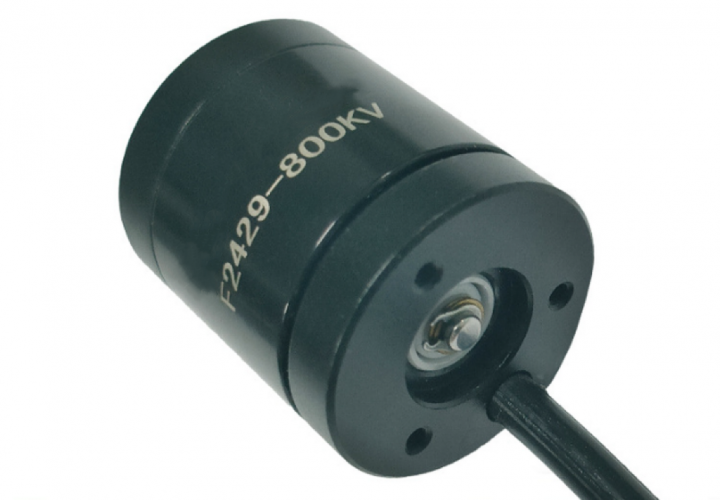

F2429 800KV Pool Cleaning Boat Thruster Waterproof Brushless Motor | Potting Waterproof Brushless Motor Specifications

Descriptions

The F2429 is a high-performance waterproof brushless motor designed for pool cleaning robots and small marine propulsion systems. Utilizing potting waterproof technology and IP68-rated protection, it delivers reliable operation at depths up to 50 meters. Its corrosion-resistant design and efficient torque output make it ideal for underwater robotics, automated pool cleaners, and light-duty marine thrusters.

1. Main Specifications

2. Key Features

• • Potting Waterproofing: Full epoxy resin encapsulation ensures zero water ingress in prolonged submersion.

• • Corrosion Resistance: 316L stainless steel shaft and marine-grade coatings for chlorine/saltwater environments.

• • High Torque Density: Optimized 9-slot/12-pole design achieves 0.35Nm/W efficiency.

• • Low Noise Operation: Precision-balanced rotor reduces vibration (<45dB @ 1m).

• • Modular Mounting: Standardized M6 bolt pattern and quick-release cable connectors.

3. Performance Data

Thrust Efficiency (24V DC Input)

4. Recommended Applications

🏊 Pool Systems:

• • Automated pool cleaning robots

• • Water circulation pump drives

• • Underwater scrubbers

🚤 Marine Systems:

• • Small boat bow thrusters (<500kg displacement)

• • ROV/AUV propulsion units

• • Floating debris collectors

5. Thermal & Environmental

• • Continuous Duty: 65°C @ 100% load (25°C ambient)

• • Peak Tolerance: 85°C (with auto-derating protection)

• • Certifications: CE, RoHS, 1000hr salt spray pass (ASTM B117)
  Note: All data tested in freshwater at 20°C. Saltwater applications require monthly maintenance checks.

•

•
