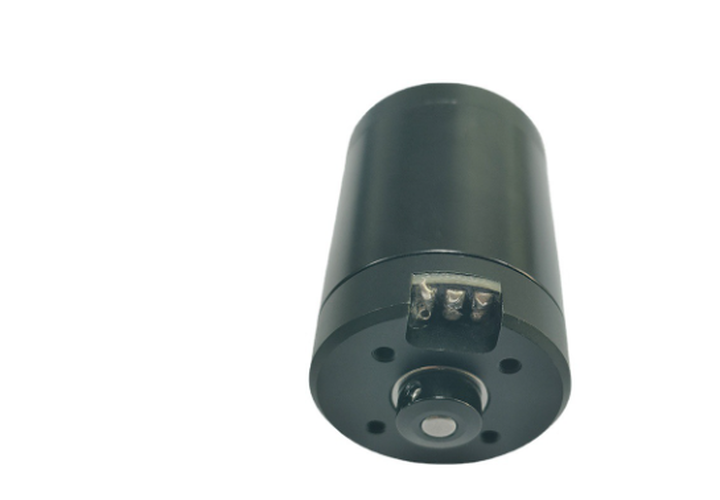

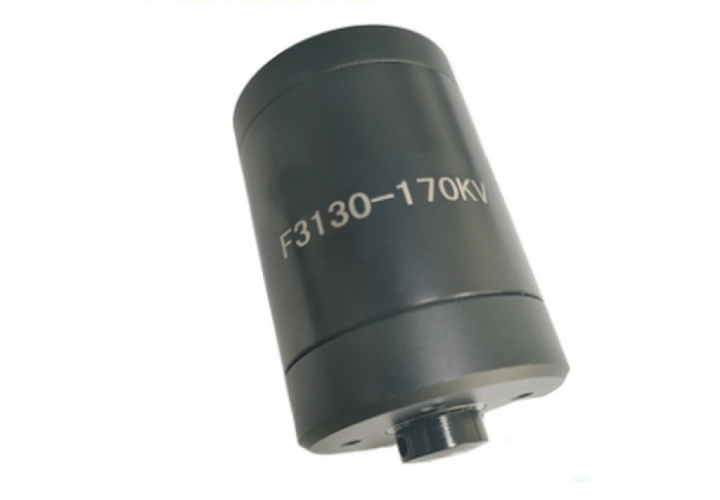

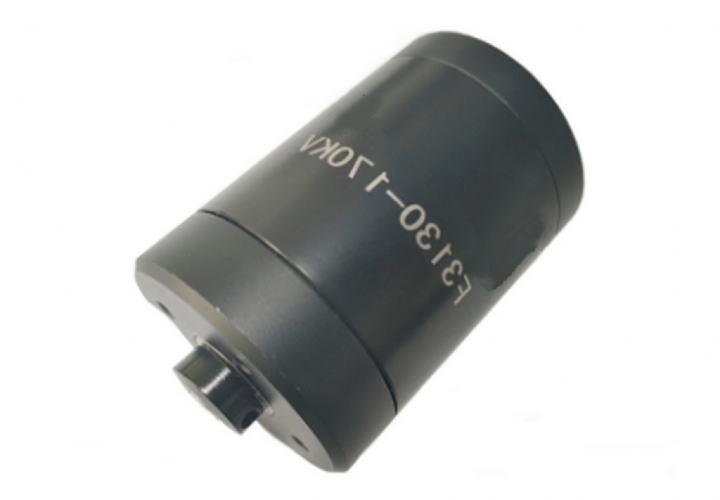

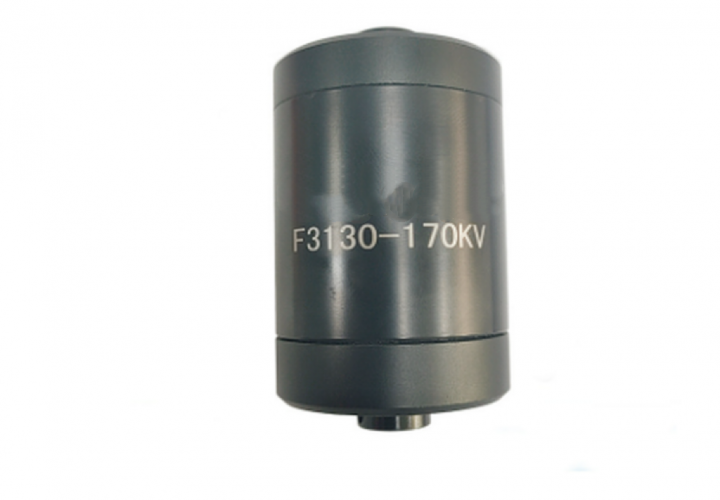

F3130 170KV SeaDrive-Waterproof Brushless Motor

Big Motors > SeaDrive (Underwater/Industrial)

$35.90
The F3130 170KV waterproof brushless motor is designed for low-noise aquatic applications, including fish tank circulation systems, RC boat propulsion, and miniature submarine drives.
SKU: 33041
Package weight: 0.25 KG
IN STOCK
To Wishlist
Add to Cart



F3130 170KV Waterproof Brushless Motor | Aquarium & Marine Toy Motor Specifications

Descriptions

The F3130 170KV waterproof brushless motor is designed for low-noise aquatic applications, including fish tank circulation systems, RC boat propulsion, and miniature submarine drives. Featuring IP68-rated epoxy potting and ultra-compact design, it delivers efficient power output with minimal vibration for sensitive underwater environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP68 (5m Depth, 24hrs Submersion)
Rated Voltage14.8V-22.2V DC
Continuous Power136W @ 14.8V / 175W @ 22.2V
Max Thrust2.5kgf (Forward) / 1.2kgf (Reverse)
Speed Range2480-3200 RPM (PWM Adjustable)
Resistance0.08Ω (Phase-to-Phase)
Shaft Diameter3.17mm (Stainless Steel)
Weight214g

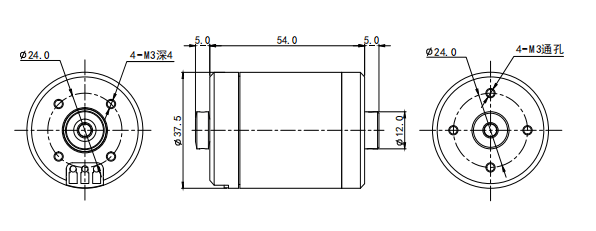

Mounting Pattern20×20mm / 25×25mm

2. Key Features

  • • Silent Operation: Optimized skew rotor design reduces acoustic noise (<30dB @ 0.5m)

  • • Aquarium-Safe: Non-toxic NSF-61 certified potting resin for aquatic life

  • • Corrosion Resistance: Saltwater-proof ceramic bearings and anodized housing

  • • Plug-and-Play: Integrated 2.4GHz ESC (5A continuous) with reverse polarity protection

  • • Low Voltage Optimization: 85% efficiency at 12V for extended battery life

3. Performance Data

Thrust/Power Table (Freshwater @ 20°C)

VoltageNo-Load SpeedMax ThrustCurrent Draw
14.8V2480 RPM1.8kgf10.5A
22.2V3200 RPM2.3kgf13.5A

4. Recommended Applications

🐠 Aquarium Systems:

  • • Fish tank water circulation pumps

  • • Automated feeder agitators

  • • LED light cooling fans

🚤 Marine Toys:

  • • 1/20 scale RC boat thrusters

  • • Submarine dive plane actuators

  • • Floating drone propulsion

5. Thermal Characteristics

  • • Continuous Operation: 50°C @ 25°C ambient

  • • Thermal Protection: Soft-cutoff at 70°C (auto-reset)

  • • Storage Humidity: <95% RH (non-condensing)
    Note: All thrust data measured in still freshwater. Saltwater use requires bi-monthly bearing lubrication.
