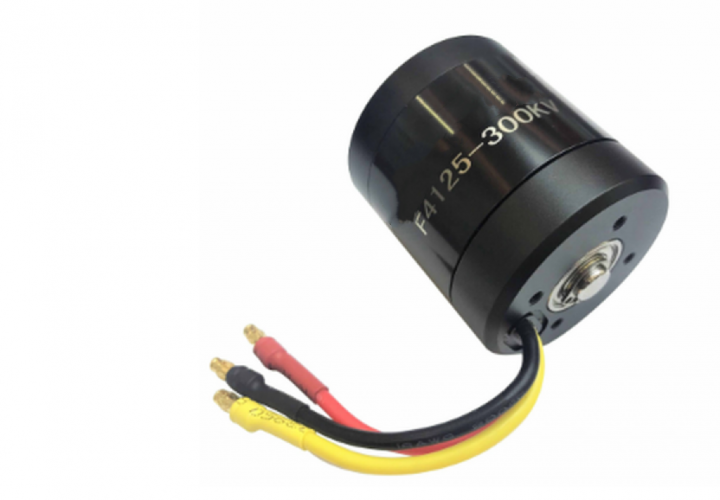

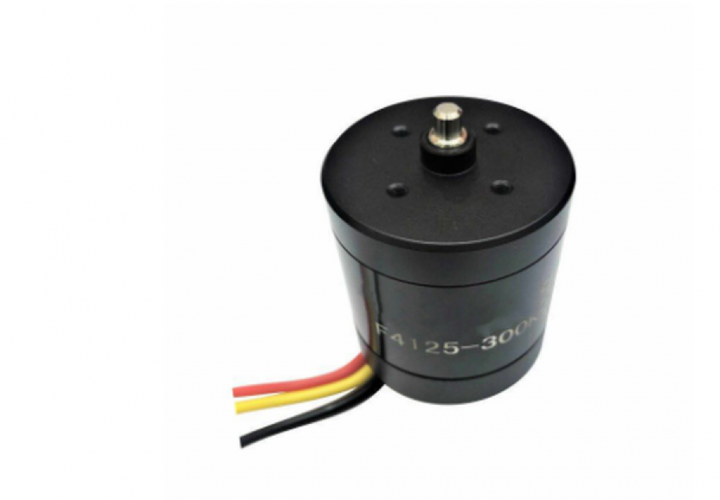

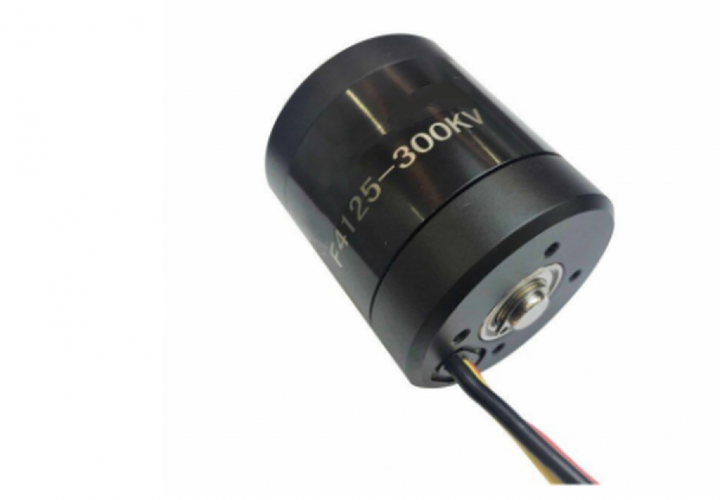

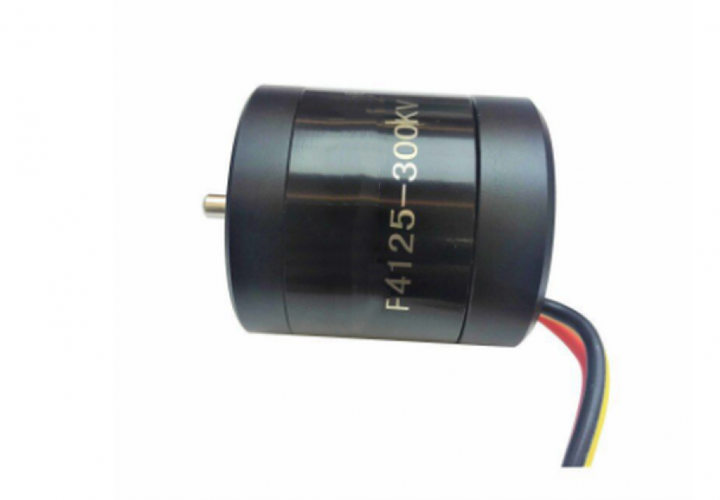

F4125 300KV SeaDrive-Waterproof Brushless Motor

Big Motors > SeaDrive (Underwater/Industrial)

$48.90
The F4125 300KV waterproof brushless motor is designed for ultra-quiet aquatic applications including aquarium circulation systems, RC boat propulsion, and mini submarine drives.
SKU: 33061
Package weight: 0.35 KG
IN STOCK
To Wishlist
Add to Cart



F4125 300KV Waterproof Brushless Motor | Aquarium & Marine Toy Motor Specifications

Descriptions

The F4125 300KV waterproof brushless motor is designed for ultra-quiet aquatic applications including aquarium circulation systems, RC boat propulsion, and mini submarine drives. Featuring IP68-rated epoxy potting and a compact form factor, it delivers smooth power output with near-silent operation for sensitive underwater environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP68 (3m Depth, 24hrs Submersion)
Rated Voltage14.8V-22.2V DC
Continuous Power323W @ 14.8V / 922W @ 22.2V
Max Thrust2.2kgf (Forward) / 1.0kgf (Reverse)
Speed Range4350-7250 RPM (PWM Adjustable)
Resistance0.12Ω (Phase-to-Phase)
Shaft Diameter2.3mm (Stainless Steel)
Weight310g

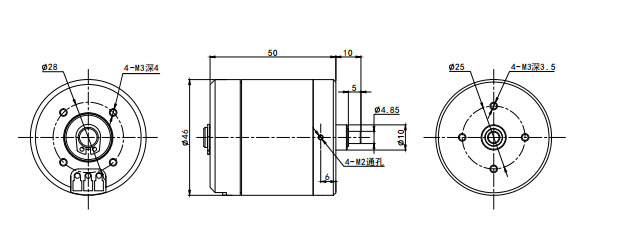

Mounting Pattern15×15mm / 20×20mm

2. Key Features

  • • Silent Operation: Helical skew rotor design reduces noise to <28dB @ 0.5m

  • • Aqua-Safe Construction: FDA-certified non-toxic potting resin for aquatic life

  • • Corrosion Protection: Ceramic shaft bearings + anodized aluminum housing

  • • Plug-and-Play: Integrated 2.4GHz ESC (3A continuous) with reverse protection

  • • Energy Efficient: 88% efficiency at 12V for extended battery runtime

3. Performance Data

Thrust/Power Table (Freshwater @ 25°C)

VoltageNo-Load SpeedMax ThrustCurrent Draw
14.8V4350 RPM1.5kgf0.8A
22.2V7250RPM1.9kgf1.5A

4. Recommended Applications

🐠 Aquarium Systems:

  • • Nano fish tank water circulators

  • • Automatic feeder agitators

  • • Protein skimmer drives

🚤 Marine Toys:

  • • 1/30 scale RC boat thrusters

  • • Mini submarine dive systems

  • • Floating drone stabilizers

5. Thermal Characteristics

  • • Continuous Operation: 45°C @ 25°C ambient

  • • Thermal Protection: Soft-cutoff at 60°C (auto-reset after cooling)

  • • Storage Conditions: -20℃ ~ +60℃, <85% RH
    Note: All performance data measured in static freshwater. Saltwater use requires bi-weekly bearing maintenance.
