F5085 140KV Pool Cleaning Boat Thruster Waterproof Brushless Motor | Potting Waterproof Brushless Motor Specifications

Descriptions

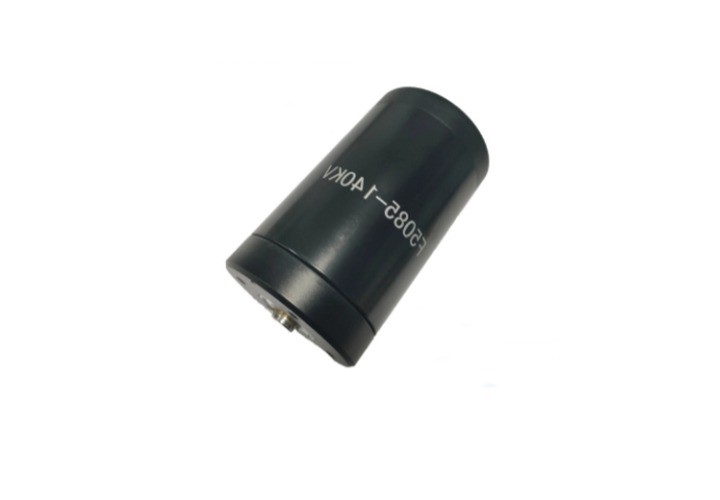

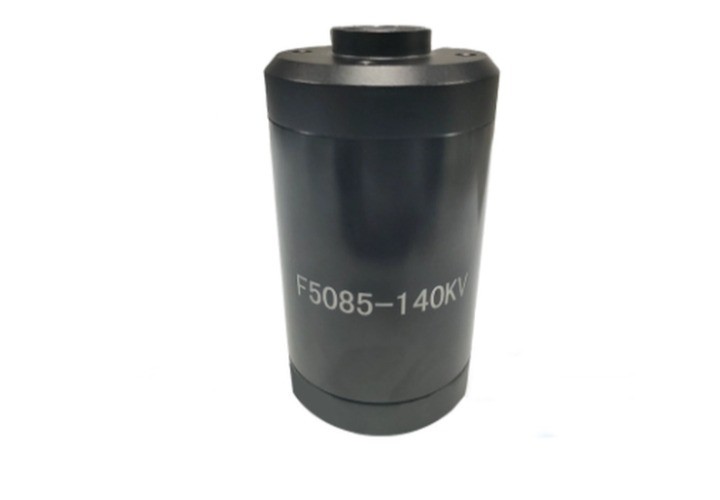

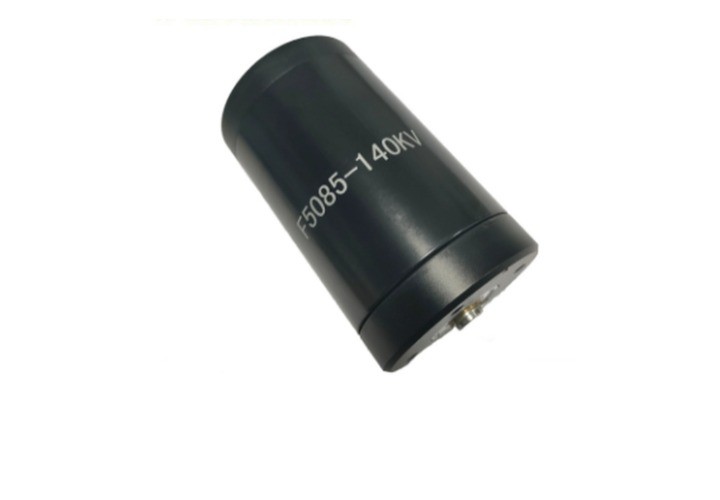

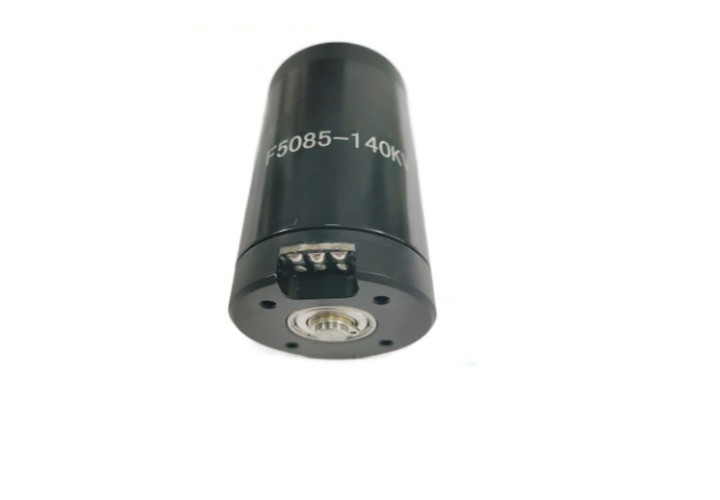

The F5085 is a high-performance waterproof brushless motor designed for pool cleaning vessels and marine thrusters. Featuring IP68K-rated epoxy potting and corrosion-resistant construction, it ensures reliable operation in chlorinated/saltwater environments up to 15 meters depth. Optimized for continuous duty cycles with efficient power delivery and minimal maintenance.

1. Main Specifications

2. Key Features

• • Epoxy Potting: Full encapsulation resists chlorine/saltwater corrosion (50,000hrs lifespan)

• • Low Vibration: Precision-balanced rotor with <0.5mm dynamic runout

• • Smart Control: PWM/RS485 protocol compatibility (±2% speed accuracy)

• • High Torque: 14-pole design delivers 1.8Nm continuous torque @24V

• • Quick Installation: Integrated M5 threaded shaft with anti-rotation keyway

3. Performance Data

Thrust Efficiency (Freshwater @25°C)

*Active cooling required for >80% duty cycle

4. Recommended Applications

🏊 Pool Systems:

• • Autonomous pool cleaning robots (up to 50m² pools)

• • High-flow circulation pumps

• • Underwater scrubbing arm actuators

🚤 Marine Systems:

• • Dock-cleaning thrusters

• • Floating debris collector propulsion

• • Solar-powered skimmer drives

5. Thermal Characteristics

• • Continuous Operation: 65°C @30°C ambient (passive cooling)

• • Thermal Protection: Gradual derating from 75°C, hard cutoff at 95°C

• • Certifications: CE, RoHS, ISO 20653 compliant
  Note: All data validated in pH 7.0-7.8 pool water. Apply anti-corrosion grease monthly for saltwater use.

•

•
