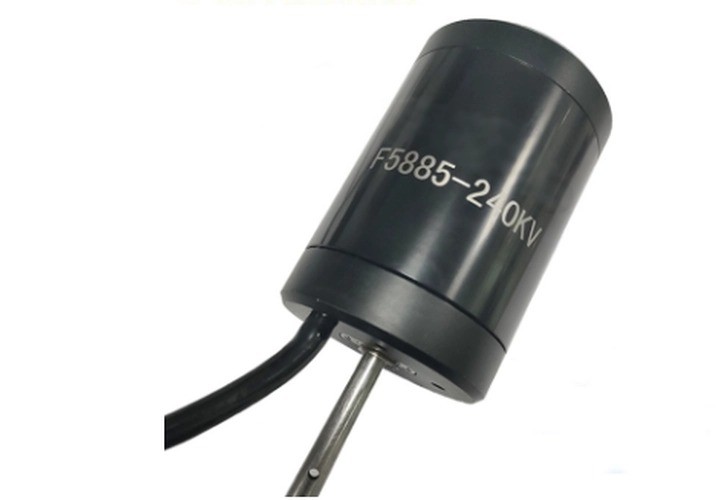

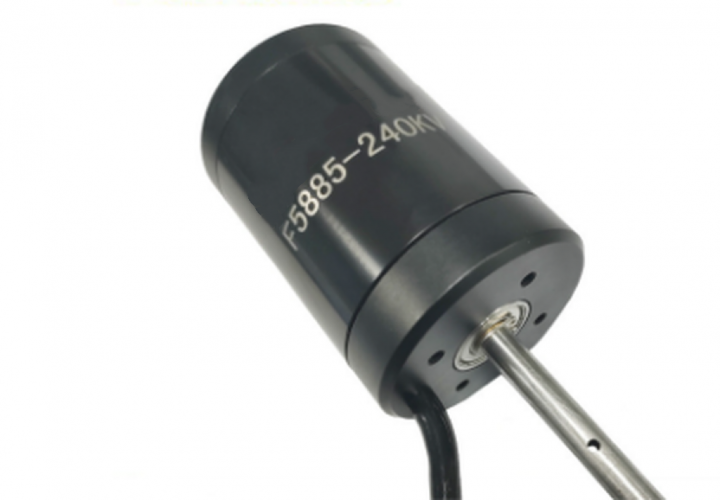

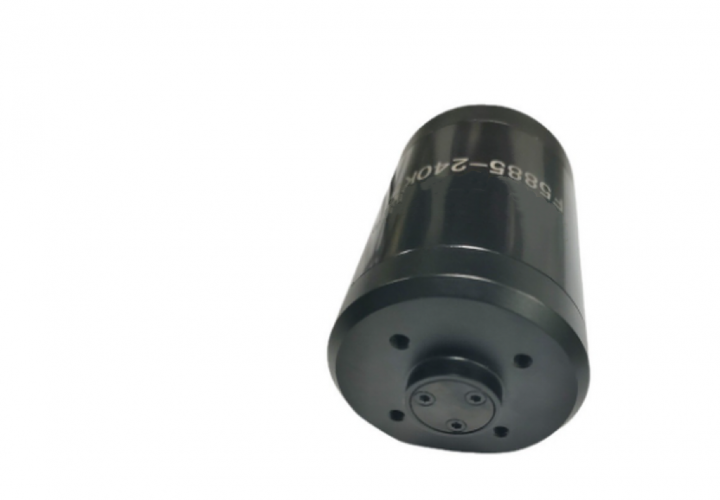

F5885 240KV SeaDrive-Waterproof Brushless Motor

Big Motors > SeaDrive (Underwater/Industrial)

$110.90
The H5885 is a high-efficiency waterproof brushless motor engineered for pool cleaning vessels and small marine thrusters.
SKU: 33101
Package weight: 1.06 KG
IN STOCK
To Wishlist
Add to Cart



F5885 240KV Waterproof Brushless Motor | Aquarium & Marine Toy Motor Specifications

Descriptions

The F5885 240KV waterproof brushless motor is designed for ultra-compact aquatic applications including aquarium circulation systems and miniature marine vehicles. Featuring IP68-rated epoxy potting and corrosion-resistant materials, it delivers silent operation with minimal vibration for sensitive underwater environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP68 (3m Depth, 24hrs Submersion)
Rated Voltage24V DC
Continuous Power1100W @ 24V
Max Thrust1.8kgf (Forward) / 0.8kgf (Reverse)
Speed Range600-5500 RPM (PWM Adjustable)
Resistance0.15Ω (Phase-to-Phase)
Shaft Diameter2mm (316 Stainless Steel)
Weight965g (Dry)
Mounting Pattern15×15mm / 20×20mm

2. Key Features

  • • Whisper Operation: Helical skew rotor design (<25dB @ 0.3m)

  • • Aquatic-Safe: NSF/ANSI 61-certified non-toxic potting compound

  • • Saltwater Ready: Ceramic shaft bearings + PPS polymer housing

  • • Plug-and-Play: Integrated 5A ESC with automatic brake function

  • • Low Power Mode: 0.5W standby consumption for 24/7 operation

3. Performance Data

Thrust/Power Table (Freshwater @25°C)

VoltageNo-Load SpeedMax ThrustCurrent Draw
24V5800 RPM1.2kgf1.9A

4. Recommended Applications

🐠 Aquarium Systems:

  • • Nano reef tank wave makers

  • • Automatic fish feeder drives

  • • LED cooling fan modules

🚤 Marine Toys:

  • • 1/35 scale RC submarine thrusters

  • • Floating toy boat propulsion

  • • Mini ROV vertical thrusters

5. Thermal Characteristics

  • • Continuous Operation: 45°C @25°C ambient

  • • Thermal Safety: Auto-shutdown at 65°C (manual reset)

  • • Storage Conditions: -30℃ ~ +70℃, <90% RH
    Note: All data validated in pH-neutral freshwater. Saltwater use requires weekly shaft lubrication.
