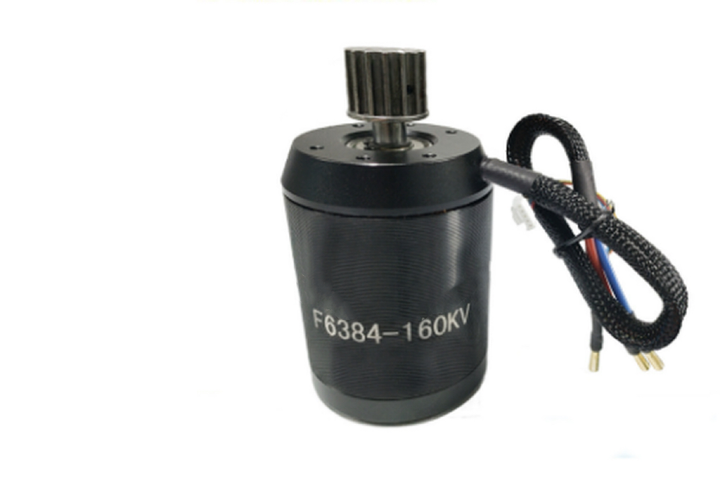

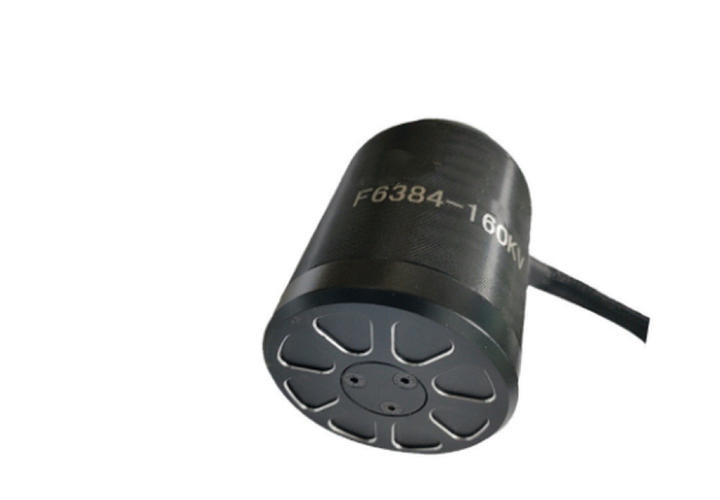

F6384 160KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$99.90
The F6384 160KV brushless motor delivers robust performance for both two-wheel and four-wheel electric scooters.
SKU: 32121
Package weight: 1.16 KG
IN STOCK
To Wishlist
Add to Cart



F6384 160KV Brushless Motor | 2 & 4-Wheel Electric Scooter Motor Specifications

Descriptions

The F6384 160KV brushless motor delivers robust performance for both two-wheel and four-wheel electric scooters. Engineered with a reinforced stator and optimized cooling system, it provides high torque density and thermal stability for demanding urban mobility applications. The motor's dual-bearing shaft and vibration-damped construction ensure smooth operation across varied terrain conditions.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP66 (Dust/High-Pressure Water)
Rated Voltage36/48V DC (16S Li-ion)
Continuous Power1050W @ 48V (Peak 5400W)
Max Torque45Nm (Peak) / 28Nm (Continuous)
Speed Range5650-7500 RPM (FOC Adjustable)
KV Rating160 RPM/V
Phase Resistance0.018Ω (Phase-to-Phase)
Shaft Diameter10mm (Hardened Steel, Keyed)
Weight1050g
Mounting100mm PCD Flange (6x M8 Holes)

2. Key Features

  • • Dual-Cooling Architecture: Radial vents + internal air channels (40W/K dissipation)

  • • Reinforced Construction: Stamped steel end caps with vibration-damping mounts

  • • Terrain Optimization: Electronic traction control via CAN bus interface

  • • Regenerative Braking: Recovers up to 20% energy with configurable intensity

  • • All-Weather Protection: Nano-sealed windings + corrosion-resistant hardware

3. Performance Data

Load Performance (60V @25°C)

InclineSpeedTorqueEfficiencyRange*
0%35km/h18Nm92%55km
10%22km/h32Nm87%38km
20%12km/h42Nm82%28km
*Based on 20Ah battery at 75kg payload



4. Recommended Applications

🛴 Two-Wheel Scooters

  • • High-speed commuter scooters

  • • Off-road electric scooters

  • • Delivery rider scooters

⚡Four-Wheel Scooters

  • • Compact urban quad scooters

  • • Mobility scooters for adults

  • • Industrial site utility vehicles

⚡ Heavy-Duty Mobility

  • • Cargo scooter powertrains

  • • Airport luggage transporters

  • • Golf course maintenance vehicles

5. Thermal Characteristics

  • • Continuous Operation: 70°C @25°C ambient (Class H insulation)

  • • Thermal Management: Temperature-controlled fan (auto-engage >50°C)

  • • Protection System: Progressive throttle reduction at 85°C → cutoff at 105°C

  • • Storage Conditions: -30℃ ~ +100℃, <90% RH

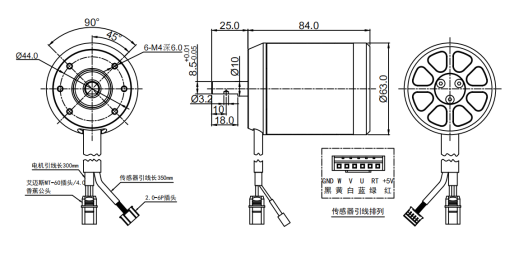

F6384 160KV (2).png

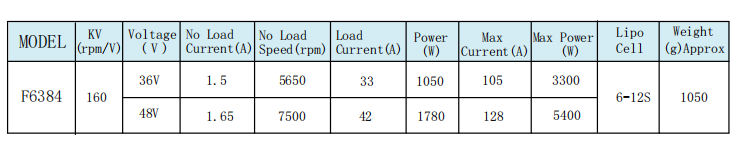

F6384 160KV (1).png
