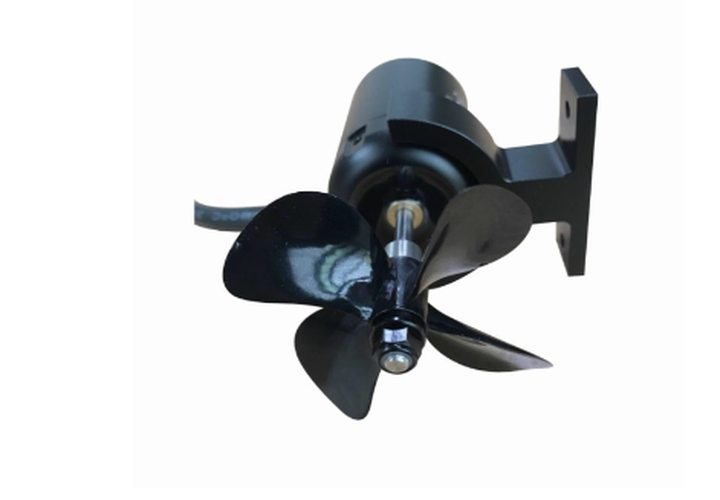

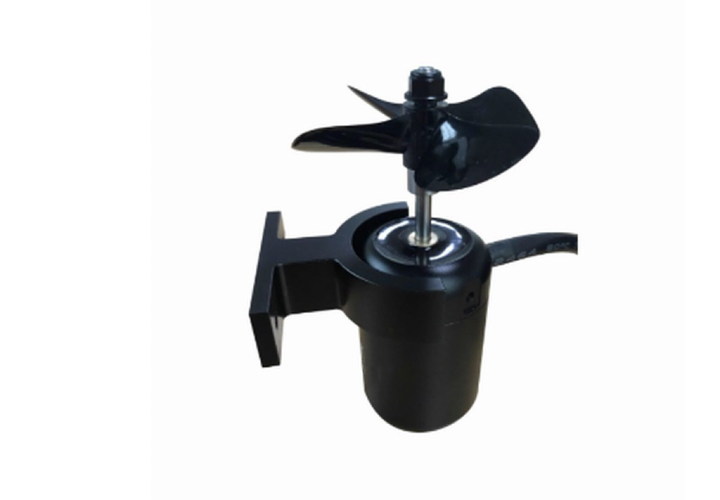

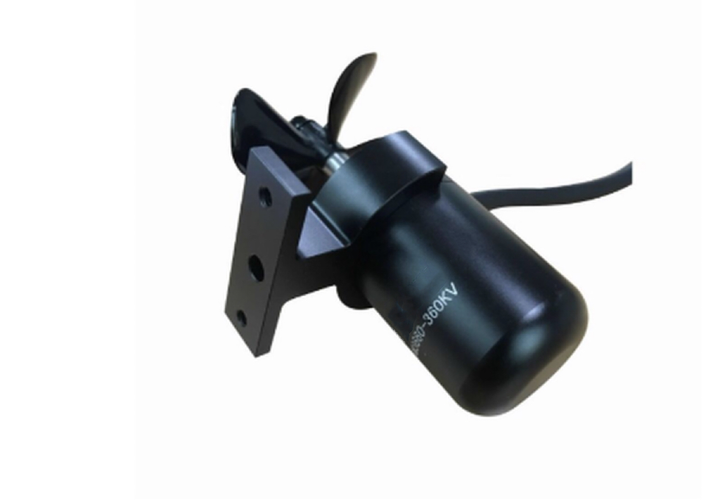

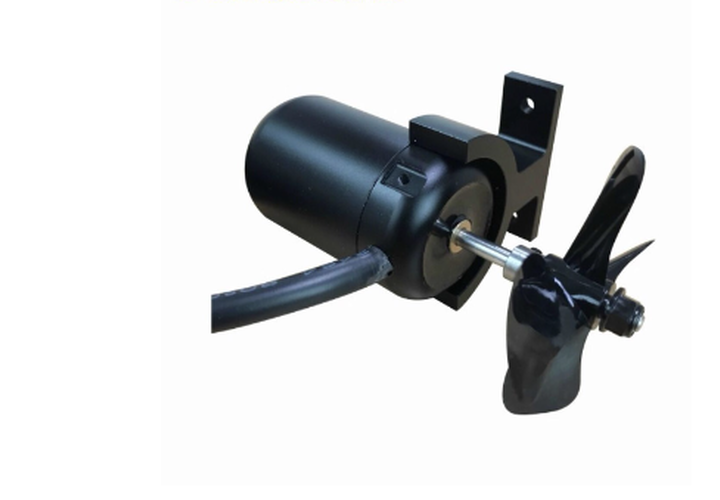

FSM3660 360 Waterproof Brushless Motor | Propeller-Driven Underwater Thruster Motor Specifications

Descriptions

The FSM3660 is a high-thrust waterproof brushless motor engineered for professional underwater propulsion systems. With IP68K submersible protection and marine-grade construction, it delivers robust bidirectional thrust for ROVs, AUVs, and heavy-duty aquatic robotics. Features corrosion-resistant titanium components and precision hydrodynamic optimization.

1. Main Specifications

2. Key Features

• • Deep-Sea Durability: Laser-welded pressure vessel with double O-ring seals

• • Saltwater Immunity: Ceramic-coated windings & zirconium alloy bearings

• • Smart Propulsion: Integrated CAN FD interface for thruster cluster control

• • High Torque Density: 14-pole rotor design achieves 2.1Nm/kg torque-to-weight ratio

• • Active Cooling: Seawater-cooled stator chamber with sacrificial anode

3. Performance Data

Thrust/Power Table (Seawater @ 10°C)

4. Recommended Applications

🤿 Underwater Robotics:

• • 2000m-rated ROV main thrusters

• • Seabed crawler propulsion units

• • Underwater docking station actuators

🚤 Marine Systems:

• • Dynamic positioning (DP) tunnel thrusters

• • Offshore platform stabilization drives

• • Unmanned surface vessel (USV) propulsion

5. Thermal Characteristics

• • Continuous Operation: 75°C @ 40°C ambient (passive cooling)

• • Overload Protection: 3-stage thermal derating (85°C/95°C/105°C)

• • Certifications: DNV-ST-0378, ABS Underwater Machinery Approval
  Note: All thrust data measured in 3.5% salinity seawater at 5m/s flow. Requires quarterly anti-biofouling treatment in tropical waters.

•

•
