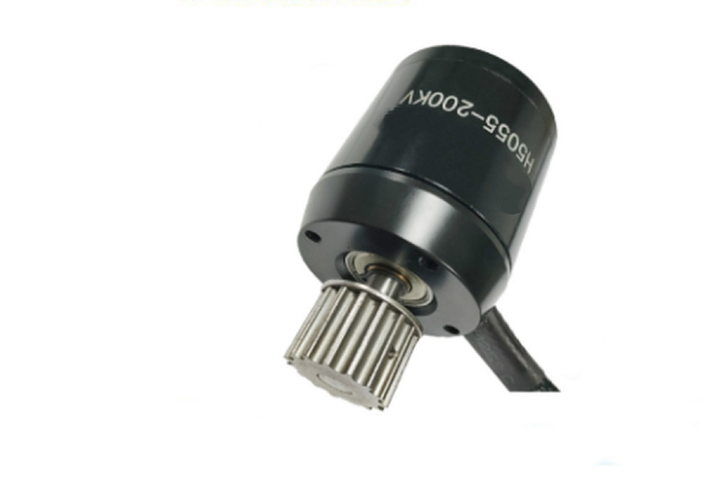

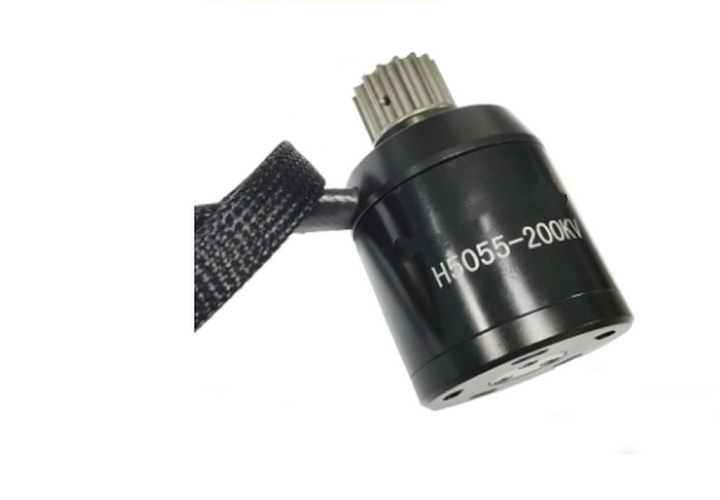

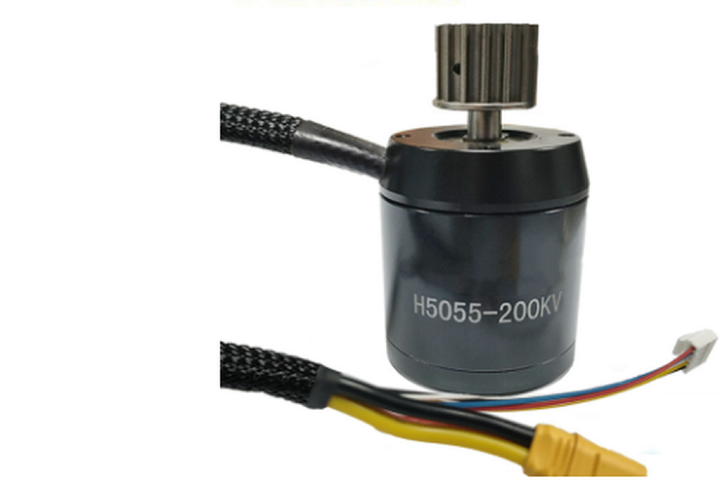

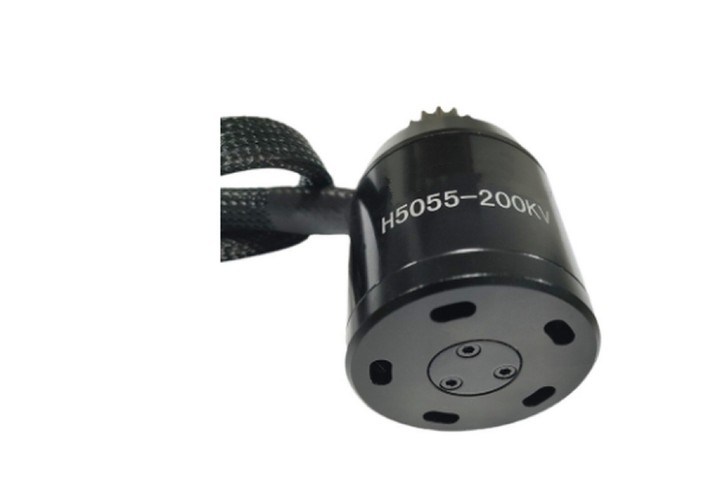

H5055 200KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$52.90
The H5055 200KV brushless motor features a revolutionary shaftless design optimized for RC vehicles and direct-drive electric scooters.
SKU: 32061
Package weight: 0.52 KG
IN STOCK
To Wishlist
Add to Cart



H5055 200KV Brushless Motor | RC Vehicle & Shaftless E-Scooter Motor Specifications

Descriptions

The H5055 200KV brushless motor features a revolutionary shaftless design optimized for RC vehicles and direct-drive electric scooters. With its integrated rotor-can architecture and high-torque density, it delivers exceptional power-to-weight ratio while eliminating traditional shaft failure points. The motor's balanced electromagnetic design ensures vibration-free operation in high-RPM applications.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP65 (Dust/Water Jet Protected)
Rated Voltage36V (12S LiPo)
Continuous Power1900W @ 36V (Peak 4800W)
Max Torque4.8Nm (Peak) / 3.2Nm (Continuous)
Speed Range5050-10000 RPM (ESC Adjustable)
KV Rating140/200/280 RPM/V
Phase Resistance0.008Ω (Phase-to-Phase)
Shaft DesignShaftless Rotor-Can System
Weight475g
MountingM5 Threaded (6-point radial)

2. Key Features

  • • Direct-Drive Hub: Integrated flange accepts 76-80mm wheels for e-scooters

  • • Zero-Cogging Technology: Skewed stator slots + segmented magnets

  • • Thermal Management: Copper-beryllium end rings conduct heat to outer casing

  • • Crash Protection: Spring-loaded rotor decoupler prevents magnet damage

  • • Water Cooling: Optional liquid jacket (max 2L/min flow rate)

3. Performance Data

Power Band (44.4V @25°C)

RPM RangeEfficiencyMax Continuous Power
10k-20k94%1000W
20k-30k91%1380W
30k-38k87%1900

4. Recommended Applications

🚗 RC Vehicles

  • • 1/8 scale buggy/truggy powertrains

  • • High-speed RC boat propulsion

  • • Competition drone racing motors

🛴 Shaftless E-Scooters

  • • Hub-motor conversion kits

  • • Lightweight folding scooters

  • • All-terrain skateboard drives

⚙️ Industrial Models

  • • Conveyor system demonstrators

  • • Architectural model drives

  • • Automated guided vehicle (AGV) wheels

5. Thermal Characteristics

  • • Continuous Duty: 70°C @25°C ambient (with forced air cooling)

  • • Thermal Protection: KTY83-series sensor with dynamic current limiting

  • • Storage Conditions: -30℃ ~ +85℃, <80% RH

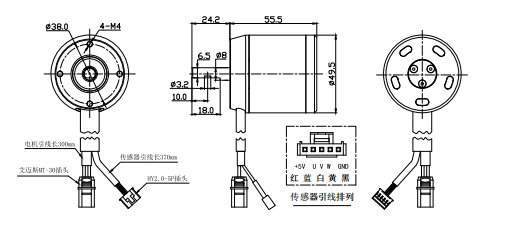

H5055 200KV (2).png

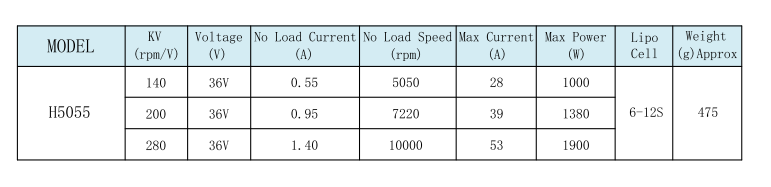

H5055 200KV (1).png
