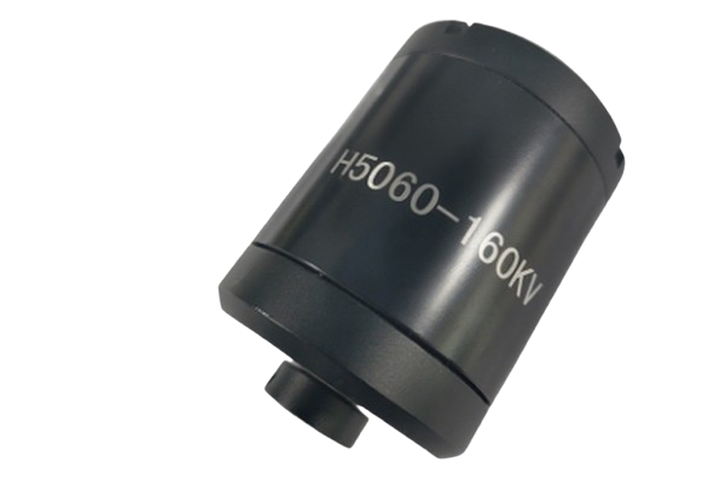

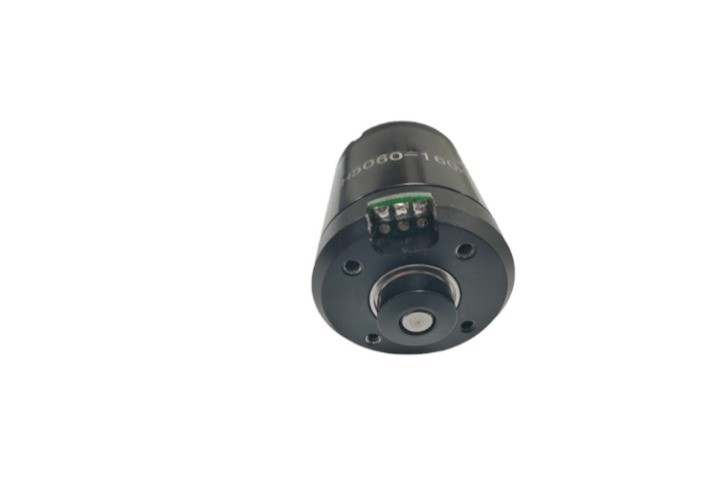

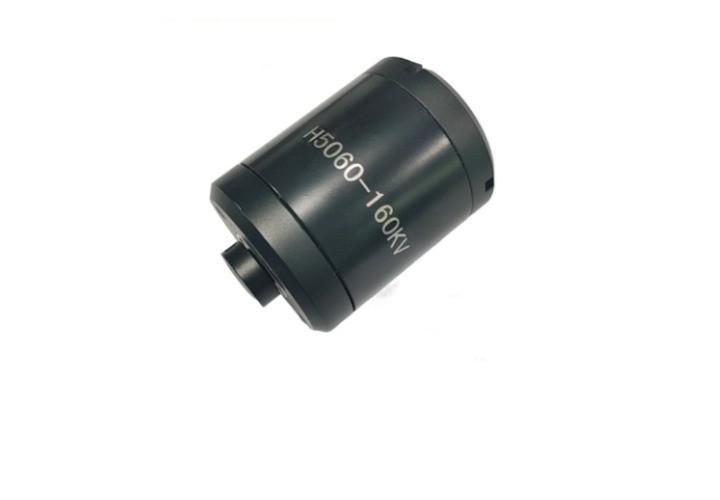

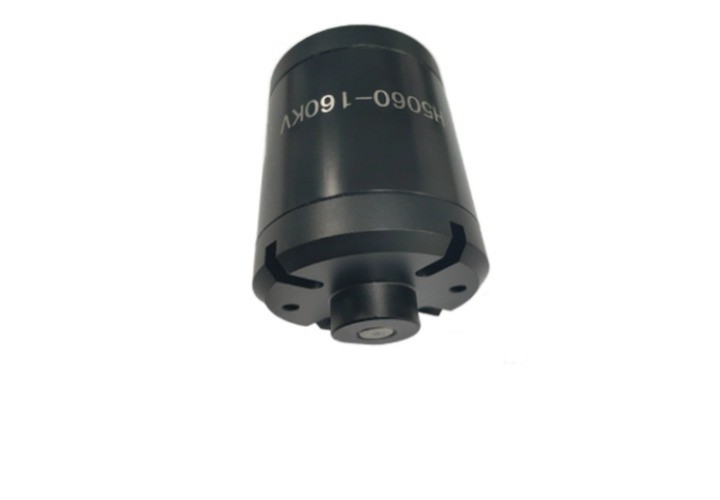

H5060 160KV SeaDrive-Waterproof Brushless Motor

Big Motors > SeaDrive (Underwater/Industrial)

$50.90
The H5060 160KV is a high-efficiency waterproof brushless motor engineered for pool cleaning vessels and small marine thrusters.
SKU: 33071
Package weight: 0.55 KG
IN STOCK
To Wishlist
Add to Cart



H5060 160KV Pool Cleaning Boat Thruster Waterproof Brushless Motor | Potting Waterproof Brushless Motor Specifications

Descriptions

The H5060 is a high-efficiency waterproof brushless motor engineered for pool cleaning vessels and small marine thrusters. Utilizing epoxy resin potting technology with IP68 protection, it ensures reliable operation in submerged environments up to 10 meters depth. Optimized for low-vibration power delivery in chlorinated and saltwater applications.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP68 (10m Depth, 48hrs Submersion)
Rated Voltage22.2V DC
Continuous Power980W @ 22.2V / 1150W @ 22.2V
Max Thrust6.5kgf (Forward) / 3.0kgf (Reverse)
Speed Range3520-4570 RPM (Adjustable via PWM)
Resistance0.035Ω (Phase-to-Phase)

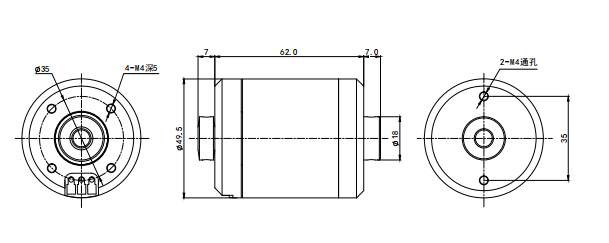

Shaft Diameter5mm (316 Stainless Steel)
Weight485g (Including Cables)
Mounting Pattern30×30mm / 40×40mm

2. Key Features

  • • Full Potting Protection: Epoxy-encapsulated stator prevents chemical corrosion in pools

  • • Low Maintenance Design: Ceramic bearings + PTFE-coated windings (50,000hrs MTBF)

  • • Precision Control: Hall sensor feedback for 0.1RPM resolution

  • • Compact Integration: Unified housing with dual O-ring cable gland (PG11 standard)

  • • Energy Efficient: 92% peak efficiency with FOC vector control

3. Performance Data

Thrust Efficiency (Freshwater @ 25°C)

VoltageNo-Load SpeedMax ThrustPower Draw
22.2V3520 RPM4.8kgf52A
22.2V4570 RPM6.5kgf61A

*Requires active cooling system

4. Recommended Applications

🏊 Pool Systems:

  • • Autonomous pool cleaning robots

  • • Water circulation pump drives

  • • Pool skimmer propulsion units

🚤 Marine Systems:

  • • Small pontoon boat thrusters

  • • Floating debris collector drives

  • • Dock cleaning robot actuators

5. Thermal Characteristics

  • • Continuous Operation: 60°C @ 30°C ambient (natural convection)

  • • Overload Protection: Thermal cutoff at 85°C (auto-recovery)

  • • Certifications: CE, RoHS, 500hr salt spray test passed
    Note: All data tested in pH 7.2-7.6 pool water. Saltwater applications require monthly anode replacement.
