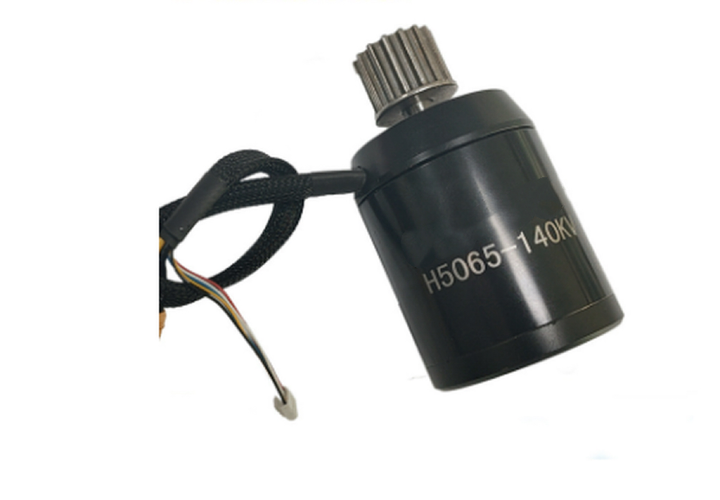

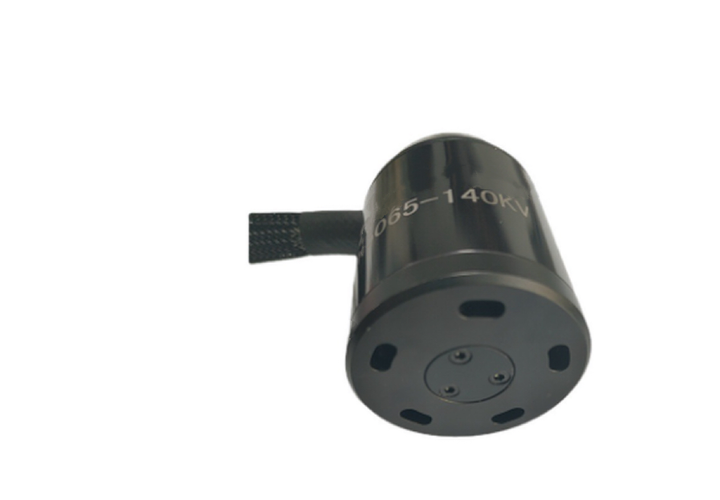

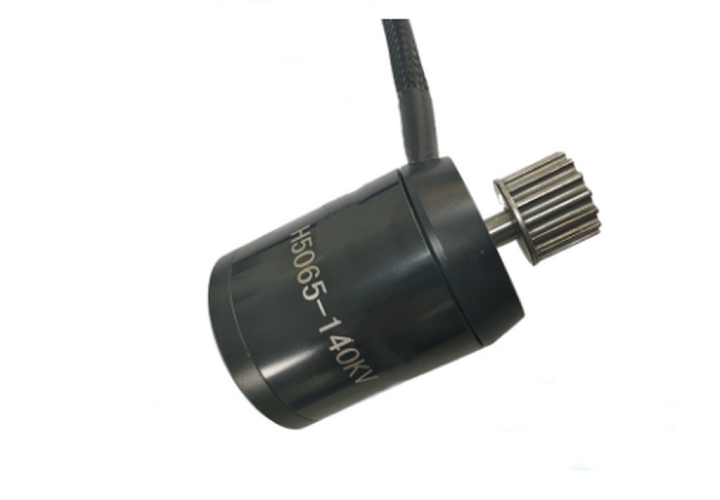

H5065 140KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$57.90
The H5065 140KV sensored brushless motor is engineered for high-torque electric scooter applications.
SKU: 32081
Package weight: 0.61 KG
IN STOCK
To Wishlist
Add to Cart



H5065 140KV Brushless Motor | Electric Scooter Hub Motor Specifications

Descriptions

The H5065 140KV sensored brushless motor is engineered for high-torque electric scooter applications. Featuring Hall-effect sensors and a direct-drive hub design, it delivers smooth sinusoidal control with exceptional thermal management. The motor's waterproof construction and reinforced axle provide reliable performance in urban commuting environments with vibration-damped operation for rider comfort.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensored BLDC
Protection RatingIP67 (Dust/Immersion Protected)
Rated Voltage36VDC
Continuous Power1200W @ 36V (Peak 1650W)
Max Torque42Nm (Peak) / 28Nm (Continuous)
Speed Range5200-7220 RPM (FOC Adjustable)
KV Rating140/200 RPM/V
Phase Resistance0.08Ω (Phase-to-Phase)
Axle Design12mm Hardened Steel (Keyed)
Weight480g
Mounting135mm Hub Flange (6-bolt pattern)

2. Key Features

  • • Precision Sensing: Triple redundant Hall sensors with 120° spacing for smooth startup

  • • Torque Optimization: Field-oriented control (FOC) compatible with <3% torque ripple

  • • Thermal Management: Aluminum heat-sink fins + ferrofluid cooling channels

  • • Regenerative Braking: Recovers up to 18% energy during deceleration

  • • Vibration Control: Dynamic rotor balancing compensates for wheel imperfections

3. Performance Data

Torque/Efficiency Map (52V @25°C)

RPMTorqueEfficiencyPower Output
14038Nm92%1200W
20030Nm94%1650W

4. Recommended Applications

🛴 Electric Scooters

  • • 10"-12" hub motor commuter scooters

  • • Dual-motor off-road scooters

  • • Foldable scooter conversion kits

🚲 Light E-Vehicles

  • • Power-assist cargo trikes

  • • Self-balancing electric unicycles

  • • Mobility scooter drives

🏍️ Urban Mobility

  • • Last-mile delivery robots

  • • Compact electric mopeds

  • • Shared scooter fleets

5. Thermal Characteristics

  • • Continuous Operation: 65°C @25°C ambient (Class H insulation)

  • • Thermal Protection: Dual NTC sensors with progressive throttle-back

  • • Cooling Requirements: Natural convection (forced air recommended >800W)

  • • Storage Conditions: -30℃ ~ +85℃, <90% RH

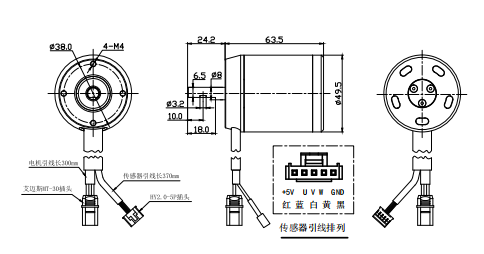

H5065 140KV (2).png

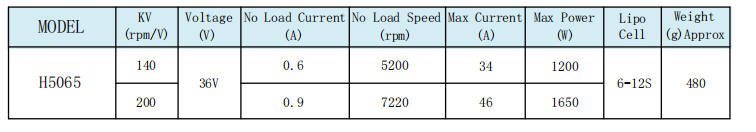

H5065 140KV (1).png
