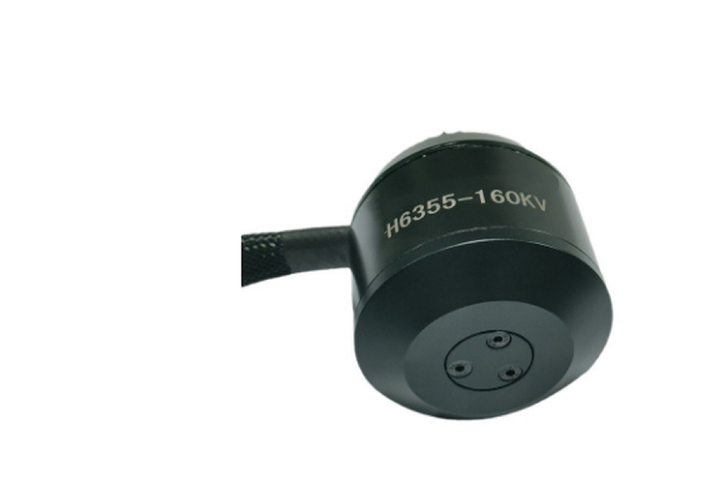

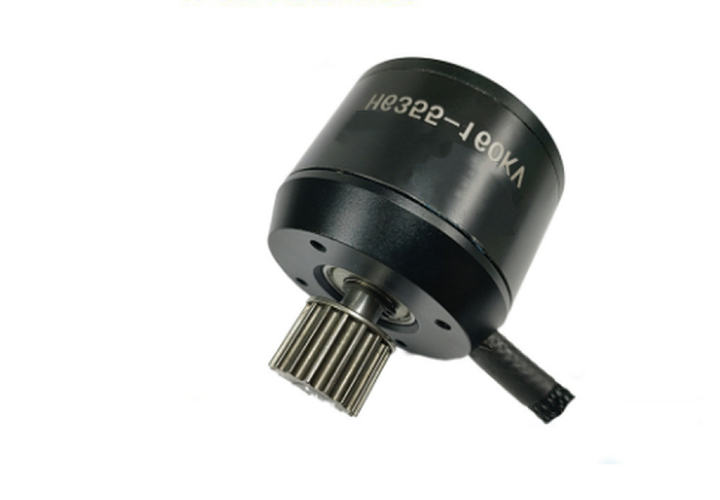

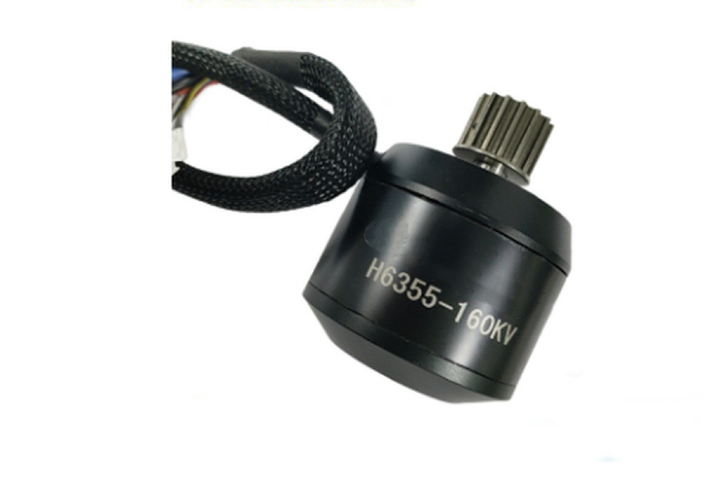

H6355 160KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$68.90
The H6355 160KV sensored brushless motor combines high-torque density and precision control for electric scooters and professional power tools.
SKU: 32091
Package weight: 0.63 KG
IN STOCK
To Wishlist
Add to Cart



H6355 160KV Brushless Motor | E-Scooter & Power Tool Motor Specifications

Descriptions

The H6355 160KV sensored brushless motor combines high-torque density and precision control for electric scooters and professional power tools. Featuring Hall-effect sensors and a reinforced core structure, it delivers smooth sinusoidal operation with exceptional thermal performance. The motor's dual-cooling architecture maintains stability during continuous high-load applications while its corrosion-resistant construction ensures durability in demanding environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensored BLDC
Protection RatingIP65 (Dust/Water Jet Protected)
Rated Voltage36V (12S LiPo)
Continuous Power1360W @ 36V (Peak 2580W)
Max Torque6.8Nm (Peak) / 4.2Nm (Continuous)
Speed Range5020-10200 RPM (FOC Adjustable)
KV Rating140/220/280 RPM/V
Phase Resistance0.015Ω (Phase-to-Phase)
Shaft Diameter5mm (S7 Tool Steel, Keyed)
Weight572g
Mounting25×25mm / M4 Threads (4-point)

2. Key Features

  • • Precision Control: Triple Hall sensors with 0.1° timing accuracy

  • • Dual-Cooling System: Radial vents + axial airflow channels (35W/K dissipation)

  • • Impact Protection: Spring-loaded rotor decoupler prevents magnet displacement

  • • Regenerative Braking: Energy recovery up to 22% during deceleration

  • • Smart Interface: CAN bus connectivity for real-time telemetry monitoring

3. Performance Data

Power/Efficiency Curve (44.4V @25°C)

RPMTorqueEfficiencyPower Output
50204.0Nm92%1360W
79003.2Nm89%2050W
101002.0Nm83%2580W

4. Recommended Applications

🛴 Electric Scooters

  • • High-performance hub motors (8"-10" wheels)

  • • Dual-motor racing scooters

  • • Mountain terrain electric skateboards

🔧 Power Tools

  • • Professional angle grinders

  • • Cordless circular saws

  • • High-torque impact wrenches

⚙️ Industrial Systems

  • • Conveyor belt drives

  • • Automated packaging equipment

  • • Robotic arm joint actuators

5. Thermal Characteristics

  • • Continuous Operation: 70°C @25°C ambient (with forced airflow)

  • • Thermal Protection: KTY84-130 sensor with step-throttling at 85°C

  • • Cooling Requirements: Minimum 5m/s airflow for peak performance

  • • Storage Conditions: -40℃ ~ +105℃, <80% RH

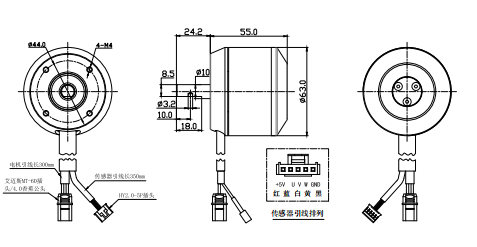

H6355 160KV (1).png

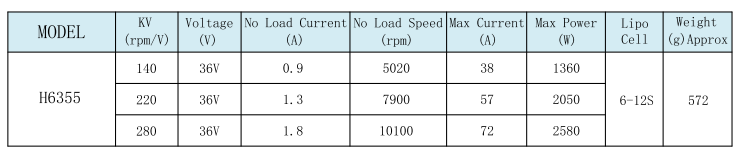

H6355 160KV (2).png
