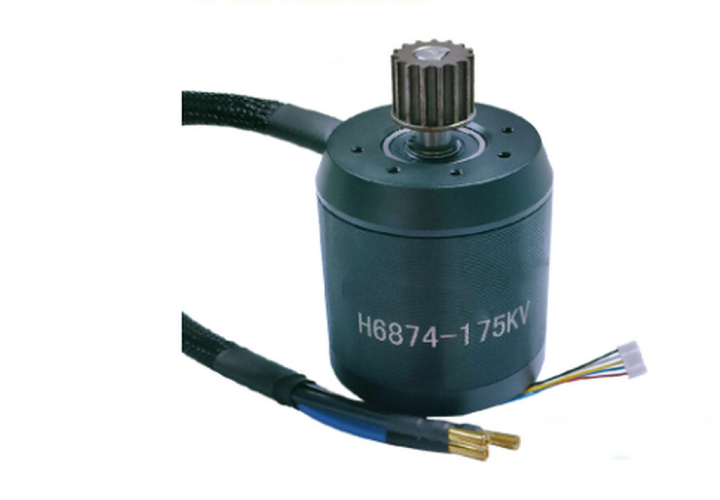

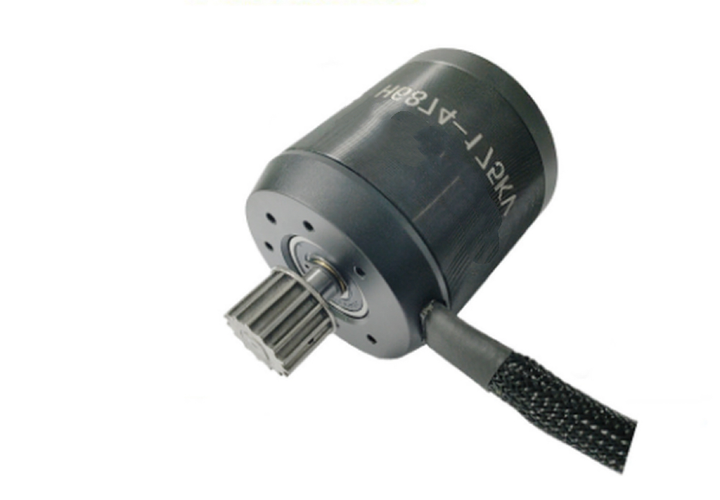

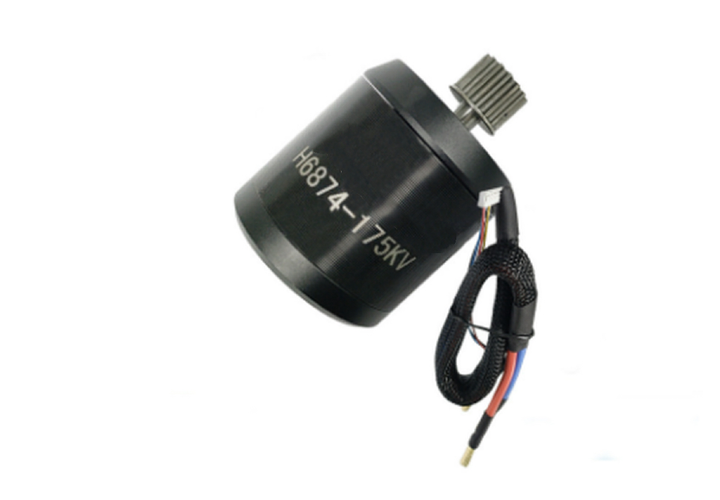

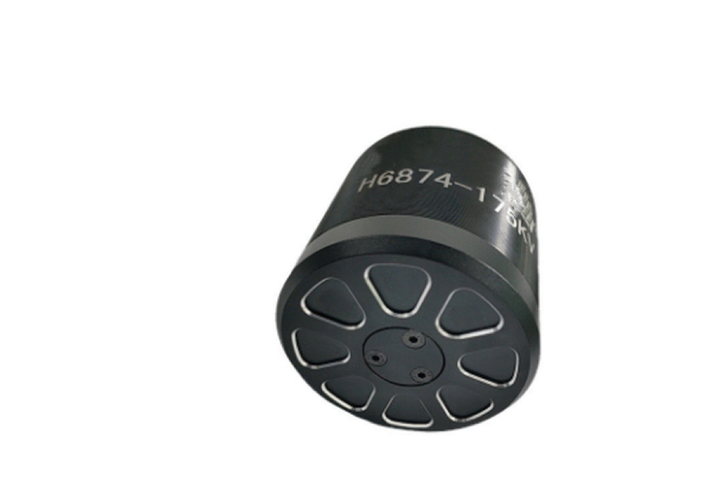

H6874 175KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$138.90
The H6874 175KV brushless motor delivers extreme torque density for heavy-duty four-wheel scooters and power-assist vehicles.
SKU: 32131
Package weight: 1.19 KG
IN STOCK
To Wishlist
Add to Cart



H6874 175KV Brushless Motor | High-Torque 4-Wheel Scooter & Power-Assist Motor Specifications

Descriptions

The H6874 175KV brushless motor delivers extreme torque density for heavy-duty four-wheel scooters and power-assist vehicles. Engineered with a dual-stator design and liquid cooling capability, it provides unparalleled power output while maintaining thermal stability. The motor's reinforced construction withstands continuous high-load operations, making it ideal for commercial-grade mobility solutions and steep terrain applications.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensored BLDC
Protection RatingIP68 (Dust/Immersion Protected)
Rated Voltage36/48V DC (20S Li-ion)
Continuous Power2180W @ 48V (Peak 6200W)
Max Torque120Nm (Peak) / 85Nm (Continuous)
Speed Range6350-8420 RPM (FOC Adjustable)
KV Rating175 RPM/V
Phase Resistance0.006Ω (Phase-to-Phase)
Shaft Design16mm Hardened Steel (Double Keyway)
Weight1080g
Mounting120mm PCD Flange (8x M10 Holes)

2. Key Features

  • • Dual-Stator Architecture: Parallel-wound stators for 40% higher torque density

  • • Active Cooling System: Integrated liquid cooling jacket (1.5L/min flow rate)

  • • Terrain Intelligence: Electronic differential control via CAN bus 2.0B

  • • Regenerative Braking: Configurable recovery up to 25% with ABS simulation

  • • Impact Protection: Spring-damped rotor assembly withstands 50G shocks

3. Performance Data

Hill Climb Capability (72V @25°C)

GradeSpeedTorqueCurrentEfficiency
15%25km/h95Nm95A88%
25%15km/h115Nm140A82%
35%8km/h130Nm180A76%

4. Recommended Applications

🚛 Four-Wheel Scooters

  • • Heavy-duty utility quads (400kg payload)

  • • All-terrain mobility scooters

  • • Industrial site transport vehicles

🚛 High-Torque E-Vehicles

  • • Cargo trike powertrains

  • • Steep-grade mountain e-bikes

  • • Electric tractor implement drives

⚙️ Commercial Systems

  • • Airport baggage tugs

  • • Warehouse order pickers

  • • Golf course maintenance vehicles

5. Thermal Characteristics

  • • Continuous Operation: 75°C @25°C ambient (Class H insulation)

  • • Cooling System: Liquid cooling maintains <65°C at full load (20°C coolant)

  • • Thermal Protection: Triple-redundant cutoff at 110°C

  • • Storage Conditions: -40℃ ~ +110℃, <85% RH

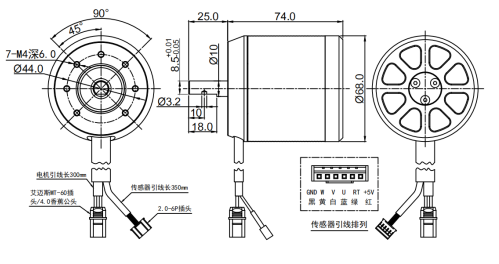

H6874 175KV (2).png

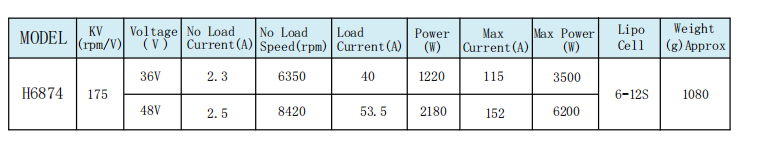

H6874 175KV (1).png
