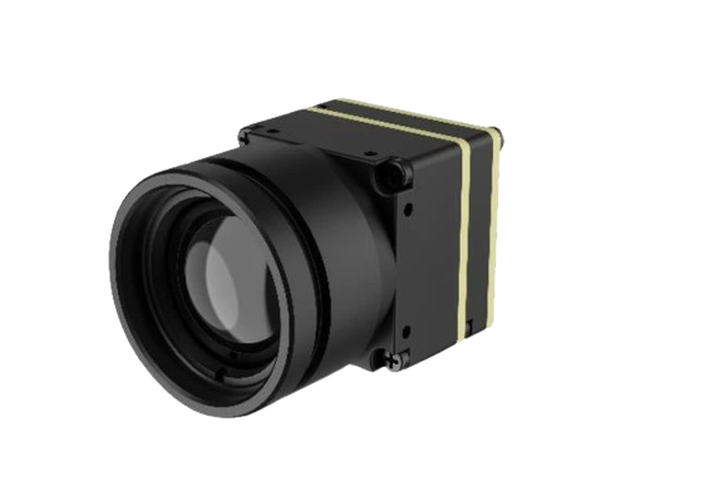

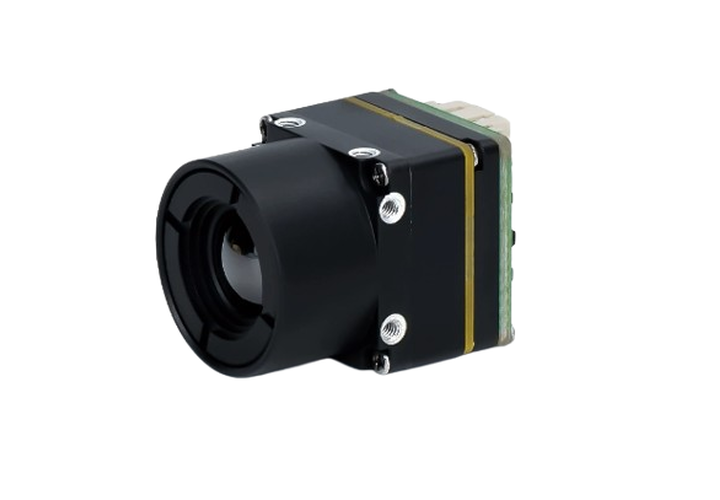

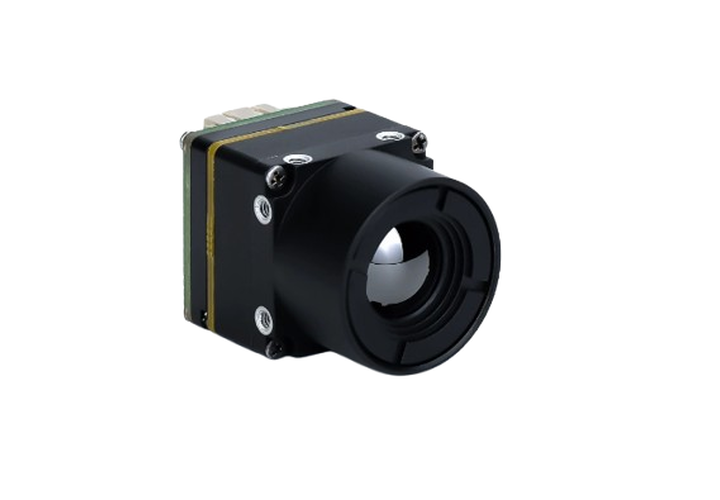

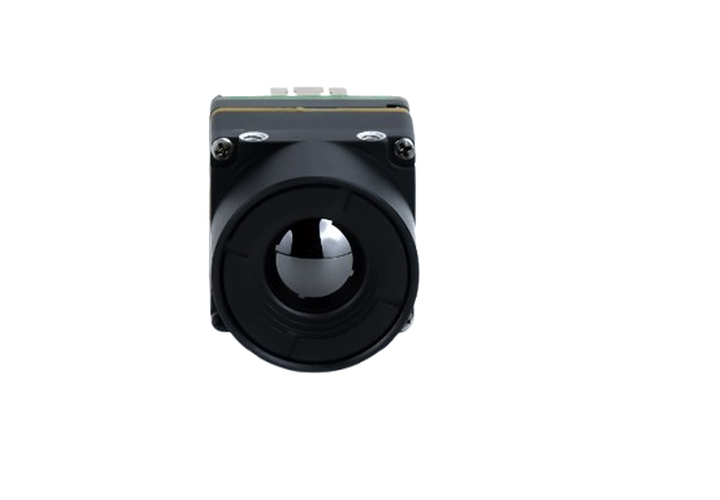

Infrared thermal imaging cameras utilize uncooled VOx microbolometer technology to detect thermal radiation and convert it into visible images. These devices provide non-contact temperature measurement capabilities across industrial, emergency response, and surveillance applications. Featuring rugged IP-rated enclosures, real-time thermal analysis tools, and multi-platform connectivity, they enable precise fault detection in electrical systems, heat loss identification in buildings, and life rescue operations in low-visibility conditions. Advanced models incorporate laser rangefinders, multi-spectral imaging, and AI-enhanced analytics for comprehensive thermal diagnostics.
| Parameter | Specification |
| Detector Type | Uncooled VOx Microbolometer FPA |
| Resolution | 640×512 (RH-6); 384×288 (DM63); 324×256 (HP-TRC) |
| Thermal Sensitivity | ≤30mK (S600); 35mK (HP-TRC); ≤0.06℃@30℃ (DM63) |
| Spectral Range | 7.5~14μm (LWIR) |
| Frame Rate | 50/60Hz (DM63); 50Hz (RH-6); 25Hz (HP-TRC) |
• FOV: 16.3°×12.3° (RH-6); 19°~3.9° (HP-TRC); 51°×38° (DM63-9)
• Focal Length: 26.7mm (RH-6); 37~185mm motorized zoom (HP-TRC); Custom 4mm/75mm/150mm (DM63)
• Focusing: Motorized preset/Auto-focus (DM63); Laser-assisted focus (S600)
• Color Palettes: 11 selectable (DM63); 19 modes including Iron Red/Fusion (S600)
• Display Modes: Thermal/PIP/Image Fusion/Visible Light (S600)
• Display: 1024×768 OLED (RH-6); 5.5" 1920×1080 Sunlight-Readable (S600)
| Characteristic | Specification |
| Ingress Protection | IP67 (RH-6); IP66 (HP-TRC); IP54 (DM63, IP67 optional) |
| Operating Temp. | -20℃+50℃ (RH-6); -25℃+55℃ (-40℃ optional, HP-TRC) |
| Weight | ≤228g (RH-6); ≤50kg (HP-TRC with gimbal); ≤1kg (DM63) |
| Power & Consumption | DC10~15V, ≤7W (DM63); 18650 battery >6h runtime (RH-6) |
• Point/Line/Area: 5 points, 4 lines, 2 areas (T-09F); Moving point/Area/DiffTemp/IsoTherm (DM63/S600)
• Laser Rangefinder: 0.03~60m, ±1mm accuracy (S600)
• Digital Compass: Direction/Pitch/Roll angle (RH-6)
• Ports: Type-C (Power/Video/Serial); RS485/Ethernet (HP-TRC); Wi-Fi/Bluetooth (S600)
• Storage: H.264 Video + Raw Data (DM63); SD card up to 2TB (S600)
• Remote Control: PC Client/Mobile App/FTP Access (S600)
• Firefighting/Rescue: RH-6 helmet-mounted thermal imager (smoke penetration + 1200m human detection); HP-TRC triple-band system (8200m vehicle detection)
• Surveillance: HP-TRC supports -40℃ environments with laser night vision and fog penetration
• Equipment Inspection: DM63 continuous monitoring (1200℃ high-temp option); S600 laser rangefinder + smart maintenance logs
• Thermal Leak Detection: T-09F portable thermal imager (50° wide-angle for HVAC scanning)
• Exploration/Search: RH-6 supports helmet/handheld modes, IP67 waterproof
• Drone Integration: T-09F smartphone connectivity, lightweight (8~25g)
