M10G-5883 GPS/BeiDou Module

Name: M10G-5883 GPS/BeiDou Module
Brand: ChatRobotic
SKU: 25091
Price: 9.90 USD
Availability: InStock

FPV Electronics > Camera & GPS

$9.90

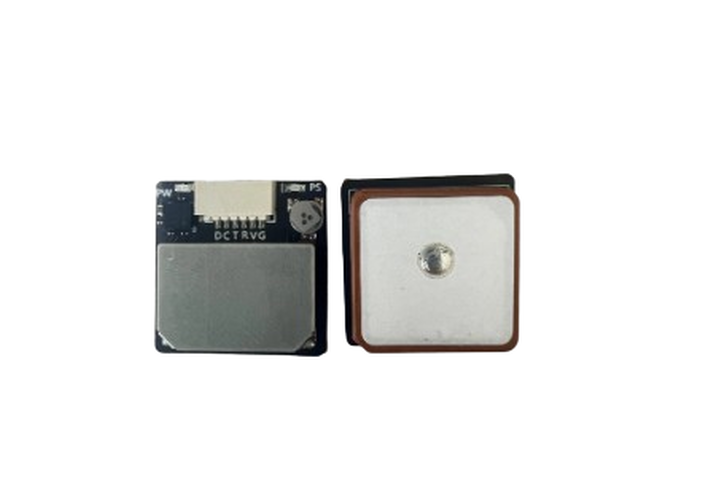

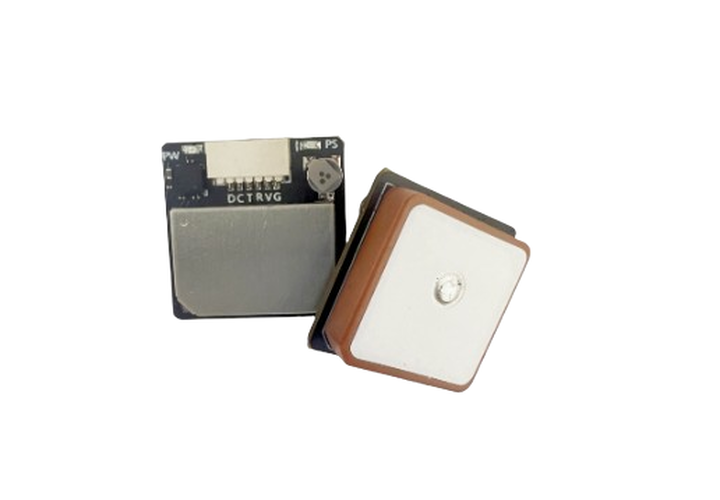

The M10G-5883 integrates u-blox M8030-KT GNSS technology and HMC5883L magnetometer for high-precision positioning and heading data.

SKU: 25091

Package weight: 0.10 KG

IN STOCK

To Wishlist

Add to Cart

M10G-5883 GPS/BeiDou Module Specification

Descriptions

The M10G-5883 integrates u-blox M8030-KT GNSS technology and HMC5883L magnetometer for high-precision positioning and heading data. Designed for FPV drones and industrial robotics, it supports concurrent GPS/GLONASS/Galileo/BeiDou/QZSS/SBAS reception with ultra-low power consumption. The module features dual-status LEDs, wide voltage input (4.5-18V), and industrial-grade temperature resilience:cite[1]:cite[2].

1. Main Specifications

Parameter	Technical Value
GNSS Platform	u-blox M8030-KT
Supported Systems	GPS L1, GLONASS L1, BeiDou B1, Galileo E1, QZSS, SBAS
Concurrent GNSS	Up to 4 systems
Update Rate	1–18Hz (single), 1–10Hz (concurrent)
Positioning Accuracy	2.0m CEP (SBAS enabled)
Compass	HMC5883L Magnetometer (±1°–2° heading accuracy)
Sensitivity	Tracking: -167dBm, Cold Start: -148dBm
Voltage Range	4.5V–18V DC
Interfaces	UART (4800–921600bps), TTL/RS-232 selectable
Antenna	External active antenna port
Dimensions	36×26×10mm
LED Indicators	TX (data output), PPS (position fix status)

2. Key Features

• Multi-Constellation Fusion
Concurrent processing of GPS+GLONASS+BeiDou+Galileo signals for 99% signal availability:cite[1]:cite[2].
• Dynamic Update Rates
Configurable 10Hz for racing drones (single-GNSS) or 5Hz for multi-system navigation:cite[2].
• Plug-and-Play Flight Control
Pre-configured for Betaflight/INAV with NMEA-0183/UBX protocol support:cite[1].
• Robust Signal Acquisition
-167dBm tracking sensitivity for urban canyon operations:cite[2].
• High-Dynamic Performance
Supports 515m/s velocity and 50,000m altitude:cite[1].

3. Performance Data

Navigation Performance (Open Sky @25°C)

Metric	Performance	Conditions
Cold Start TTFF	≤26s	All systems enabled:cite[1]
Hot Start TTFF	≤1s	Backup capacitor assisted:cite[2]
Velocity Accuracy	0.1 m/s	95% confidence:cite[1]

Power Consumption

Mode	Current	Voltage
Acquisition	50mA	5V
Tracking	35mA	5V

4. Recommended Applications

🚁 FPV Racing Drones

• GPS rescue mode (10Hz update rate)
• Real-time position tracking:cite[1].

🛰️ Autonomous Robotics

• AGV warehouse navigation
• Precision farming robot guidance

📡 Industrial Asset Tracking

• Container monitoring (wide voltage support for vehicle systems)

5. Environmental Ratings

• Temp Range: -40°C to +85°C (operational), -40°C to +105°C (storage):cite[2]
• Vibration Immunity: 4G acceleration tolerance:cite[1]
• EMC Compliance: FCC/CE certified
