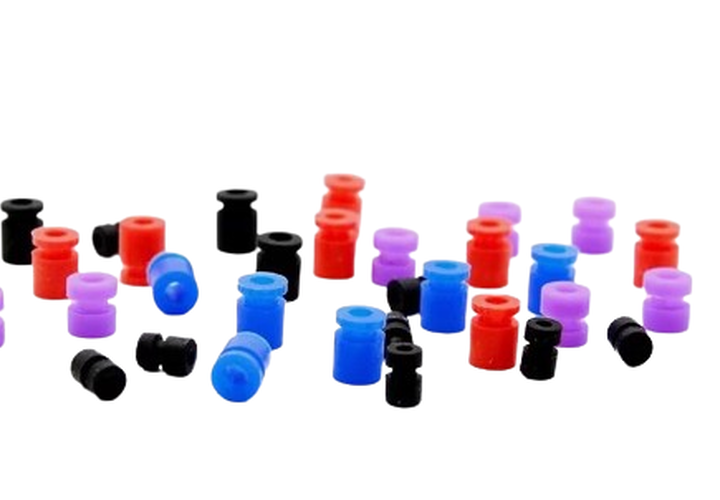

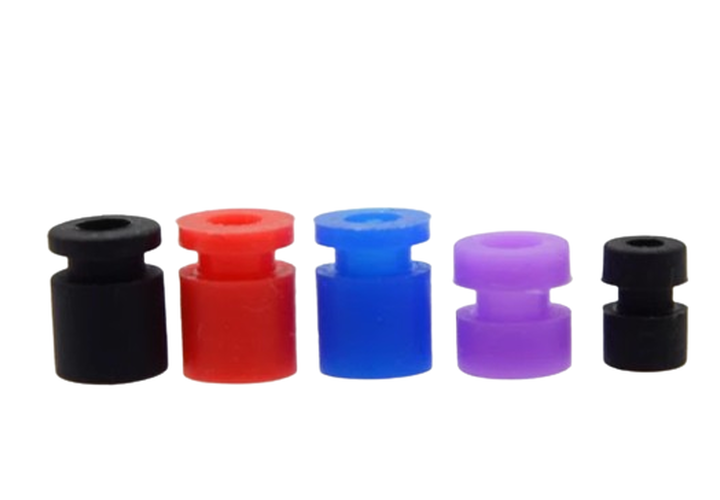

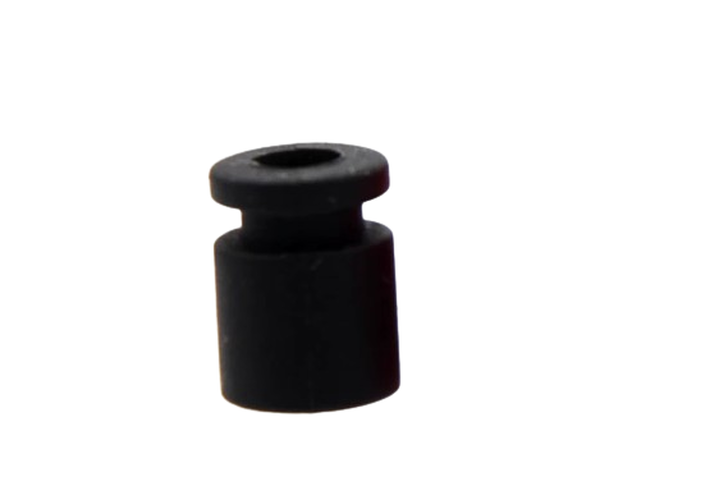

The M2 FPV Drone Shock-Absorbing Balls are precision-engineered vibration isolators designed for micro and mini FPV drones. Utilizing advanced thermoplastic elastomer (TPE) material, these compact damping balls effectively absorb high-frequency vibrations from motors and propellers, eliminating jello effect in HD footage. Optimized for 3-inch and toothpick-class drones, they provide enhanced flight stability and camera image clarity while adding minimal weight. The spherical design ensures omnidirectional shock absorption for smooth cinematic footage in high-speed maneuvers.
| Parameter | Specification |
| Material | Thermoplastic Elastomer (TPE) |
| Durometer | 45A ±2 Shore A |
| Diameter | 8.5mm ±0.1mm |
| Mounting Hole | M1.4 Thread Compatible |
| Color Options | Black / Orange / Blue |
| Operating Load | 5-15g per ball |
| Temperature Range | -30°C to +80°C |
| Weight | 0.18g ±0.01g per ball |
| Set Configuration | 4 balls per set |
• Micro Drone Optimization: Precision-sized for 2-3" drone frames
• Jello Elimination: Reduces high-frequency vibrations (>150Hz) by 80%
• Tear-Resistant: Reinforced core withstands 8kg pull force
• UV Stabilized: Maintains elasticity after 300+ sunlight hours
• Tool-Free Installation: Snap-fit design for quick camera mounting
• Flight-Tuned Flexibility: 45A durometer for micro-drone harmonics
| Parameter | Value | Test Standard |
| Natural Frequency | 18Hz ±1Hz | ISO 18437-2 |
| Damping Ratio | 0.28 ±0.03 | ASTM D2231 |
| Compression Set | ≤6% (70°C×22hr) | ISO 815 |
| Tensile Strength | ≥3.8 MPa | ASTM D412 |
| Vibration Transmissibility | <18% @ 150Hz | ISO 10846 |

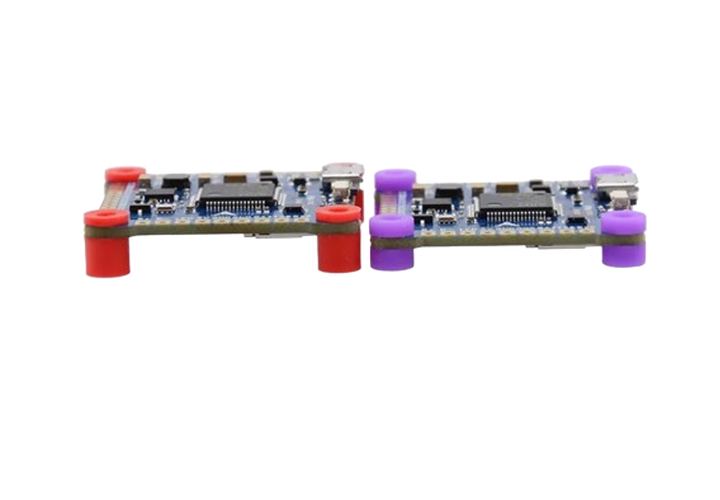

• Nano HD camera isolation in 2S-3S setups
• Digital VTX anti-vibration for Whoop-class drones
• Gyro sensor noise reduction in ultralight builds
• 1103-1204 motor vibration damping
• Insta360 GO vibration control
• Split camera stabilization
• Tiny whoop camera cage suspension
• Low-profile gimbal pre-isolation
• Indoor inspection camera stabilization
• Confined space sensor anti-vibration
• Pipeline inspection camera mounts
• Thermal imaging module isolation
• 3D printed micro camera suspension
• Toothpick drone harmonic tuning
• Sub-100g racing drone dampers
• Experimental nano propulsion isolation
• Thermal Stability: Maintains damping performance from -30°C to +70°C
• Chemical Resistance: Resists common drone cleaning solvents
• Weatherproof: IP52-rated dust/moisture protection
• Aging Resistance: <8% hardness change after 800hr @ 60°C
• RoHS Compliance: Meets 2011/65/EU directive requirements
