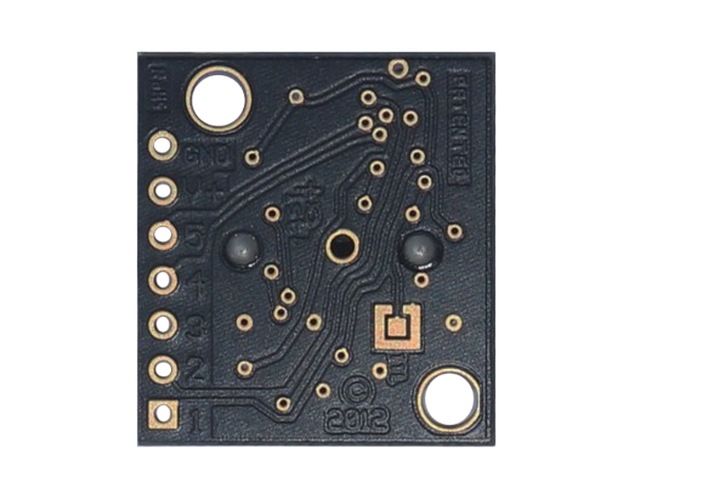

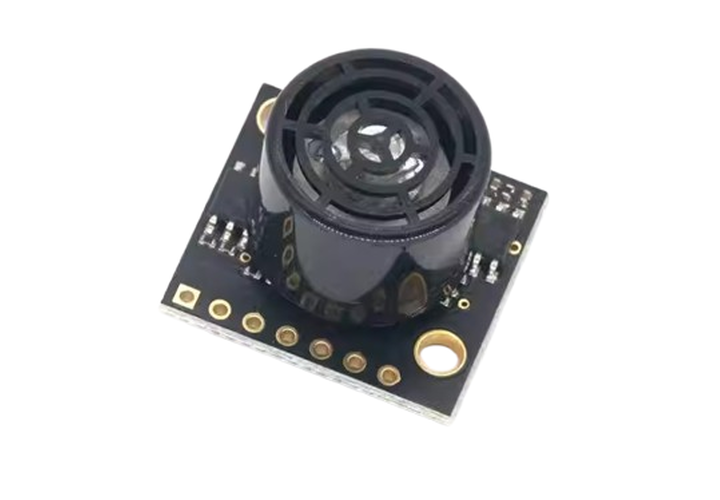

MB1043 Ultrasonic Ranging Sensor

FPV Electronics > Camera & GPS

$9.90
The MB1043 ultrasonic ranging sensor delivers high-precision distance measurement for drone obstacle avoidance systems integrated with PX4/Pixhawk4 flight controllers.
SKU: 25181
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



MB1043 Ultrasonic Ranging Sensor | PX4/Pixhawk4 Drone Obstacle Avoidance Module Specifications

Descriptions

The MB1043 ultrasonic ranging sensor delivers high-precision distance measurement for drone obstacle avoidance systems integrated with PX4/Pixhawk4 flight controllers. Engineered with advanced signal processing and temperature compensation, it achieves ±1cm accuracy across 0-5m ranges in diverse environmental conditions. The sensor's ruggedized housing and UART interface provide seamless integration for real-time collision prevention, autonomous navigation, and precision landing applications.

1. Main Specifications

ParameterSpecification
Detection Range20cm–500cm
Accuracy±1cm (25°C) / ±3cm (-20°C to +70°C)
Beam Width25° conical
Update Rate10Hz (Standard) / 20Hz (High-Speed Mode)
InterfaceUART TTL (3.3V-5V) / Analog Voltage Output
Resolution1cm
Operating Voltage3.3V-5V DC
Current Draw3mA (Sleep) / 15mA (Active)

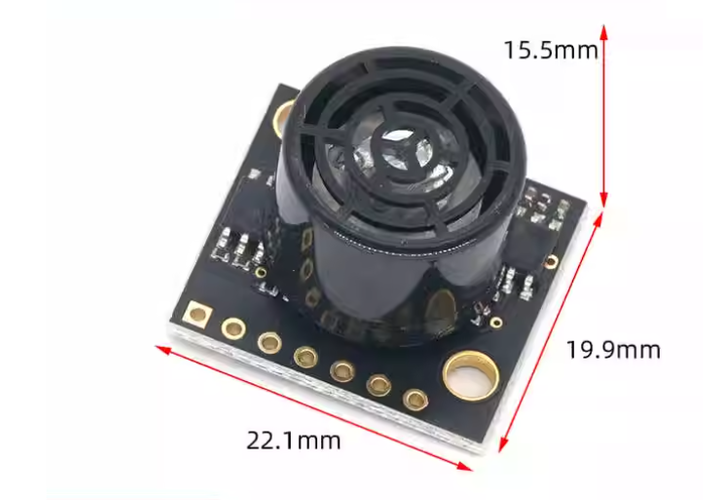

Dimensions22×20×16mm (L×W×H)
Weight4g

2. Key Features

  • • PX4/Pixhawk4 Native Support: Plug-and-play integration via TELEM4 port

  • • Temperature Compensation: -20°C to +70°C auto-calibration

  • • Multi-Echo Processing: Rejects interference from rain/dust/insects

  • • Low Power Modes: 3μA sleep current for battery-sensitive applications

  • • Ruggedized Design: IP67-rated waterproof housing

3. Performance Data

Obstacle Detection Metrics

Target SurfaceMax RangeAccuracyDetection Angle
Flat Wall500cm±1cm25°
Tree Bark350cm±2cm30°
Wire Mesh200cm±3cm35°
Grass300cm±2.5cm28°

4. Recommended Applications

🚁 Drone Systems

  • • Autonomous obstacle avoidance for PX4/Pixhawk4 drones

  • • Precision landing systems (terrain-relative navigation)

  • • Warehouse inventory drone navigation

⚡ PX4 Integration

  • • MAVLink-compatible collision prevention

  • • ROS/ROS2-based autonomous navigation

  • • Swarm coordination in GNSS-denied environments

🏭 Industrial Automation

  • • AGV anti-collision systems

  • • Conveyor belt object detection

  • • Liquid level monitoring

5. Environmental Characteristics

  • • Operating Temp: -20°C to +70°C

  • • Weather Resistance: IP67 (1m waterproof for 30min)

  • • Vibration Resistance: 10G @ 10-200Hz (MIL-STD-810G)

  • • EMC Immunity: 30V/m @ 80-1000MHz
