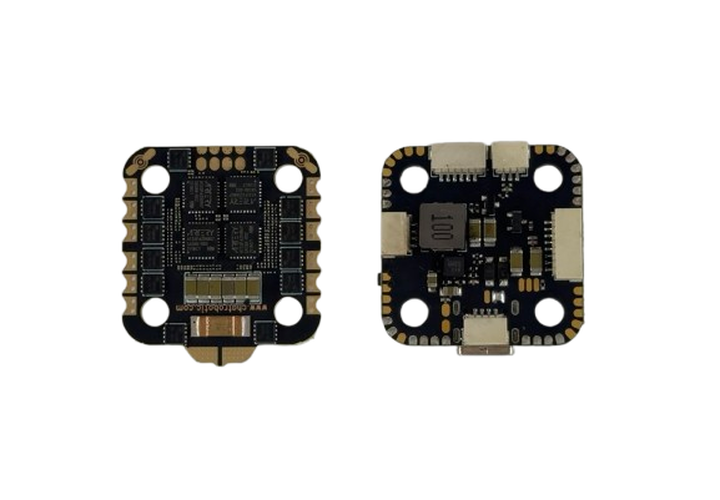

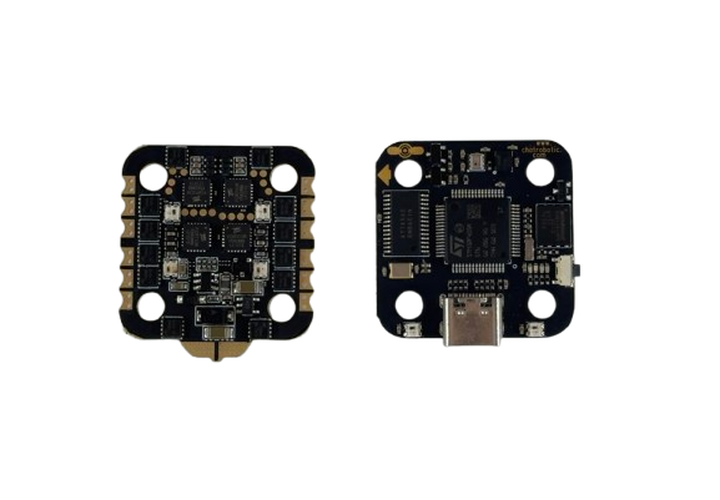

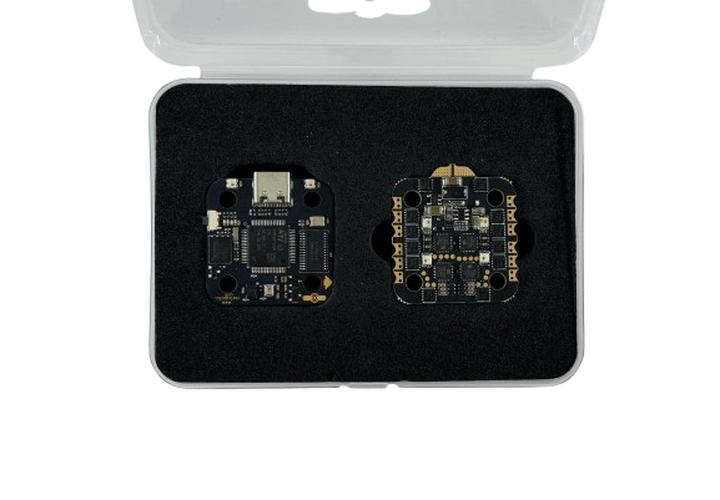

Mini Stack: F405 Mini FC + 30A Mini ESC 4 in 1 20x20 hole

FPV Electronics > Stack & AIO

$49.90
$59.90
Compact integrated flight control and power delivery system designed for 2-4" micro FPV drones, featuring STM32F405 processing power and AT32-based ESC efficiency in minimal footprint.
SKU: CRP40530
Package weight: 0.12 KG
Pkg. Size: 105MM*75MM*25MM
IN STOCK
To Wishlist
Add to Cart



Mini  Stack: F405 Mini FC + 30A Mini ESC 4 in 1 20x20 hole Technical Brief

System Overview

Compact flight control and power system optimized for 2–4" micro FPV drones, combining the processing power of STM32F722 with AT32-based ESC efficiency in a 20×20mm stackable footprint.

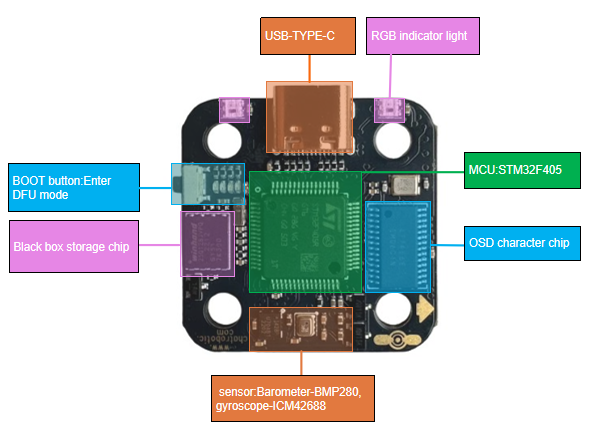

1. Flight Controller Specifications

ParameterSpecification
3-channel GPIO
MCUSTM32F722RET6 (216MHz Cortex-M7)
IMUICM-42688-P (SPI, 32kHz gyro) ]
Blackbox16MB Flash (8kHz logging)
Input VoltageInput Voltage 2–8S LiPo (7.4–33.6V)
BEC OutputsBEC Outputs 5V1A + VBAT
Connectivity5x UART, 1x I²C, 1x Bluetooth (UART4)
USB InterfaceType-C
OSD ChipAT7456E (Betaflight OSD)
Board Size20×20mm
Board Weight8.1g

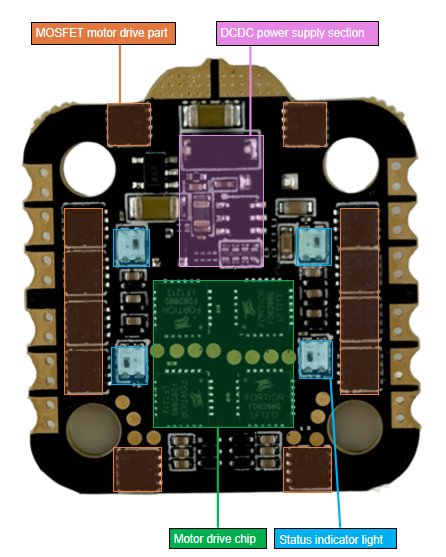

2. 30A 4-in-1 ESC Specifications

ParameterSpecification
MCUAT32F421K6U7 (120MHz Cortex-M4)
Continuous Current30A/channel (120A total)
Burst Current40A/channel (10 sec)
ProtocolsDShot150/300/600, Proshot, PWM
Input Voltage2–8S LiPo (7.4–25.2V)
BEC Outputs5V1A + VBAT
Current Sensor±2% accuracy shunt resistors
Board Size30×30mm
Board Weight14.5g

3. Combined Features

Power System

  • • Integrated PDB: Direct battery-to-ESC power distribution

  • • Surge Protection: 25V transient voltage suppression (TVS diodes)

  • • LC Power Filter: Reduces noise for clean gyro performance

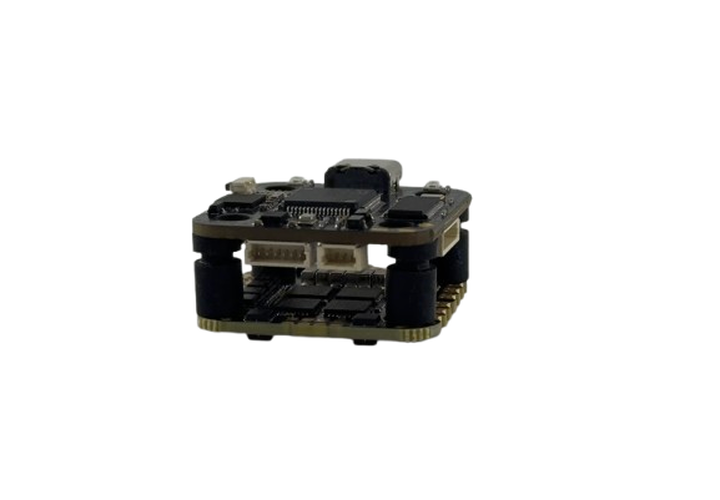

  • • Stackable Design: 20×20mm mounting pattern with M2 screws

Integration

  • • DJI Air Unit Plug-and-Play: Dedicated connector for seamless digital HD setup

  • • ESC Telemetry: Real-time current/voltage monitoring via UART6

4. Safety Features

Flight Controller Protections

Protection TypeSpecificationImplementation
Voltage Spike Protection33.6V continuous /40V transientTVS diodes + LC filter
Gyro Vibration DampingReduces >8kHz vibrations by 85%Silicone gasket + 2-stage software filter
Dual Power Inputs5V@3A (primary) + 5V@1A (backup)Automatic switchover circuit

ESC Protections

Protection TypeThresholdResponse TimeTrigger Condition
Hardware Overcurrent40A per channel≤3 secondsMOSFET overload
Software Overcurrent30A continuous≤15 secondsSustained high current
Short CircuitHardware Isolation<80μsPhase-to-phase fault
Over-temperature105°C (MOSFET)<1msThermal cutoff
Low Voltage Cutoff3.0V/cell<50msBattery depletion

5. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm， reversed)

  • • 1x SH1.0-4pins silicone cable (12cm， reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end)

  • • 5x M3*10mm shock-absorbing balls

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor.

  • • 1x XT30-male 14AWG silicone cable 10cm length.

  • • 5x M3*8mm shock-absorbing balls

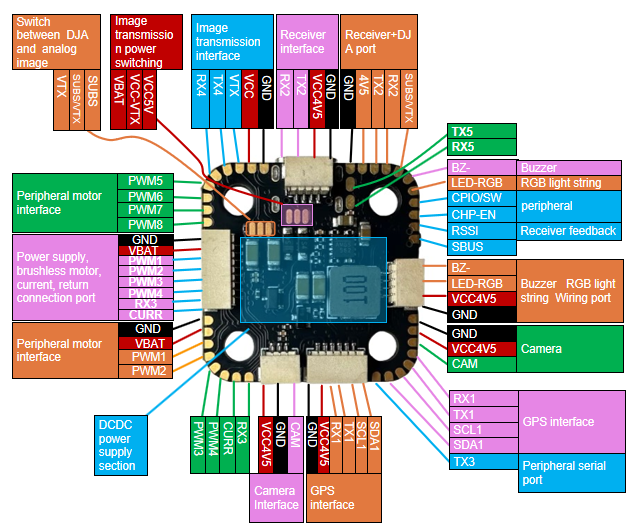

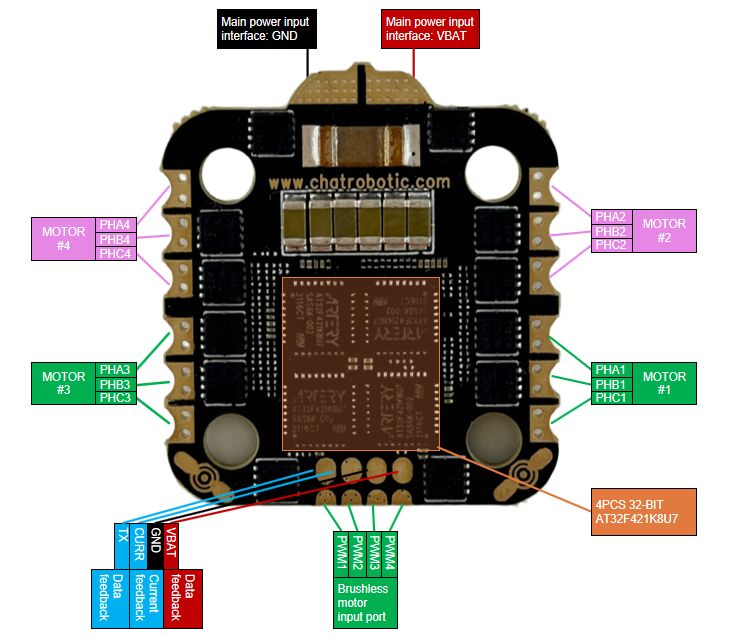

6. Connection Diagram
