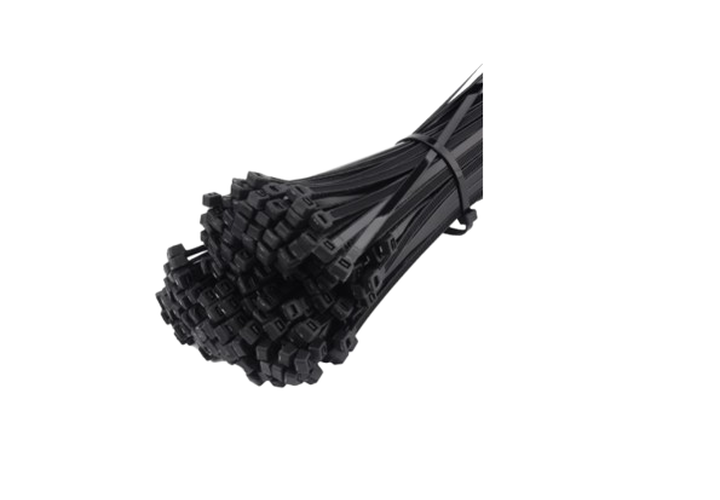

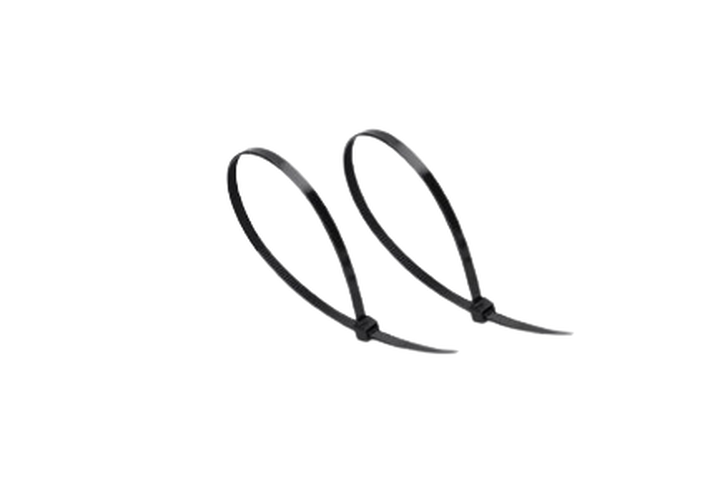

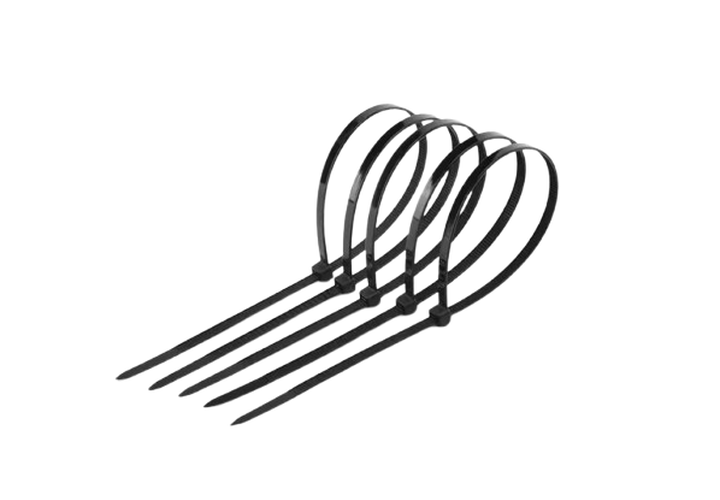

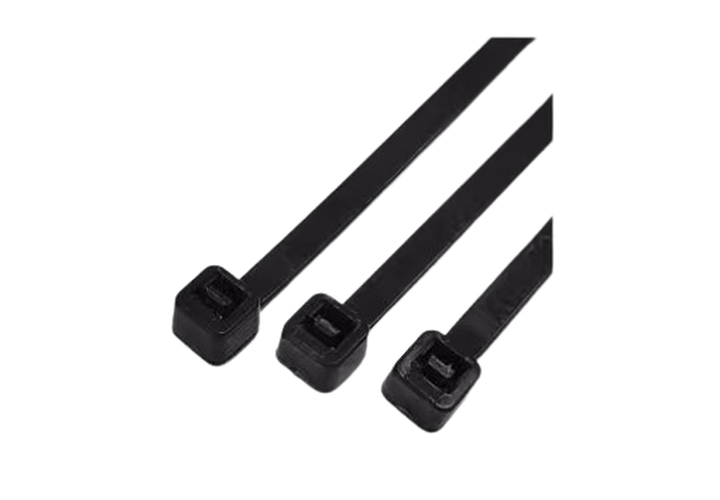

The black nylon cable ties feature UV-stabilized polyamide construction with stainless steel locking teeth for permanent bundling and organization in electrical installations, drone builds, and industrial applications. Engineered with precise 3×200mm and 5×200mm dimensions, they provide exceptional tensile strength and environmental resistance. These ties' consistent performance and high-volume packaging make them ideal for wire management, equipment securing, and repetitive fastening tasks requiring reliable, vibration-proof solutions.
| Parameter | Specification |
| Material | Nylon 6.6 (UL94 V-2) |
| Tie Width | 3.0mm / 5.0mm (±0.1mm) |
| Length | 200mm (±2mm) |
| Head Type | Standard Barbed Lock |
| Locking Mechanism | 304 Stainless Steel Tooth |
| Tensile Strength | 3mm: 18kg |
| Operating Temp | -40°C to +85°C |
| UV Resistance | 500+ hours weatherability |
| Color | Black (Uniform) |
| Bundle Diameter | 3mm: ≤110mm |
| Packaging | 500pcs per size (Bulk Pack) |
| Flammability Rating | UL94 V-2 |
• High Tensile Strength: Reinforced head design prevents pull-out failure
• Weather Resistance: UV-stabilized for outdoor applications
• Precision Locking: Stainless steel teeth ensure consistent holding power
• Chemical Resistance: Withstands oils, fuels, and cleaning solvents
• Vibration Proof: Maintains tension under 10G vibration loads
• Batch Consistency: Injection molded with ±0.1mm dimensional tolerance
• Installation Efficiency: Smooth inner surface prevents wire damage
• Reusable Option: Available with releasable tab (optional)
| Tie Size | Tensile Strength | Recommended Load | Bundle Capacity | Breakaway Force |
| 3×200mm | 18kg min | 12kg (66% of max) | 50mm diameter | 1.5kg |
| 5×200mm | 40kg min | 25kg (62% of max) | 90mm diameter | 2.2kg |
| Note: All values tested @23°C, 50% RH |
• Wire harness management in drone frames
• ESC and battery cable organization
• FPV antenna securing
• Component strain relief
• Conduit bundling
• Panel wiring organization
• Data center cable management
• Solar panel wiring
• Hydraulic hose securing
• Pneumatic line management
• Machinery guard fastening
• Conveyor belt maintenance
• Engine bay wiring
• Trailer light wiring
• Marine electronics waterproofing
• Truck bed equipment securing
• Christmas light installation
• Garden hose organization
• Computer cable management
• Pallet securing
• Carton sealing reinforcement
• Bundle packaging
• Temporary equipment labeling
• Installation Temperature: -20°C to +60°C (optimal performance)
• Installation Tool: Standard tensioning tool (5-25kg range)
• Permanent Set: Forms within 24 hours at room temperature
• Chemical Compatibility: Resists diesel, hydraulic fluid, and salt water
• UV Degradation: 20% strength loss after 2 years direct sunlight
• Storage Conditions: Cool, dry place away from UV sources
• Shelf Life: 5 years in original packaging
