PH2.0mm Terminal Cable - 200mm

Accessories > Others

$0.12
The PH2.0mm terminal wire is a precision-engineered connector solution designed for reliable electrical connections in various electronic applications.
SKU: 44191
Package weight: 0.10 KG
PH2.0mm Terminal Wire :

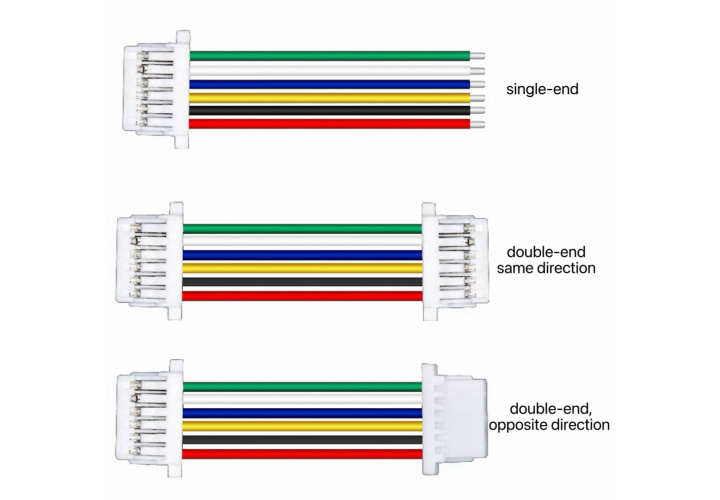

PH 2.0mm terminal cable, single-end PH 2.0mm terminal cable, double-end, same direction PH 2.0mm terminal cable, double-end, opposite direction
Specification:
2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P
IN STOCK
To Wishlist
Add to Cart



PH2.0mm Terminal Cable Full English Specifications

Product Overview

The PH2.0mm terminal wire is a precision-engineered connector solution designed for reliable electrical connections in various electronic applications. It features a 2.00mm pitch spacing and utilizes 26AWG wire, available in both single-end and dual-end termination configurations. These wires are commonly used in internal wiring of electronic devices, appliances, and industrial equipment for board-to-wire connections.

1. Main Specifications

ParameterSpecification
Connector TypePH2.0mm
Pitch Spacing2.00mm
Wire Gauge26AWG
Termination OptionsSingle-end / Dual-end (Same-side or Opposite-side)
Number of Positions2P-12P
Wire Length200mm
Rated Voltage250V AC/DC
Rated Current2A AC/DC
Color OptionsMulti-color available for circuit identification (including red, black)

2. Electrical Characteristics

ParameterValue
Contact Resistance≤20mΩ Max
Insulation Resistance≥1000MΩ Min
Withstand Voltage500-800V AC/minute
Dielectric Strength800V AC / 1000V AC

3. Mechanical Properties

ParameterValue
Insertion Force1.0kgf/Pin Max
Withdrawal Force0.10kgf/Pin Min
Retention Force1.2kgf/Pin Min
Durability (Mating Cycles)25 - 50 cycles

4. Environmental Specifications

ParameterRange
Operating Temperature-25℃ to +85℃
Relative Humidity93% @ 40℃
Salt Spray Resistance24 hours
Flammability RatingUL94V-0 (Flame Retardant)

5. Material Construction

ComponentMaterial Specification
TerminalPhosphor Bronze (Sn plating or Au plating available)
Housing/InsulatorNylon 66 (UL94V-0)
Wire InsulationUL1007
ConductorBare copper or tin-plated copper strand

6. Recommended Applications

  • • Consumer Electronics: Internal wiring for computers, printers, display equipment

  • • Home Appliances: Connections in refrigerators, washing machines, microwaves

  • • LED Lighting: LED lamps and lighting fixtures

  • • Industrial Control: Instrumentation, sensors, control systems

  • • Automotive Electronics: Internal wiring for automotive control systems

  • • Audio Equipment: Speaker systems, audio connectors

7. Compliance & Certification

  • • RoHS Compliance: Meets RoHS 2.0 directives

  • • Safety Standards: Complies with relevant UL standards (UL1007)

  • • Flammability: UL94V-0 rated housing
