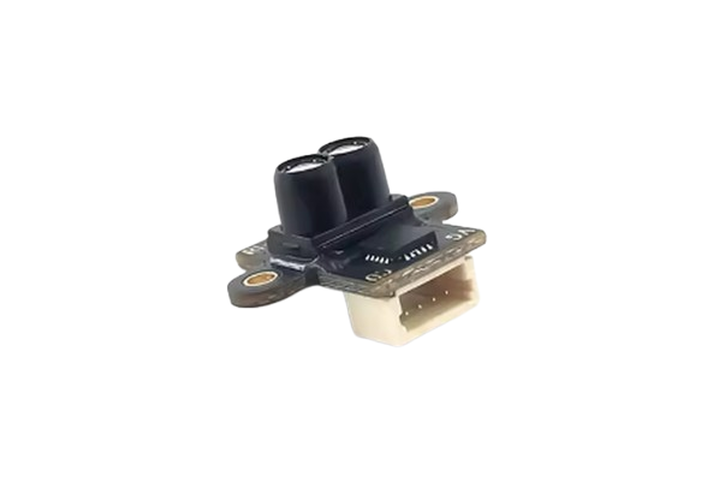

The RI-080 infrared ranging module delivers 8-meter precision measurement using phase-based ranging technology, optimized for robotics, UAVs, and industrial automation. Engineered with a 940nm infrared emitter and advanced signal processing, it achieves ±2mm accuracy in diverse lighting conditions while resisting ambient light interference. The module's compact design and serial interfaces enable seamless integration for real-time obstacle detection, positioning, and height control applications:cite[1]:cite[3].
| Parameter | Specification |
| Measurement Range | 0.05–8.0m (Indoor/Outdoor) |
| Accuracy | ±2mm (Static Targets) |
| Resolution | 1mm |
| Laser Type | 940nm Infrared (Class II, <1mW) |
| Beam Diameter | 15mm @ 3m / 40mm @ 8m |
| Measurement Time | 0.05–0.5s (Configurable) |
| Output Interfaces | UART TTL (3.3V), I²C |
| Power Supply | DC 3.3V–5V (±10%) |
| Power Consumption | <0.5W (Peak: 100mA @ 5V) |
| Dimensions | 48×42×18mm (L×W×H) |
| Weight | 60g |
• Phase-Based Ranging: Immune to ambient light fluctuations, enabling stable outdoor operation:cite[3]
• Dual Output Modes: Switchable UART/I²C for compatibility with Arduino, Raspberry Pi, and STM32:cite[1]
• Active Filtering: Algorithmic suppression of interference from sunlight/artificial lights
• IP40 Protection: Dust-resistant housing for industrial environments:cite[1]
• Configurable Sampling Rate: 1Hz–20Hz adjustable for power/performance balance
| Target Surface | Max Range | Accuracy | Measurement Stability |
| Matte White | 8.0m | ±2mm | 99.5% |
| Gray Concrete | 6.5m | ±3mm | 98% |
| Black Foam | 4.0m | ±5mm | 95% |
| Outdoor (10k lux) | 7.2m | ±4mm | 97% |
• Precision landing assistance
• Terrain-following altitude hold
• Obstacle avoidance for autonomous flight
• AGV collision prevention
• Conveyor belt object positioning
• Robotic arm proximity sensing
• Material level detection (e.g., silos/hoppers)
• Assembly line part alignment
• Safety perimeter guarding
• Operating Temp: -10°C to +60°C:cite[1]
• Storage Temp: -20°C to +80°C
• Humidity Tolerance: 0–85% RH (non-condensing)
• Light Immunity: Operates under 100k lux ambient light
