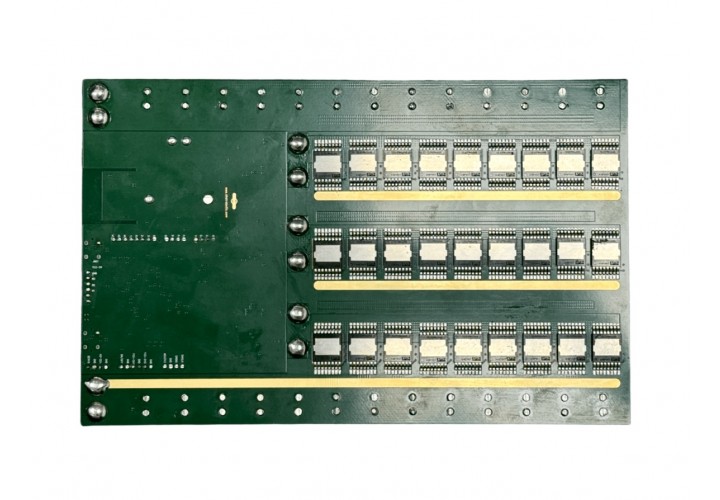

SEVEN 54 V2 (32S 1500A) VESC Motor Controller

VESC (200A~2000A)

$1350.00
$2500.00
High‑power VESC‑compatible controller featuring 54 industrial‑grade MOSFETs, rated for 32S battery systems and 150A continuous current.
SKU: CRP01603
Package weight: 1.00 KG
IN STOCK
To Wishlist
Add to Cart



SEVEN 54 V2 (32S 1500A) VESC Motor Controller Product Specifications

High‑power VESC‑compatible controller featuring 54 industrial‑grade MOSFETs, rated for 30S battery systems and 150A continuous current. Designed for electric scooters, e‑bikes, light electric vehicles and industrial applications requiring robust, reliable motor control.

1. Key Electrical Parameters

  • • Maximum Voltage: 126V (32S) (150V MOSFETs, with 160V DCDC option)

  • • Minimum Voltage: 40V (10S)

  • • Continuous Current: 1200A (with efficient cooling, e.g., liquid)

  • • Maximum Current (10 sec): 1500A (MOSFET choice dependent)

  • • Max ERPM: 150,000 (firmware limited)

  • • ADC Input: 0‑3.3V, 5V tolerant

  • • Max Operating Temperature: 75‑95°C rollback

  • • Switching Frequency: Up to 25kHz (50kHz with VESC firmware) @ rated cell count

2. Hardware Design & Construction

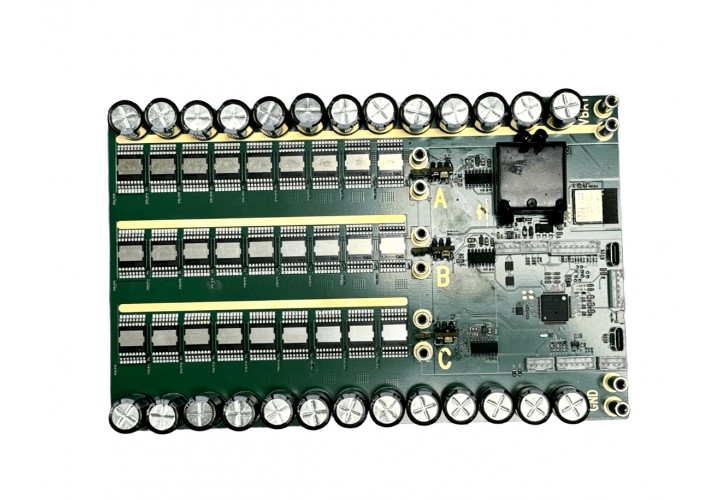

  • • MOSFET Count & Type: 54 pcs industrial‑grade MOSFETs (e.g., Infineon or equivalent, low Rds(on))

  • • Board Design: High‑current PCB with heavy copper layers

  • • Core Design: Robust and reliable VESC architecture, DRV‑less or integrated gate driver (design dependent)

  • • Cooling: Requires efficient cooling (liquid or forced air) for rated continuous current

3. Features & Interfaces

  • • Control Interfaces: Compatible with VESC universal remote control, electric throttle handle, and CAN control (three ways)

  • • Wireless Communication: Bluetooth module (optional, ESP32‑C3 compatible with VESC Express)

  • • Supported Throttle Types: ADC, PPM, CAN, UART inputs

  • • Wired Communication: CAN bus

  • • Programming Interface: USB‑C port for configuration and firmware updates

  • • Auxiliary Output: 5V / 0.5A

  • • Integrated Sensor: Built‑in IMU chip for balancing applications (e.g., VESC Onewheel®)

  • • Switch Control: Easy ON/OFF with any latching switch

4. Protection & Management Features

  • • Thermal Management: Soft and hard thermal limiting (rollback at 75‑95°C)

  • • Overcurrent Protection: Hardware + software

  • • Low Voltage Cutoff: Programmable

  • • Short Circuit Protection: Motor phase and battery side

  • • Operating Environment: Suitable for demanding PEV and light EV applications

  • • Firmware: VESC open source firmware compatible (e.g., VESC6, VESC75, or custom builds)



Frequently Asked Questions

What VESC current rating do I need for my motor?
Choose by your motor’s phase-current demand and application. 200A–500A VESC controllers suit ebikes, scooters and light robotics; 1000A-class units power high-performance eskate, EUCs and small EVs; 2000A controllers target electric motorcycles and industrial drives. Always leave headroom above your battery’s fully-charged voltage.
Do you offer OEM/ODM customization for VESC controllers?
Yes. ChatRobotic is an ISO 9001 and ISO 14001 certified manufacturer providing OEM/ODM VESC controllers, custom firmware, enclosure design and PCB assembly for 200A–2000A applications. Contact our engineering team with your specs to start a custom build.
How long is the lead time and which shipping methods do you use?
In-stock VESC controllers are shipped via DHL/FedEx after payment is received. Delivery time depends on the shipping method: DHL/FedEx priority express 3–5 business days, economy express 4–6 business days, registered post 8–20 business days, worldwide. OEM/ODM and bulk orders are scheduled by customization scope. Logistics tracking is provided after shipment.
Are these VESC controllers compatible with sensored and sensorless motors?
Yes. ChatRobotic VESC controllers support both sensored (hall-sensor) and sensorless BLDC/PMSM motors and work with a wide battery range. FOC, regen braking, throttle curves and telemetry are fully configurable through VESC Tool.
