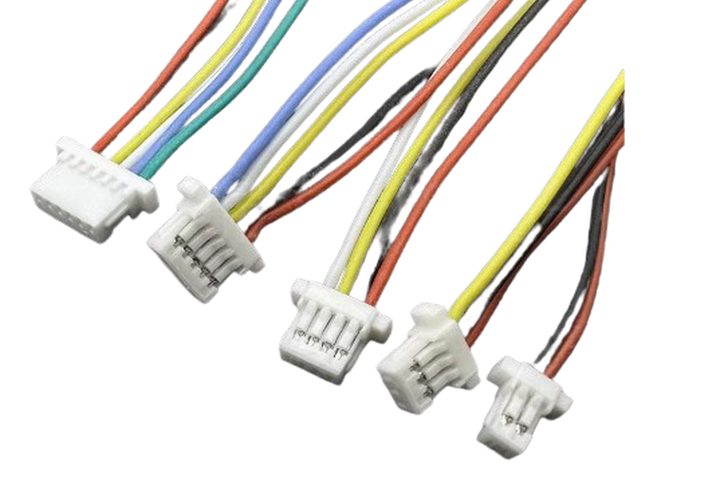

The SH1.0 HT Soft Silicone Wire features high-temperature resistant silicone insulation with pre-tinned copper conductors. This 20mm length wire with dual opposite-end terminations provides exceptional flexibility and thermal stability up to 200°C. Designed for high-vibration environments, it offers superior electrical performance and flame resistance for critical connections in electronics, drones, and automotive applications. The ultra-soft jacket ensures easy routing in tight spaces while maintaining excellent dielectric strength.
| Parameter | Specification |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Conductor Size | 1.0 mm² (17 AWG) |
| Insulation Material | High-Temperature Silicone |
| Wire Length | 20mm ±1mm |
| Termination | Dual End (Opposite Sides) |
| Voltage Rating | 600V AC/DC |
| Temperature Rating | -60°C to +200°C |
| Stranding | 105/0.10mm (High-flex) |
| Jacket Thickness | 0.8mm ±0.1mm |
• Thermal Endurance: Continuous operation at 200°C with 300°C peak resistance
• Ultra-Flexible: 5000+ bend cycles without conductor fatigue
• Flame Retardant: UL VW-1 certified flame-retardant silicone
• Pre-tinned Conductors: Enhanced solderability and oxidation resistance
• High Dielectric Strength: 15kV/mm insulation breakdown protection
• Color Options: Available in 12 standard circuit-identification colors
| Parameter | Value | Test Standard |
| Max Current Rating | 10A @ 25°C | IEC 60228 |
| DC Resistance | ≤20.0 Ω/km | IEC 60228 |
| Insulation Resistance | ≥20 MΩ·km | IEC 60167 |
| Dielectric Strength | ≥5kV AC for 5min | IEC 60243 |
| Capacitance | 110 pF/m @ 1kHz | IEC 60250 |
• Battery pack series/parallel connections
• ESC-to-motor power leads in racing drones
• FPV camera wiring harnesses
• VTX antenna feeder lines
• Sensor wiring in high-temperature environments
• Robotic joint wiring with continuous flexing
• 3D printer heated bed connections
• CNC spindle motor power cables
• Engine compartment sensor wiring
• LED lighting harnesses in high-heat zones
• Battery management system (BMS) interconnects
• Avionics equipment internal jumpers
• Power supply unit internal wiring
• High-current PCB jumpers
• Test fixture calibration leads
• Prototyping breadboard connections
• Thermal Stability: Maintains flexibility from -60°C to +200°C
• Chemical Resistance: Withstands oils, fuels, and coolants
• UV Resistance: 1000+ hours UV exposure without degradation
• Flame Performance: Self-extinguishing (UL VW-1, IEC 60332-1)
• RoHS Compliance: Meets 2011/65/EU directive requirements
