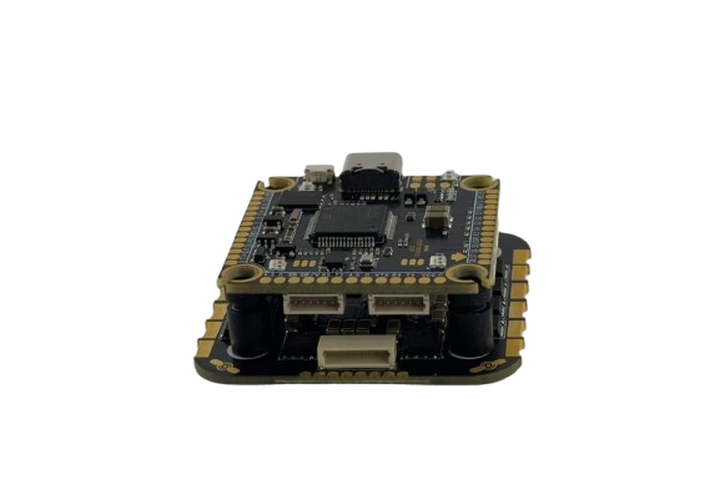

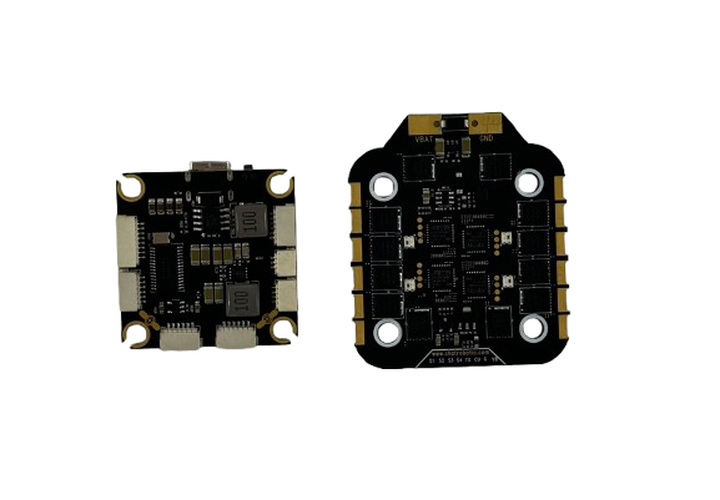

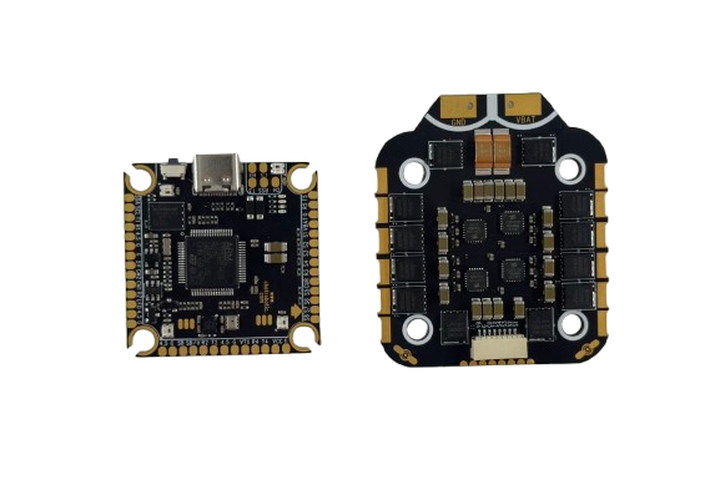

Standard Stack: F405 FC + 75A ESC 4-in-1 30x30

FPV Electronics > Stack & AIO

$65.90
$75.90
High-performance flight control and power system designed for 5-13" FPV drones, featuring robust STM32F405 processing and high-current ESC capabilities in a 30×30mm stackable form factor.
SKU: CRP40575
Package weight: 0.12 KG
Pkg. Size: 105MM*75MM*25MM
IN STOCK
To Wishlist
Add to Cart



Standard Stack: F405 FC + 75A ESC 4-in-1 30x30 Technical Brief

System Overview

High-performance flight control and power system designed for 5-13" FPV drones, featuring robust STM32F405 processing and high-current ESC capabilities in a 30×30mm stackable form factor.

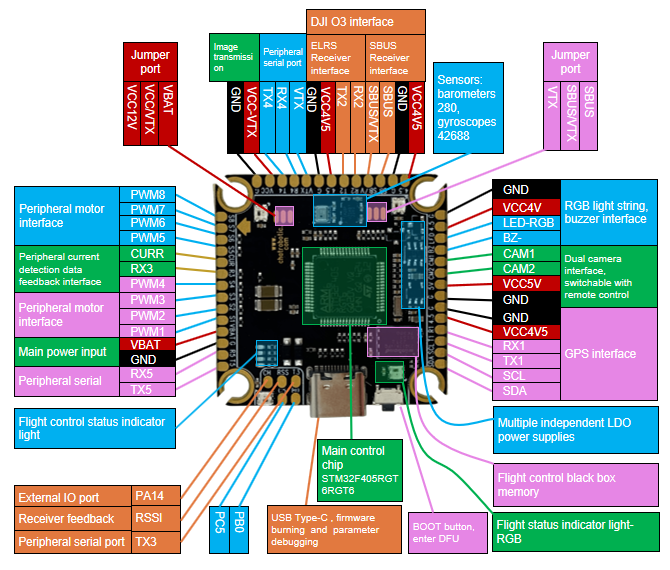

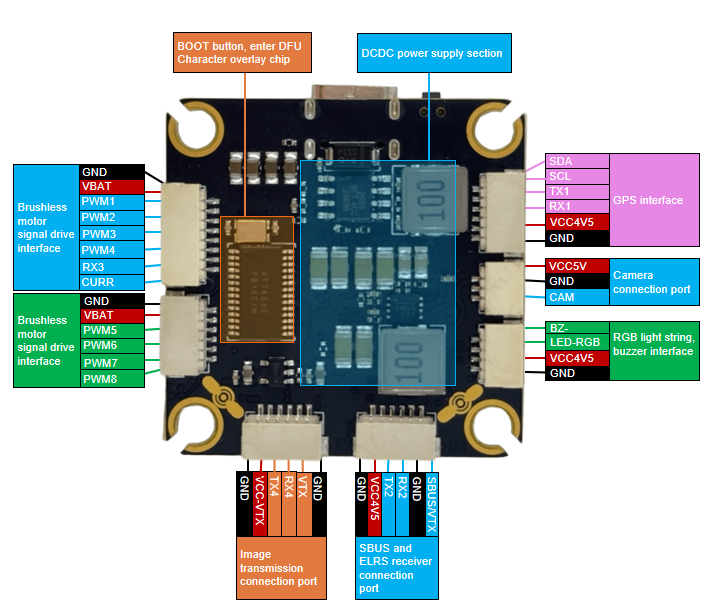

1. Flight Controller Specifications

ParameterSpecification
MCUSTM32F405RGT6 (168MHz Cortex-M4)
IMUBMI270 (SPI, 6.4kHz gyro)
Blackbox16MB Flash (4kHz logging)
Input Voltage2-8S LiPo (7.4-25.2V)
BEC Outputs5V@3A + 10V@3A
Connectivity4x UART, 2x I²C, 1x CANbus
USB InterfaceMicro-USB
OSD ChipAT7456E (Betaflight OSD)
Board Size37×37mm
Board Weight10.2g

2. 75A 4-in-1 ESC Specifications

ParameterSpecification
MCUF421-32BIT
Continuous Current75A/channel (300A total)
Burst Current90A/channel (5 sec)
ProtocolsDShot1200, Proshot32, PWM, Oneshot125
Input Voltage2-8S LiPo (7.4-33.6V)
Current Sensor±1.5% accuracy hall sensors
Installation positioning hole30×30mm
Board Weight28.6g

3. Combined Features

Power System

  • • Integrated PDB: Direct battery connection with 18x100μF ceramic capacitors

  • • Surge Protection: 40V transient voltage suppression (TVS array)

  • • Active EMI Filtering: Triple-stage noise reduction for video systems

  • • Stackable Design: 30×30mm mounting pattern with M3 screws

Integration

  • • HD FPV System Support: Dedicated 5V/3A regulated outputs for cameras

  • • ESC Telemetry: Real time monitoring of speed/current through serial port

  • • Barometer Sensor: Built-in altitude hold functionality

4. Safety Features

Flight Controller Protections

Protection TypeSpecificationImplementation
Voltage Spike Protection40V TVS diodes + active clamping circuit
Gyro Vibration DampingReduces >5kHz vibrations by 90%Aluminum gasket + dynamic notch filter
Single Power Inputs2S-8S

ESC Protections

Protection TypeThresholdResponse TimeTrigger Condition
Hardware Overcurrent95A per channel≤2 secondsMOSFET desaturation
Software Overcurrent75A continuous≤10 secondsSustained high current
Short CircuitInstant cutoff<50μsPhase-to-phase fault
Over-temperature110°C (MOSFET)<500μsThermal runaway
Low Voltage Cutoff3.2V/cell configurable<100msBattery protection

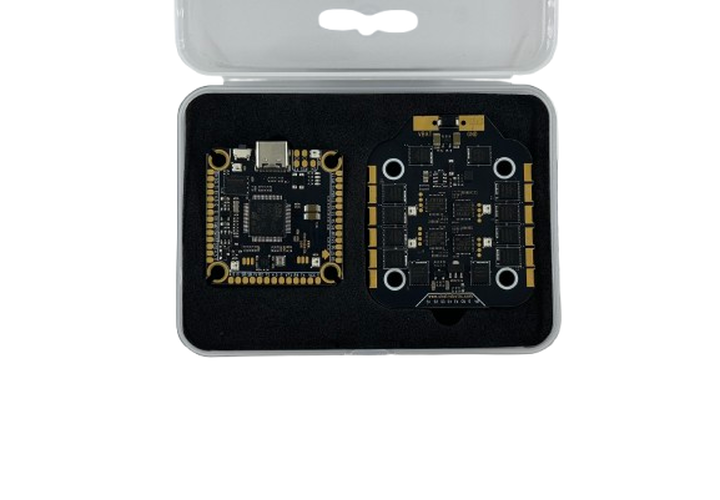

5. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end

  • • 5x M3*10mm shock-absorbing balls

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor.

  • • 1x XT60-male 12AWG silicone cable 15cm length.

  • • 5x M3*8mm shock-absorbing balls

6. Connection Diagram

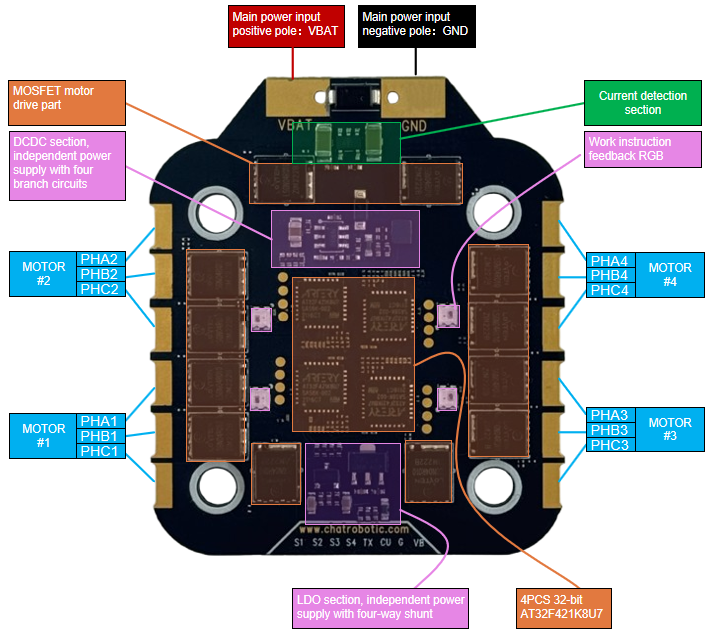

85A4IN1 ESC1.png

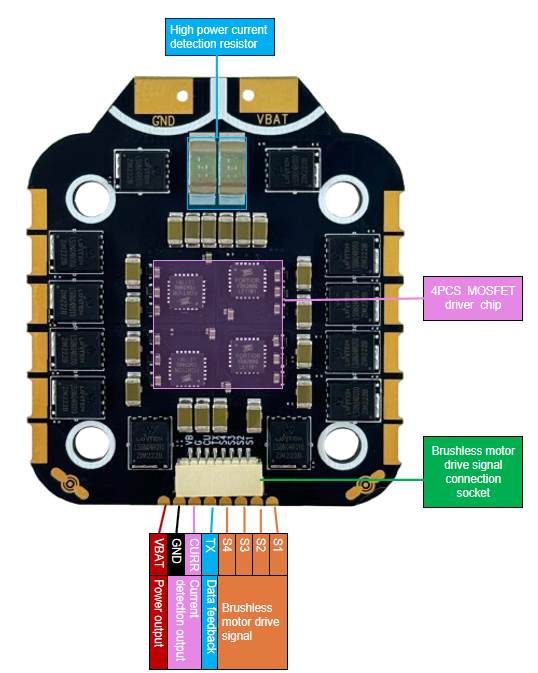

85A4IN1 ESC2.png
