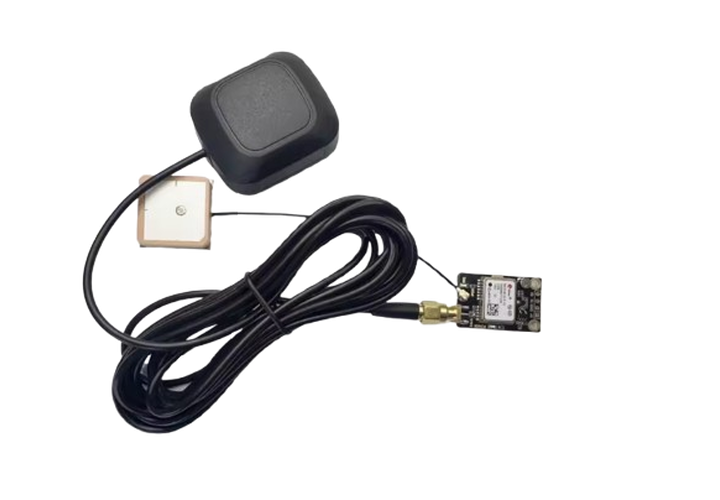

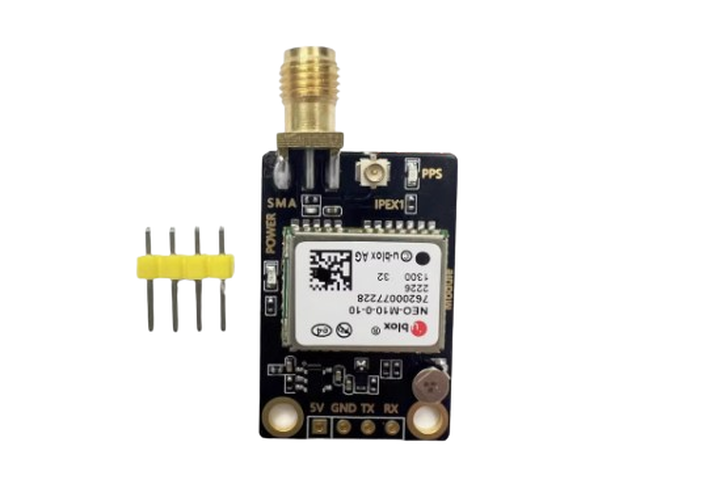

This advanced positioning module integrates u-blox M10 GNSS technologies on a unified baseboard, delivering multi-frequency, multi-constellation support for high-dynamic applications. Designed for drones, autonomous vehicles, and precision agriculture, it achieves centimeter-level accuracy (RTK-enabled) while maintaining ultra-low power consumption. The baseboard provides unified power management, signal fusion algorithms, and industrial-grade interfaces:cite[2]:cite[6]:cite[8].
| Parameter | Technical Value |
| GNSS Platforms | u-blox M10 + TAU1201 (Huada) + ATGM332D (ATK) |
| Supported Systems | GPS L1/L5, BDS B1/B2a/B2b/B3I, GLONASS L1, Galileo E1/E5a, QZSS, SBAS |
| Channels | 256 total (M10: 184, TAU1201: 40, ATGM332D: 32) |
| Update Rate | Configurable 1–20Hz (max 25Hz for M10 in single-mode) |
| Positioning Accuracy | • Single-point: 1.0m CEP (open sky) • RTK: 0.01m (horizontal) |
| Interfaces | 2× UART, 1× USB 2.0, 1× SPI, 1× I²C, 1× CAN |
| Voltage Range | 3.0V–5.5V (baseboard LDO supports 2.7–6V input) |
| Dimensions | 45×30×8.2mm (baseboard + stacked modules) |
| Weight | 12g |
• Triple-Engine Fusion
Combines M10's anti-jamming, TAU1201's dual-band L1/L5 signals, and ATGM332D's BeiDou III multi-frequency support for 99.9% signal availability:cite[1]:cite[2]:cite[6].
• Dynamic Power Management
• Active Mode: 85mA @3.3V (all engines)
• Eco Mode: 12mA (M10 only)
• Sleep Mode: 20μA (TAU1201 backup):cite[6]:cite[10].
• Hardware Accelerators
• RTK/PPP correction engine (supporting RTCM 3.3)
• 6-axis MEMS-IMU for dead reckoning (tunnels/urban canyons):cite[6]:cite[8]
• Baseboard Enhancements
• SMA/U.FL dual antenna ports
• ESD protection (±15kV)
• Onboard temperature-compensated oscillator (TCXO)
| Metric | M10 | TAU1201 | ATGM332D | Fusion Mode |
| Cold Start TTFF | ≤28s | ≤32s | ≤23s | ≤15s |
| Hot Start TTFF | 0.1s | 1s | 1s | 0.1s |
| Tracking Sensitivity | -166dBm | -162dBm | -162dBm | -168dBm |
| Velocity Accuracy | 0.01m/s | 0.05m/s | 0.1m/s | 0.005m/s |
| Mode | Current | Use Case |
| High Precision | 85mA | RTK surveying, autonomous navigation |
| Balanced | 44mA | Agricultural drone mapping |
| Eco | 12mA | Asset tracking (monthly battery life) |
• RTK centimeter-level landing for logistics drones
• 20Hz update rate for FPV racing drone rescue mode:cite[8]:cite[10]
• BeiDou III multi-frequency crop spraying (B2a/B2b signals)
• Soil sampling path planning with <1m error:cite[6]:cite[8]
• Sensor fusion for lane-level positioning (CAN bus output)
• Tunnel navigation via MEMS-IMU dead reckoning:cite[6]
• Temp Range: -40°C to +85°C (operational)
• Vibration: 5Grms (MIL-STD-810G)
• Waterproof: IP67 (baseboard conformal coating)
• EMC: EN 303 413 / FCC Part 15B compliant
