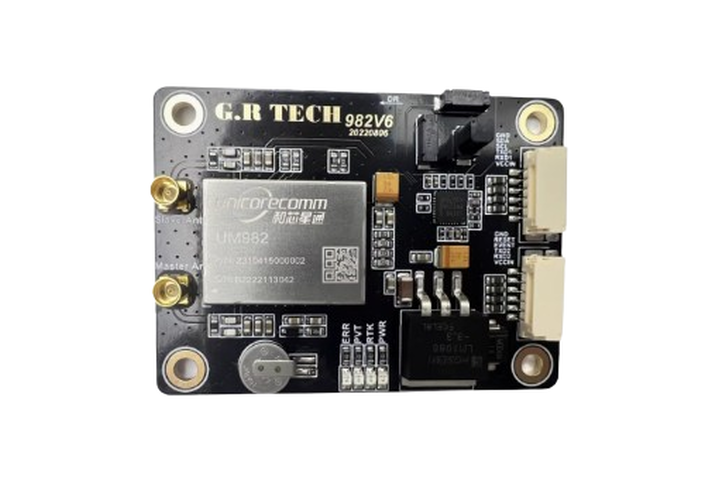

The UM982V6 integrates Unicore UM982 dual-antenna RTK module and RMS3100 high-precision magnetometer for centimeter-level positioning and heading control. Designed for autonomous drones, agricultural robotics, and industrial navigation, it delivers concurrent multi-GNSS processing with 20Hz RTK+Heading output via TTL interfaces. The module features ultra-compact design, industrial-grade resilience, and plug-and-play compatibility with major flight controllers:cite[1]:cite[2].
| Parameter | Technical Value |
| GNSS Platform | Unicore UM982 (NebulasIV SoC) |
| Supported Systems | BDS B1I/B2I/B3I/B1C*/B2b*, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/E5a/E5b/E6*, QZSS, SBAS:cite[1] |
| Update Rate | 20Hz (RTK + Heading) |
| Positioning Accuracy | • RTK: 0.8cm+1ppm (horiz), 1.5cm+1ppm (vert) • PPP: 5cm (horiz):cite[1] |
| Compass | RMS3100 Magnetometer (±0.1° accuracy) |
| Data Output | TTL (3× UART @ 115200bps default) |
| Voltage Range | 3.3V-5.5V DC |
| Power Consumption | <0.6W (avg) / 1.2W (peak):cite[2] |
| Dimensions | 45×30×12mm (integrated board) |
| Weight | 8.2g |
• Dual-RTK Engine
Simultaneously processes two-antenna signals for 0.1° heading accuracy and 99.9% initialization reliability:cite[1]:cite[2].
• Anti-Interference Tech
60dB narrowband suppression and spoofing detection for operation in complex EMI environments:cite[1].
• Multi-Frequency PPP Support
Compatible with B2b-PPP, E6-HAS, and QZSS L6E correction services:cite[1].
• Plug-and-Play Flight Control
Pre-configured UBX/NMEA protocols for Betaflight, ArduPilot, and PX4 integration.
• Thermal Resilience
-40°C to +85°C operational range with MIL-STD-810F vibration/shock immunity:cite[1].
| Metric | Performance |
| Cold Start TTFF | ≤30s |
| RTK Initialization | ≤5s (typ) |
| Velocity Accuracy | 0.03m/s (RMS) |
| Heading Accuracy | 0.1° RMS @1m baseline |
| Mode | Current |
| RTK+Heading (20Hz) | 180mA |
| Compass Only | 15mA |
• Centimeter-precision landing for logistics drones
• Dual-antenna heading lock for agricultural spraying:cite[2]
• AGV navigation in warehouses
• Solar farm inspection robots
• Autonomous tractor guidance (PPP/RTK)
• Crop health mapping with 5cm accuracy
• Temp Range: -40°C to +85°C (operational):cite[1]
• Humidity: 95% non-condensing
• Vibration: 5Grms (MIL-STD-810F compliant):cite[1]
• EMC: FCC/CE/RoHS certified
