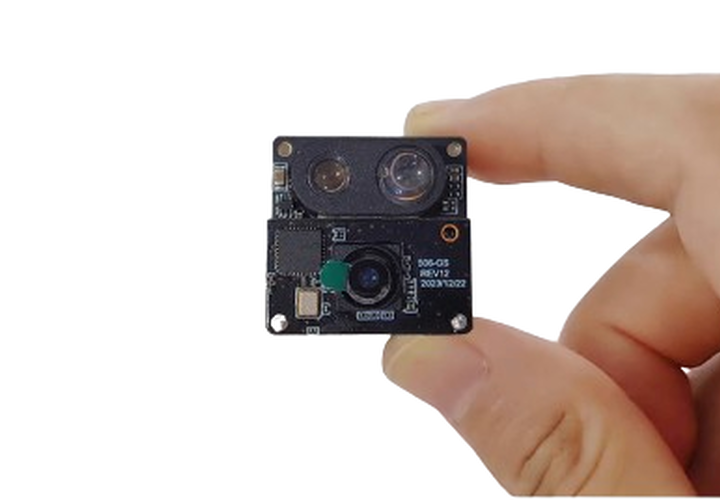

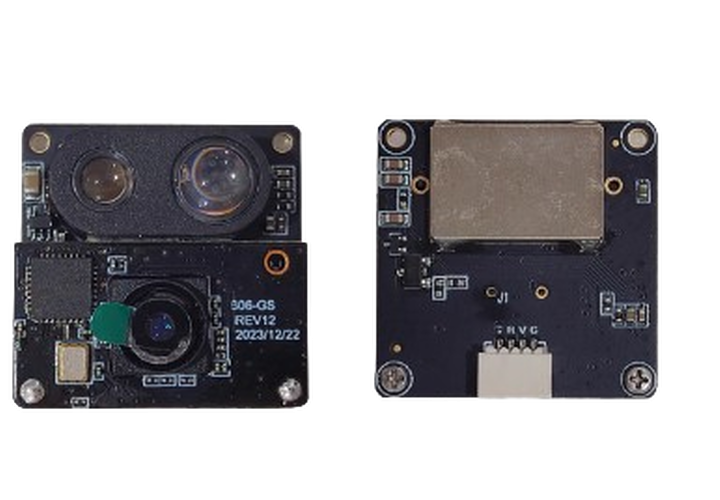

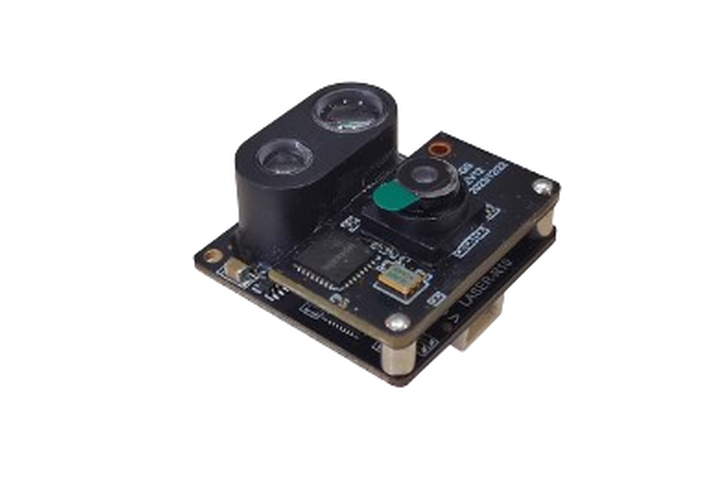

The UP-T201 integrates a high-precision optical flow sensor and 15m laser rangefinder in a ruggedized module, designed for drone positioning in GPS-denied environments. Utilizing a 160×120 pixel global shutter CMOS and Class 1 IR laser, it achieves ±0.1m/s velocity measurement accuracy and ±1% ranging resolution. With IP67-rated aluminum housing and -30°C to +70°C operating range, it supports autonomous indoor/outdoor navigation, precision landing, and obstacle avoidance for industrial drones, inspection robots, and AGVs.
| Parameter | Specification |
| Sensor Resolution | 160×120 @ 120 FPS (Global Shutter) |
| FoV | 42°×34° (H×V) |
| Max Detection Range | 30 m (Natural light); 15 m (Low light) |
| Velocity Accuracy | ±0.1 m/s (≤2m height) |
| Output Rate | 60 Hz (Flow); 100 Hz (Fused data) |
| Parameter | Specification |
| Range | 0.1–15 m |
| Accuracy | ±1% (0.1–10 m); ±2% (10–15 m) |
| Beam Type | 905 nm IR Class 1 (Eye-safe) |
| Surface Adaptivity | Auto-compensation for 5%-95% reflectivity |
• 3D Velocity: XYZ axis @ 100 Hz
• Terrain Height: 0.01 m resolution
• Quality Metric: opt_qua (0–100 scale)
| Characteristic | Specification |
| Dimensions | 44 × 36 × 25 mm (L×W×H) |
| Weight | 48 g (Including cable) |
| Housing | Hard-anodized aluminum (IP67) |
| Operating Temp. | -30°C to +70°C |
| Vibration Resistance | 6G (20–2000 Hz) |
| Lens Protection | Sapphire-coated window (Scratch-proof) |
| Parameter | Specification |
| Power Supply | 4.5–5.5 VDC |
| Power Consumption | 1.2 W (Typical); 2.5 W (Peak) |

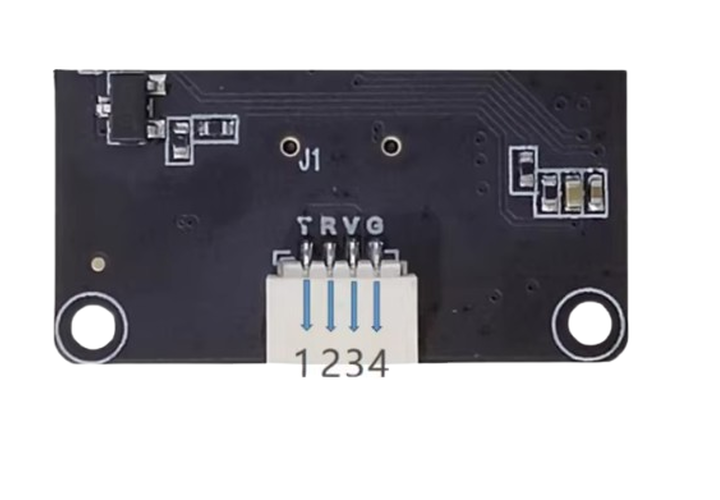

| Communication | UART (3.3V TTL); I²C |
| Protocols | MAVLink (PX4 default); Custom binary |
| Data Output | OPTICAL_FLOW_RAD + DISTANCE_SENSOR MAVLink messages |
• Texture Tracking: Works on concrete/grass/tiles with >20% pattern variation
• Low-Light Operation: Integrated IR illuminator enables 0 lux performance
• Vibration Rejection: Adaptive motion compensation up to 6G vibration
• Multi-surface Detection: Simultaneous ground and obstacle ranging
• Beam Divergence: 2 mrad (0.11° narrow beam)
• Fast Sampling: 250 Hz raw measurement rate
• Native Protocol Support: Direct MAVLink output to flight controller
• EKF2 Fusion Ready: Auto-configures EKF2_AID_MASK for flow integration
• Height Fusion: Seamless transition between laser/rangefinder/barometer
• Indoor Pipeline Scanning: 15m laser penetrates dark environments; optical flow resists dust interference
• Warehouse Inventory Robots: Centimeter-level positioning under 10m ceilings without GPS
• Precision Landing: Laser-guided descent within 20cm accuracy at 10m height
• Urban Canyon Navigation: Optical flow supplements GPS in high-rise shadow zones
