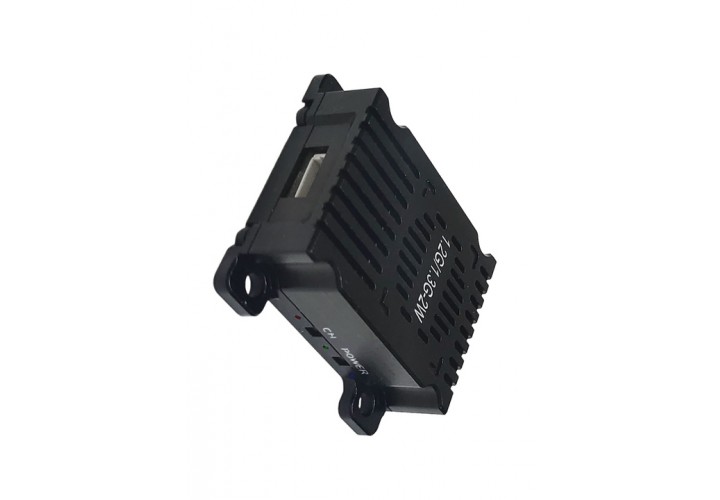

VTX 1.2/1.3G-2W Video Transmitter

FPV Electronics > VTX & Receiver

$42.90
The 1.2G/1.3G 2W Wireless Audio-Video Transmitter (VTX) is a high-power analog transmission module optimized for long-range FPV drones and remote surveillance systems.
SKU: 24031
Package weight: 0.03 KG
IN STOCK
To Wishlist
Add to Cart



1.2G/1.3G 2W Wireless Audio-Video Transmitter (VTX) | Full Specifications

Descriptions

The 1.2G/1.3G 2W Wireless Audio-Video Transmitter (VTX) is a high-power analog transmission module optimized for long-range FPV drones and remote surveillance systems. Operating in the 1060–1380MHz frequency band, it delivers stable video streaming with minimal latency in obstructed environments. Featuring an aluminum heatsink with active cooling and configurable power output, this VTX ensures reliable performance for industrial and hobbyist applications requiring robust signal penetration and extended operational range.

1. Main Specifications

ParameterSpecification
Frequency Band1.2G/1.3G (1060–1380MHz Tunable)
Output Power2W (Configurable: 25mW/2000mW) :cite[2]:cite[9]
Channel Support8–9 Channels (IRC Tramp Protocol) :cite[1]:cite[4]
Input VoltageDC 7–36V (2–8S Li-Po/Li-ion Compatible) :cite[1]:cite[3]
Video Input1.0Vp-p Composite (NTSC/PAL) :cite[4]:cite[6]
Audio Input1.0Vp-p Mono Carrier (6.5MHz ±50kHz) :cite[6]:cite[9]

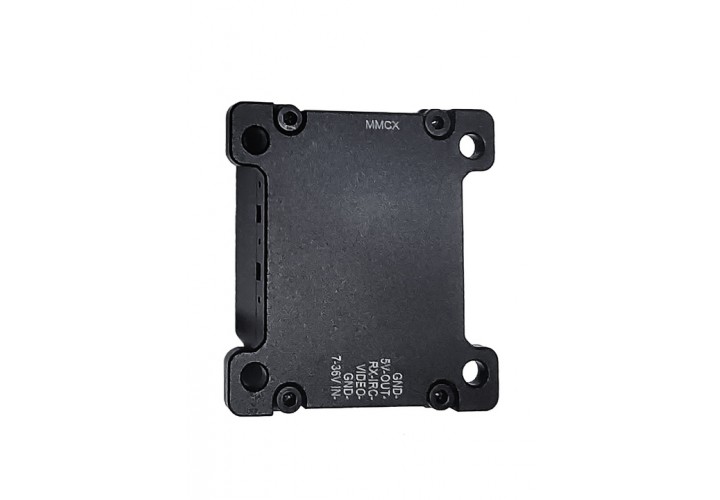

Antenna InterfaceMMCX (Standard) :cite[1]:cite[2]
Dimensions37.7mm × 36.1mm × 11mm :cite[1]
Weight16g (Excluding Antenna) :cite[1]
Mounting Hole Pattern30.5mm × 30.5mm / M3 Threads :cite[1]:cite[2]
Operating Temperature-20℃ to +50℃ :cite[4]:cite[9]

2. Key Features

  • • Dual-Power Mode: Switchable 25mW (indoor) / 2000mW (outdoor) for regulatory compliance and interference avoidance :cite[2]:cite[9].

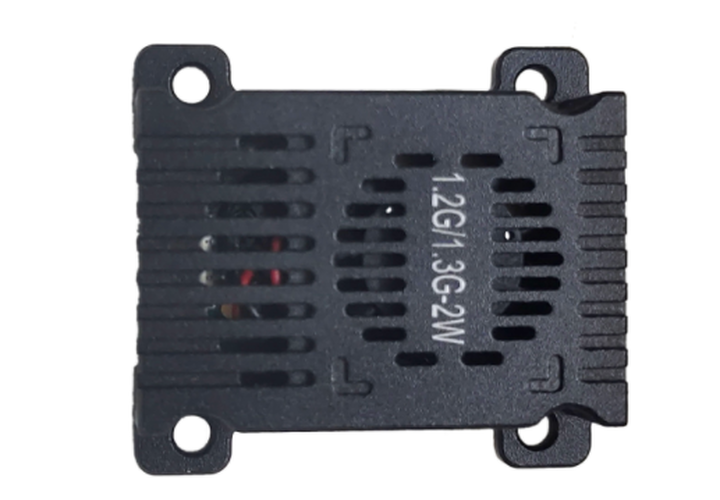

  • • Active Thermal Management: Aluminum heatsink + integrated fan for sustained 2W operation :cite[1]:cite[7].

  • • Wideband Frequency Agility: 8–9 channels with IRC Tramp protocol support for rapid channel switching :cite[1]:cite[3].

  • • High Penetration Capability: Superior signal penetration in urban/foliage environments vs. 2.4GHz/5.8GHz bands :cite[4]:cite[8].

  • • Low-Voltage Operation: Supports 2S–8S battery inputs without external voltage regulators :cite[1]:cite[3].

  • • EMI-Shielded Design: Reduces interference with GPS/control systems in multi-rotor setups :cite[8]:cite[9].

3. Performance Data (Typical @25°C)

EnvironmentRangeVideo QualityPower Consumption
Open Field≤ 2000mClear (SNR >48dB)850mA @12V :cite[9]
Urban Area≤ 400mModerate (Dynamic)900mA @12V :cite[7]
Heavy Obstruction≤ 150mSnow-Tolerant Recovery950mA @12V :cite[6]

4. Recommended Applications

  • • 🚁 FPV Drones & Aerial Platforms

    • • Long-range reconnaissance drones (up to 2km) :cite[4]:cite[9]

    • • Cinematic aerial filming with low-latency video feed

    • • Agricultural monitoring with obstacle-penetrating signals

  • • 📹 Remote Surveillance

    • • Covert security operations with compact form factor :cite[6]:cite[9]

    • • Industrial site inspection in RF-noisy environments

    • • Wildlife research telemetry systems

  • • 🏎️ RC Ground Vehicles

    • • Low-latency FPV racing systems (<20ms) :cite[8]

    • • Real-time telemetry for search-and-rescue robots

5. Thermal & Safety Characteristics

  • • Thermal Throttling: Power reduction to 1W @ 75°C; shutdown @ 95°C :cite[1]:cite[4].

  • • Overcurrent Protection: Auto-recovery circuit for voltage spikes (7–36V safe range) :cite[2]:cite[9].

  • • Cooling Performance: 10W/K thermal dissipation via forced airflow (heatsink + fan) :cite[1]:cite[7].

  • • Certifications: FCC Part 15/CE compliant (EMI/RFI shielding) :cite[8]:cite[9].
