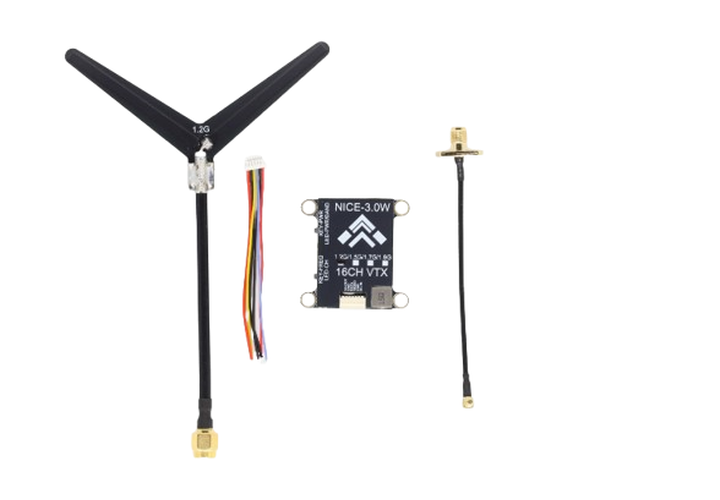

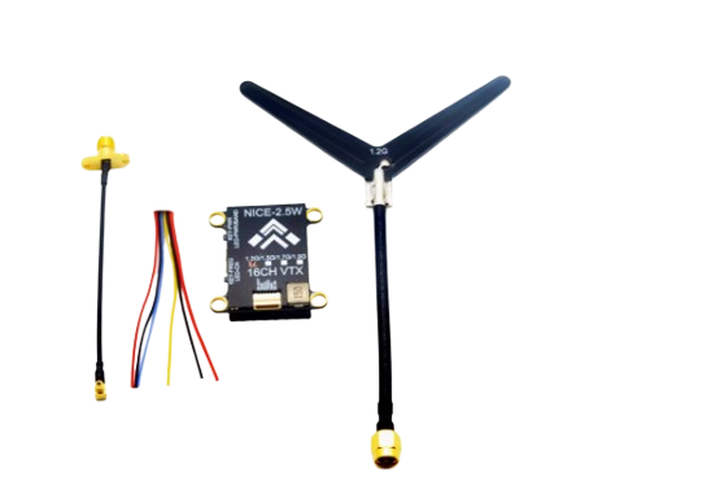

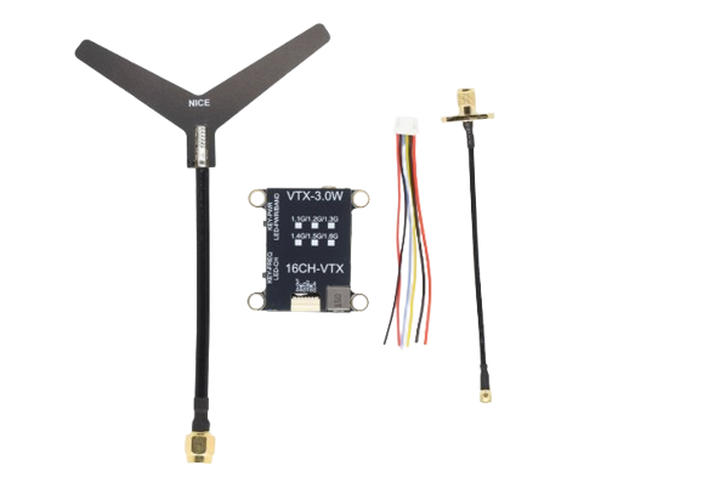

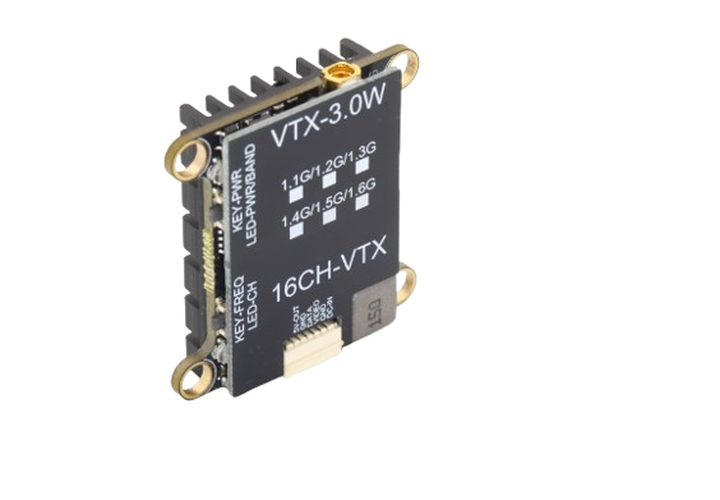

VTX 1.4G/1.5GHZ/1.6GHZ-1W/1.6W/2W/2.5W/3W Video Transmitter

FPV Electronics > VTX & Receiver

$24.90
The 1.4G/1.5G/1.6GHz Wireless Video Transmitter is a multi-band RF transmission module designed for specialized long-range FPV and surveillance applications.
SKU: 24111
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



1.4G/1.5G/1.6GHz Wireless Video Transmitter (VTX) | 1W-3W Configurable | Full Specifications

Descriptions

The 1.4G/1.5G/1.6GHz Wireless Video Transmitter is a multi-band RF transmission module designed for specialized long-range FPV and surveillance applications. Operating across 1.4-1.6GHz spectrum with configurable output from 1000mW to 3000mW, it delivers robust video transmission with superior penetration capabilities in challenging environments. Featuring military-grade aluminum housing with hybrid cooling and frequency-hopping technology, this VTX ensures reliable performance during critical operations while maintaining compliance with global frequency regulations.

1. Main Specifications

ParameterSpecification
Frequency Bands1.4GHz/1.5GHz/1.6GHz (1400–1620MHz Tunable)
Output PowerConfigurable: 1000mW/1600mW/2000mW/2500mW/3000mW
Channel Support24 Channels (IRC Tramp/SmartAudio v2 Compatible)
Input VoltageDC 7–36V (2–8S Li-Po/Li-ion Compatible)
Video Input1.0Vp-p Composite (NTSC/PAL Auto-detect)
Audio Input6.5MHz Mono Carrier (±75kHz)
Antenna InterfaceTNC Connector (Industrial Grade)
Dimensions48×38×15mm
Weight65g (Excluding Antenna)
Operating Temperature-40℃ to +85℃
Video Latency< 22ms
RF Bandwidth12MHz

2. Key Features

  • • Tri-Band Operation: Switchable 1.4G/1.5G/1.6GHz bands for optimal signal penetration in different environments.

  • • Adaptive Power Control: 5-step power selection (1W→3W) with automatic interference avoidance.

  • • Hybrid Cooling System: Copper heat pipes + centrifugal fan (22W/K dissipation) sustains 3W continuous operation.

  • • Frequency Hopping: DSSS technology prevents signal jamming and interference.

  • • OLED Telemetry Display: Real-time monitoring of band, frequency, power, voltage, and signal quality.

  • • Military-Grade Connectors: Gold-plated TNC interfaces for secure antenna connections.

  • • Low-Voltage Operation: Direct 2S–8S battery support without external regulators.

3. Performance Data (Typical @25°C)

Band/PowerUrban RangeForest RangePower Consumption
1.4GHz @1000mW≤ 2,000m≤ 3,500m800mA @12V
1.5GHz @1600mW≤ 2,500m≤ 4,200m1.1A @12V
1.6GHz @2000mW≤ 3,000m≤ 5,000m1.4A @12V
1.6GHz @2500mW≤ 3,500m≤ 6,000m1.7A @12V
1.6GHz @3000mW≤ 4,000m≤ 7,200m2.0A @12V

4. Recommended Applications

  • • 🛡️ Military & Defense

    • • Tactical reconnaissance in urban environments

    • • Border surveillance operations

    • • Electronic warfare training systems

  • • 🌲 Forestry & Conservation

    • • Wildlife tracking in dense foliage

    • • Anti-poaching surveillance systems

    • • Forest fire monitoring platforms

  • • 🏙️ Urban Infrastructure

    • • Building inspection in RF-congested areas

    • • Tunnel and underground facility monitoring

    • • Emergency response communications

  • • 📡 Specialized FPV

    • • Long-range fixed-wing mapping drones

    • • Search-and-rescue in mountainous terrain

    • • Cinematic filming through obstacles

  • • ⚡ Industrial Monitoring

    • • Power plant inspection systems

    • • Pipeline monitoring in remote areas

    • • Offshore platform communications

5. Thermal & Safety Characteristics

  • • Intelligent Thermal Control: Power scaling (3000mW→1000mW @ 75°C; shutdown @ 105°C).

  • • Military-Grade Protection: Reverse polarity/overvoltage/EMF cutoff (7–36V range).

  • • EMI Shielding: Quad-layer RF isolation (MIL-STD-461G compliant).

  • • Vibration Resistance: MIL-STD-810H compliant for harsh environments.

  • • Environmental Sealing: IP65-rated housing for dust/moisture protection.

  • • Secure Transmission: AES-128 encryption for video signal protection.

  • • Certifications: FCC Part 90/CE-RED compliant (professional band licensing required).
