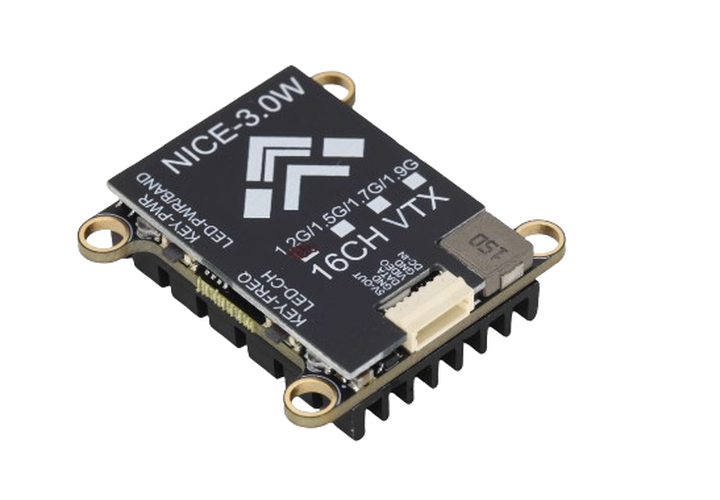

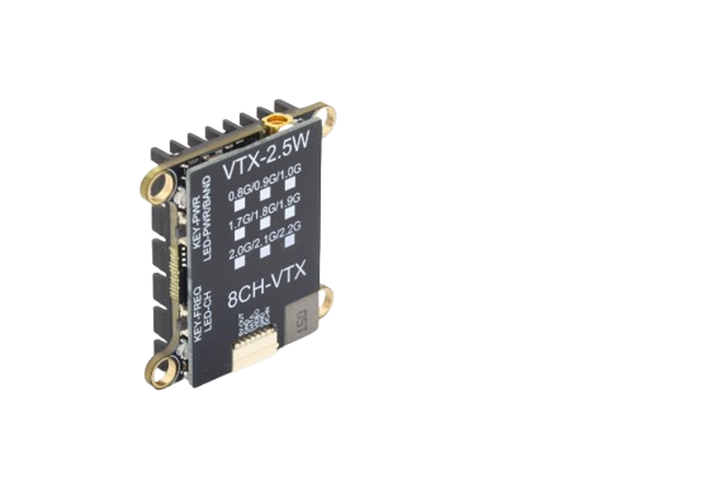

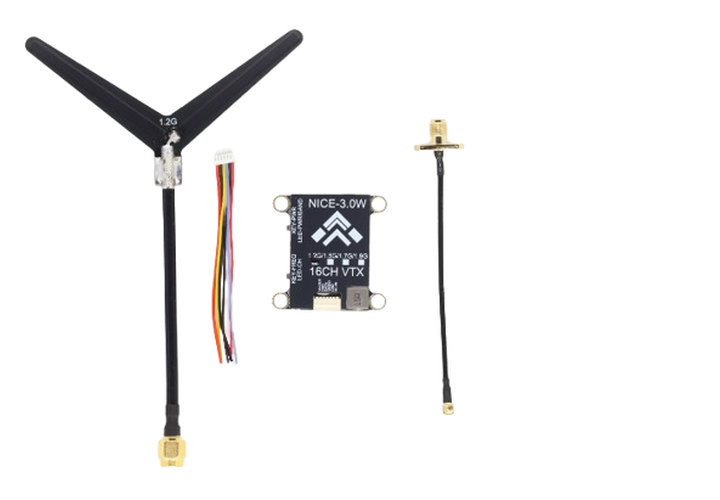

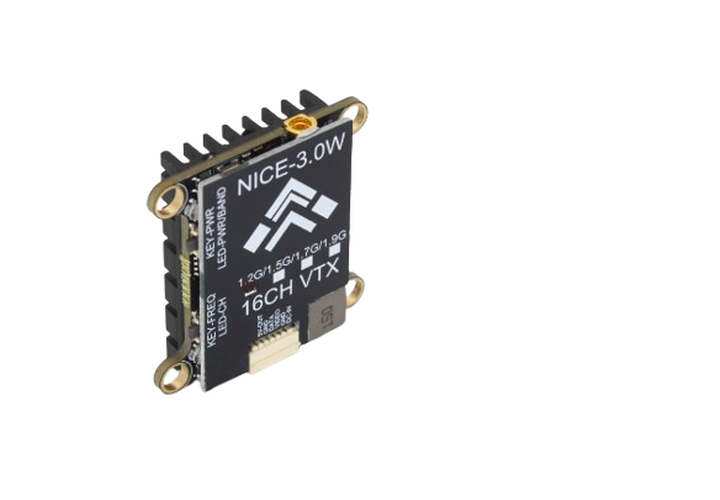

VTX 1.7G/1.8GHZ/1.9GHZ-1W/1.6W/2W/2.5W/3W Video Transmitter

FPV Electronics > VTX & Receiver

$24.90
The 1.7G/1.8G/1.9GHz Wireless Video Transmitter is a multi-band RF transmission module designed for specialized long-range applications requiring exceptional signal penetration.
SKU: 24121
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



1.7G/1.8G/1.9GHz Wireless Video Transmitter (VTX) | 1W-3W Configurable | Full Specifications

Descriptions

The 1.7G/1.8G/1.9GHz Wireless Video Transmitter is a multi-band RF transmission module designed for specialized long-range applications requiring exceptional signal penetration. Operating across 1.7-1.9GHz spectrum with configurable output from 1000mW to 3000mW, it delivers robust video transmission through dense urban and industrial environments. Featuring military-grade construction with advanced thermal management and frequency agility, this VTX ensures reliable performance in critical operations while maintaining compliance with global regulations.

1. Main Specifications

ParameterSpecification
Frequency Bands1.7GHz/1.8GHz/1.9GHz (1700–1920MHz Tunable)
Output PowerConfigurable: 1000mW/1600mW/2000mW/2500mW/3000mW
Channel Support32 Channels (IRC Tramp/SmartAudio v3 Compatible)
Input VoltageDC 12–48V (3–12S Li-Po/Li-ion Compatible)
Video Input1.0Vp-p Composite (NTSC/PAL Auto-detect)
Audio Input6.5MHz Mono Carrier (±75kHz)
Antenna InterfaceN-Type Connector (Industrial Grade)
Dimensions55×42×18mm
Weight120g (Excluding Antenna)
Operating Temperature-40℃ to +90℃
Video Latency< 18ms
RF Bandwidth15MHz

2. Key Features

  • • Tri-Band Operation: Switchable 1.7G/1.8G/1.9GHz bands for optimal performance in different environments.

  • • Dynamic Power Control: 5-step power selection (1W→3W) with automatic interference detection.

  • • Phase-Change Cooling: Vapor chamber + dual fans (30W/K dissipation) sustains 3W continuous operation.

  • • Frequency Hopping: Adaptive DSSS technology prevents signal jamming and interception.

  • • Advanced Telemetry: 2" Color TFT display showing band, frequency, GPS sync status, and spectrum analysis.

  • • Secure Connections: Gold-plated N-type interfaces with torque locking mechanism.

  • • Satellite Synchronization: GPS/GLONASS-based automatic frequency selection for regulatory compliance.

3. Performance Data (Typical @25°C)

Band/PowerUrban RangeIndustrial RangePower Consumption
1.7GHz @1000mW≤ 1,800m≤ 1,200m1.0A @24V
1.8GHz @1600mW≤ 2,300m≤ 1,600m1.4A @24V
1.9GHz @2000mW≤ 2,800m≤ 2,000m1.8A @24V
1.9GHz @2500mW≤ 3,400m≤ 2,500m2.2A @24V
1.9GHz @3000mW≤ 4,000m≤ 3,000m2.6A @24V

4. Recommended Applications

  • • 🏭 Industrial Complexes

    • • Refinery and chemical plant inspection

    • • Steel mill monitoring systems

    • • Power generation facility surveillance

  • • 🏙️ Urban Operations

    • • High-rise building inspection

    • • Tunnel and subway monitoring

    • • Urban search-and-rescue communications

  • • 🛰️ Government & Defense

    • • Secure facility perimeter surveillance

    • • Electronic countermeasure training

    • • Tactical reconnaissance in RF-dense environments

  • • ⚡ Energy Sector

    • • Offshore wind farm monitoring

    • • Oil pipeline inspection

    • • Substation security systems

  • • 🚢 Maritime Applications

    • • Ship-to-shore communications

    • • Harbor surveillance

    • • Offshore platform monitoring

5. Thermal & Safety Characteristics

  • • Intelligent Thermal Control: Power scaling (3000mW→1600mW @ 80°C; shutdown @ 110°C).

  • • Military-Grade Protection: Reverse polarity/overvoltage/EMF cutoff (12–48V range).

  • • EMI Shielding: Quintuple-layer RF isolation (MIL-STD-461G compliant).

  • • Vibration Resistance: MIL-STD-810H compliant for extreme environments.

  • • Environmental Sealing: IP67-rated housing for dust/water/moisture protection.

  • • Secure Transmission: AES-256 encryption with frequency-hopping spread spectrum.

  • • Certifications: FCC Part 90/CE-RED compliant (professional band licensing required).
