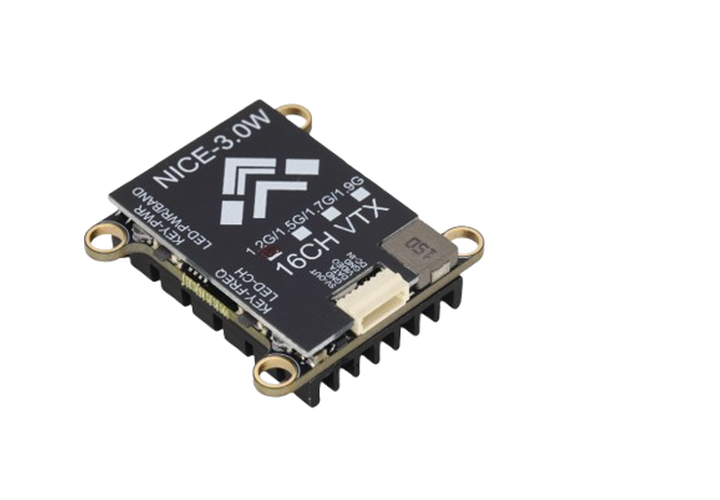

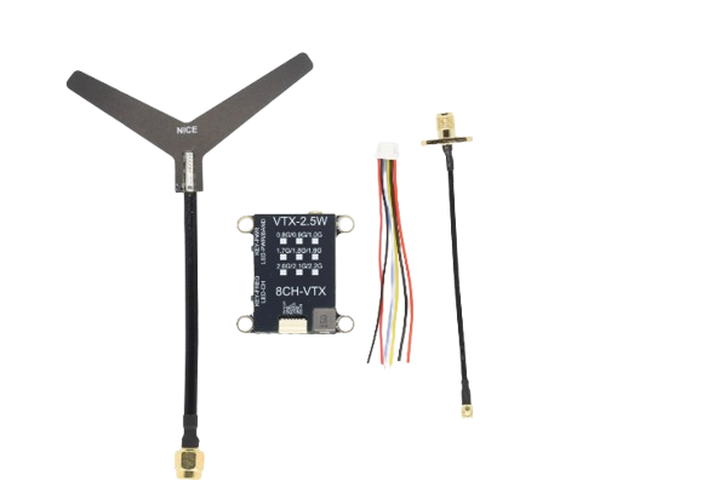

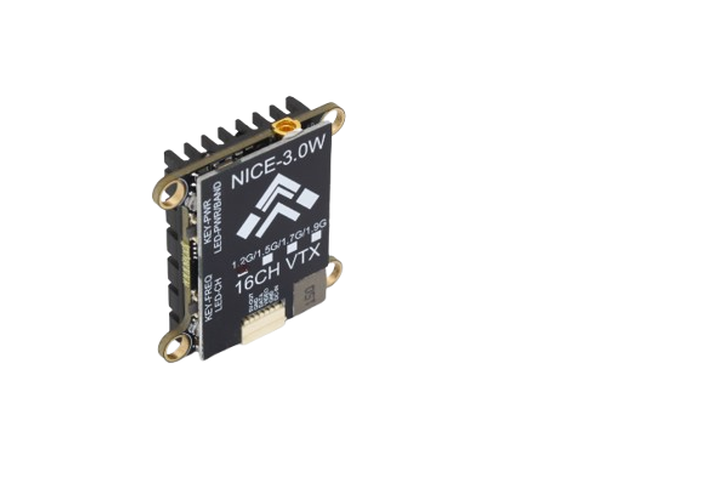

VTX 2.0G/2.1GHZ/2.2GHZ-1W/1.6W/2W/2.5W/3W Video Transmitter

FPV Electronics > VTX & Receiver

$24.90
The 2.0G/2.1G/2.2GHz Wireless Video Transmitter is a multi-band, high-power RF transmission module engineered for long-range FPV drones and industrial surveillance systems.
SKU: 24131
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



2.0G/2.1G/2.2GHz Wireless Video Transmitter (VTX) | 1W-3W Configurable | Full Specifications

Descriptions

The 2.0G/2.1G/2.2GHz Wireless Video Transmitter is a multi-band, high-power RF transmission module engineered for long-range FPV drones and industrial surveillance systems. Operating across the 2000–2200MHz spectrum with configurable output up to 3000mW, it delivers robust video penetration in urban and obstructed environments. Featuring aerospace-grade thermal management with phase-change cooling and COFDM modulation, this VTX ensures ultra-low-latency transmission for critical operations while complying with global frequency regulations:cite[6]:cite[7]:cite[8].

1. Main Specifications

ParameterSpecification
Frequency Bands2.0GHz/2.1GHz/2.2GHz (2000–2200MHz Tunable)
Output PowerConfigurable: 1000mW/1600mW/2000mW/2500mW/3000mW
Channel Support16 Channels (SmartAudio v3/IRC Tramp Compatible)
Input VoltageDC 12–48V (3–12S Li-Po/Li-ion Compatible)
Video Input1.0Vp-p Composite (NTSC/PAL Auto-detect)
Audio Input6.5MHz Mono Carrier (±75kHz)
Antenna InterfaceN-Type Connector (Industrial Grade)
ModulationCOFDM with QPSK/16QAM:cite[7]
Dimensions60×45×18mm
Weight110g (Excluding Antenna)
Operating Temperature-40℃ to +90℃
Video Latency< 15ms
RF Bandwidth8MHz

2. Key Features

  • • Tri-Band Agility: Switchable 2.0G/2.1G/2.2GHz bands for optimal signal penetration in urban/industrial environments:cite[6]:cite[8].

  • • Dynamic Power Control: 5-step power selection (1W→3W) with auto-interference detection and frequency hopping:cite[7].

  • • Phase-Change Cooling: Vapor chamber + dual centrifugal fans (25W/K dissipation) sustains 3W continuous operation:cite[8].

  • • COFDM Modulation: Non-Line-of-Sight (NLOS) capability with AES-256 encryption for secure transmission:cite[7].

  • • Dual Power Inputs: Redundant XT60 connectors for fail-safe long-endurance flights:cite[1]:cite[6].

  • • Telemetry Dashboard: 2.4" TFT display showing band, frequency, GPS sync status, and thermal metrics:cite[8].

  • • Harmonic Suppression: Quad-shielded RF chamber with -60dBc harmonic rejection:cite[6].

3. Performance Data (Typical @25°C)

Band/PowerUrban RangeIndustrial RangePower Consumption
2.0GHz @1000mW≤ 1,500m≤ 1,000m1.2A @24V
2.1GHz @1600mW≤ 2,000m≤ 1,400m1.6A @24V
2.2GHz @2000mW≤ 2,500m≤ 1,800m2.0A @24V
2.2GHz @2500mW≤ 3,000m≤ 2,200m2.4A @24V
2.2GHz @3000mW≤ 3,500m≤ 2,600m2.8A @24V

4. Recommended Applications

  • • 🏙️ Urban Search & Rescue

    • • Building inspection in RF-congested environments

    • • Tunnel and subway emergency communications

    • • Disaster response operations with NLOS capability:cite[7]

  • • 🛰️ Defense & Security

    • • Tactical reconnaissance in electronic warfare zones

    • • Border surveillance with encrypted video links

    • • Secure facility monitoring:cite[8]

  • • ⚡ Industrial Monitoring

    • • Power plant and refinery inspection

    • • Offshore oil rig communications

    • • Pipeline security in remote areas:cite[6]:cite[8]

  • • ✈️ Long-Range FPV Drones

    • • BVLOS cargo delivery monitoring

    • • Cinematic filming through urban obstacles

    • • Agricultural surveying in hilly terrain:cite[1]:cite[3]

  • • 📡 Broadcast & Event Production

    • • Live event backhaul feeds

    • • Mobile camera uplinks

    • • Satellite-synchronized multi-camera systems:cite[7]

5. Thermal & Safety Characteristics

  • • Intelligent Thermal Control: Power scales dynamically (3000mW→1600mW @ 80°C; shutdown @ 110°C):cite[8].

  • • Military-Grade Protection: Reverse polarity/overvoltage/EMF cutoff (12–48V range) with auto-recovery:cite[1]:cite[6].

  • • Vibration Resistance: MIL-STD-810H compliant for high-G environments:cite[8].

  • • EMI Shielding: Quintuple-layer RF isolation (FCC Part 90/CE-RED compliant):cite[7]:cite[8].

  • • Environmental Sealing: IP67-rated housing for dust/water/moisture protection:cite[6].

  • • Secure Transmission: COFDM with AES-256 encryption and frequency hopping:cite[7].

  • • Certifications: FCC ID/CE-RED/IC (region-locked frequencies; professional licensing required for 2.0–2.2GHz bands):cite[7]:cite[8].
