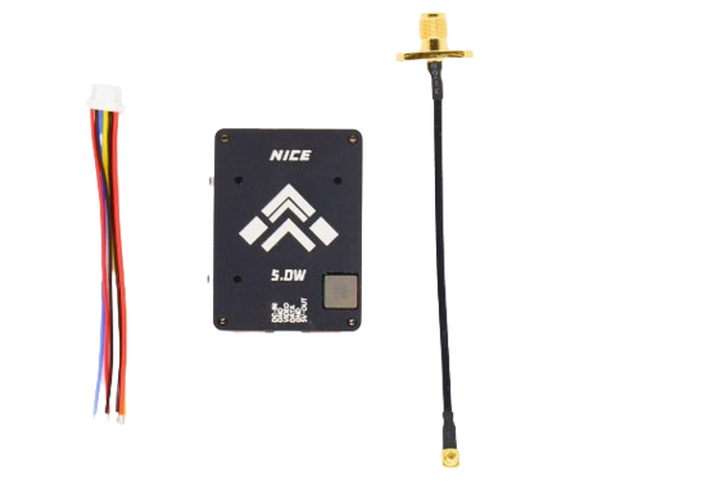

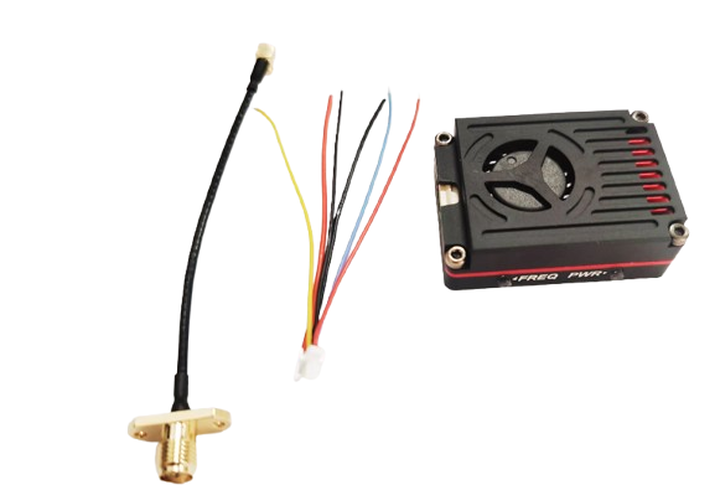

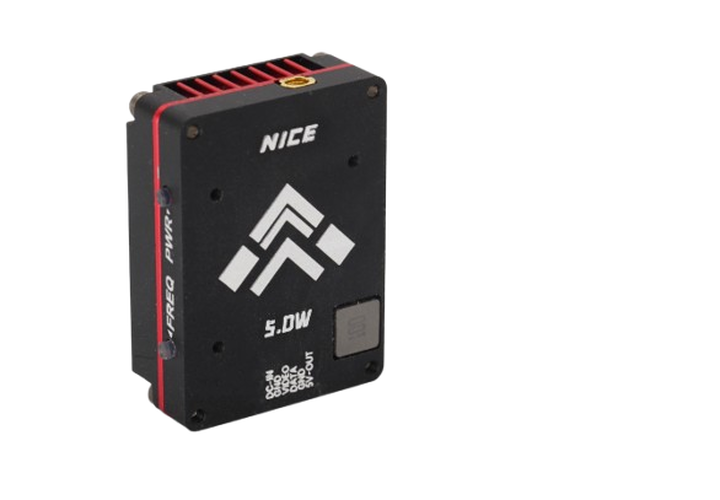

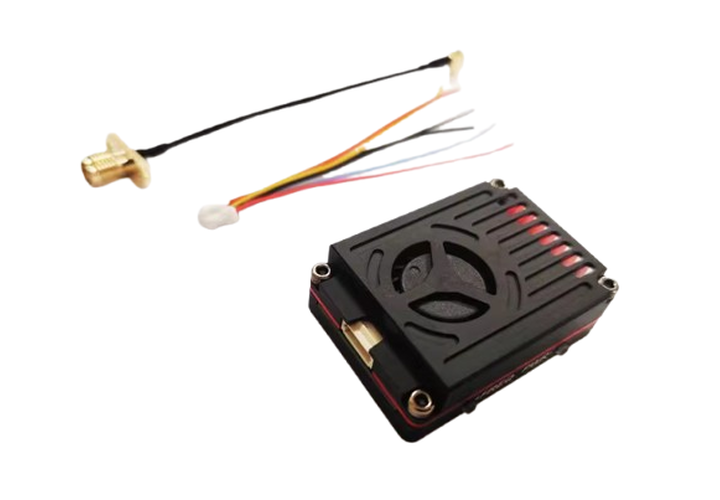

The 5W (5000mW) Long-Range 5.8G FPV Video Transmitter is an ultra-high-power transmission module engineered for extreme-distance fixed-wing operations and professional BVLOS missions. Operating in the 5.725–5.850GHz ISM band with configurable output up to 5000mW, it delivers industry-low latency video streaming in challenging environments. Featuring military-grade thermal management with phase-change cooling and redundant power systems, this VTX ensures reliable performance during extended endurance flights while maintaining compliance with global frequency regulations.
| Parameter | Specification |
| Frequency Band | 5.8GHz (5725–5875MHz Tunable) |
| Output Power | 5000mW (Configurable: 25mW/500mW/1000mW/2500mW/5000mW) |
| Channel Support | 40 Channels (IRC Tramp/SmartAudio v3 Compatible) |
| Input Voltage | DC 12–52V (3–12S Li-Po/Li-ion Compatible) |
| Video Input | 1.0Vp-p Composite (NTSC/PAL Auto-detect) |
| Audio Input | 6.5MHz Mono Carrier (±75kHz) |
| Antenna Interface | N-Type Connector (Industrial Grade) |
| Dimensions | 70×50×22mm |
| Weight | 150g (Excluding Antenna) |
| Operating Temperature | -40℃ to +95℃ |
| Video Latency | < 12ms |
| RF Bandwidth | 15MHz |
• Extreme Power Output: Industry-leading 5000mW transmission for beyond-horizon operations.
• Phase-Change Cooling: Vapor chamber + triple centrifugal fans (35W/K dissipation) sustains 5W continuous operation.
• Hex Power Inputs: Redundant XT90 connectors for parallel battery connections during 12+ hour flights.
• Advanced Telemetry: 2.4" Color TFT display showing frequency, power, GPS coordinates, and spectrum analysis.
• Harmonic Suppression: Quintuple-shielded RF chamber with -65dBc harmonic rejection.
• Satellite Synchronization: GPS-based automatic frequency selection for cross-border compliance.
• Redundant Control: Dual MCU architecture with failover protection.
| Antenna Configuration | Range | Video Quality | Power Consumption |
| Panel-to-Panel (19dBi/28dBi) | ≤ 20,000m | Clear (SNR >48dB) | 3.8A @24V |
| Directional Array (24dBi/32dBi) | ≤ 35,000m | HD Equivalent | 4.5A @24V |
| Parabolic System (30dBi/36dBi) | ≤ 60,000m | Moderate (Dynamic) | 6.2A @24V |
• ✈️ Ultra-Long-Range Fixed-Wing Platforms
• Transoceanic research missions
• Pipeline monitoring beyond 50km
• Stratospheric atmospheric sampling
• 🛰️ Government & Defense Systems
• Border surveillance beyond 80km range
• Maritime reconnaissance in EEZ zones
• Tactical operations in electronic warfare environments
• 📡 Scientific & Commercial
• Wildlife conservation tracking
• Mineral exploration in remote areas
• Long-endurance cargo drone monitoring
• Intelligent Thermal Control: Dynamic power scaling (5000mW→2500mW @ 80°C; shutdown @ 110°C).
• Military-Grade Protection: Reverse polarity/overvoltage/overcurrent cutoff (12–52V safe range).
• Vibration Resistance: MIL-STD-810H compliant for extreme vibration environments.
• EMI Shielding: Aerospace-grade RF isolation (FCC Part 15/CE/RoHS compliant).
• Quad-Redundant Safety: Triple thermal sensors + watchdog circuit + auto-reset fuse.
• Certifications: FCC ID/CE-RED/IC (region-locked frequency compliance).
• Environmental Sealing: IP67-rated housing for all-weather operation.
