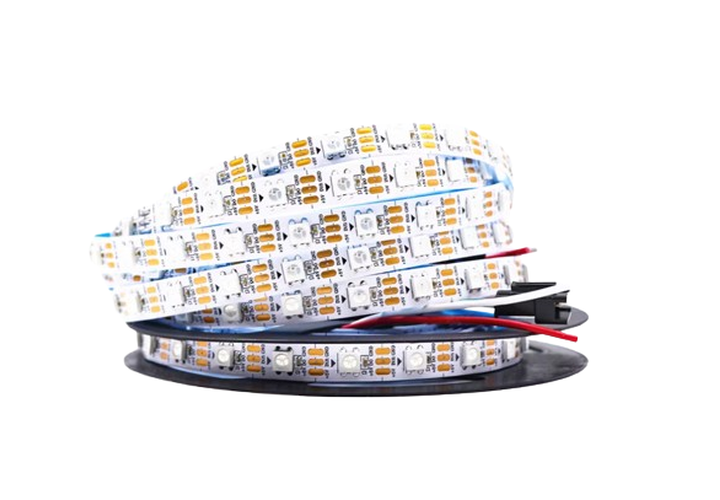

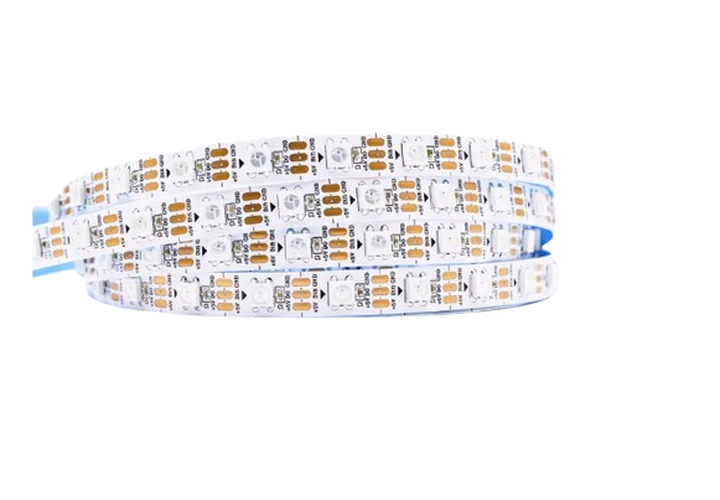

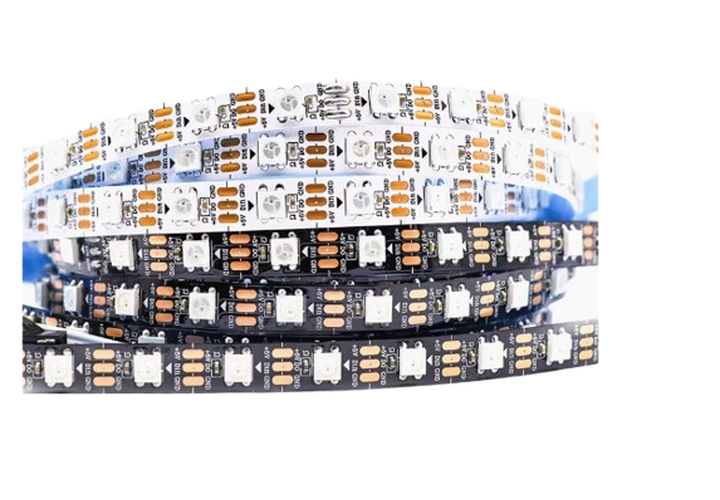

The WS2812 addressable LED strip features 30 individually controllable RGB LEDs per meter on a white flexible PCB, providing high-density pixel lighting for dynamic visual effects. Utilizing WS2812B integrated chips embedded within each 5050 LED package, it enables full-color programming via single-wire data protocol. This strip's combination of high pixel density, flexible installation, and simplified control makes it ideal for creative lighting designs, architectural accents, and interactive installations requiring precise color animation.
| Parameter | Specification |
| LED Type | SMD 5050 RGB (Integrated WS2812B IC) |
| LED Density | 30 LEDs/meter (±1%) |
| Pixel Control | Individual addressability |
| PCB Type | Flexible Printed Circuit (FPCB) |
| PCB Color | White |
| PCB Dimensions | 10mm (W) × 2.5mm (T) :cite[1]:cite[4] |
| Input Voltage | DC 5V ±10% :cite[1]:cite[3] |
| Power Consumption | 9W/m (Peak 10.8W/m) :cite[1]:cite[5] |
| Grayscale Levels | 256 per channel (16.7M colors) :cite[2]:cite[6] |
| Viewing Angle | 120° (Typical) :cite[1]:cite[8] |
| Data Protocol | Single-wire NZR communication :cite[6] |
| Data Rate | 800 Kbps :cite[3] |
| Cutting Points | Per LED (marked every 33.3mm) :cite[2]:cite[6] |
| Waterproof Rating | None (Bare PCB) :cite[1]:cite[4] |
| Backing Adhesive | 3M VHB tape :cite[2]:cite[6] |
• True Pixel Control: Each LED contains integrated WS2812B driver IC enabling individual 256-step color control :cite[2]:cite[5]
• High Flexibility: 2.5mm thick FPCB allows bending radii down to 30mm for curved surfaces :cite[4]:cite[6]
• Simplified Wiring: Single data line controls entire chain (up to 1,000 LEDs with signal boosting) :cite[3]
• High Refresh Rate: 400Hz update rate eliminates visible flicker in video applications :cite[5]

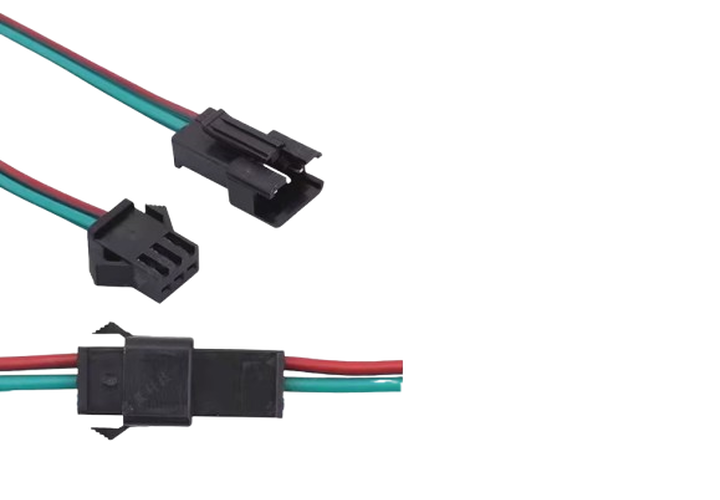

• Plug-and-Play: Pre-soldered 3-pin JST connectors at strip ends (male/female) :cite[6]
• Cut-to-Length: Scissor icons between LEDs for precise segmentation :cite[2]:cite[4]
• Low Voltage Safety: 5V operation eliminates shock hazards in DIY installations :cite[3]:cite[8]
| Color Channel | Wavelength | Luminous Intensity | Forward Voltage | Current/LED |
| Red | 620-630nm | 550-700 mcd | 1.8-2.2V | 20mA |
| Green | 515-530nm | 1100-1400 mcd | 3.0-3.2V | 20mA |
| Blue | 465-475nm | 200-400 mcd | 3.2-3.4V | 20mA |
| Note: White balance achieved at R:G:B = 3:6:1 current ratio :cite[6] |
• Cove lighting with dynamic color transitions
• Under-cabinet accent lighting in kitchens
• Staircase step illumination with motion tracking
• Media wall background glow effects
• Stage truss pixel mapping systems
• Costume-integrated programmable lighting
• Exhibition booth interactive floors
• Wedding venue ambiance control
• PC case interior RGB lighting
• Desk perimeter bias lighting (sync with displays)
• VR play area boundary markers
• Streaming studio backdrop effects
• Undercarriage neon replacement
• Dashboard accent lighting
• Trunk audio visualizer systems
• Door panel welcome sequences
• Interactive museum exhibits
• Sculpture integrated lighting
• Wearable technology projects
• Kinetic art synchronization
• Operating Temp: -20°C to +60°C (Derate 1.2%/°C above 40°C) :cite[5]
• Signal Transmission: ≤5m between strips without signal boosting :cite[3]
• Power Injection: Required every 2-3m for full brightness uniformity :cite[6]
• ESD Protection: 2KV HBM (Handle with grounded wrist strap) :cite[5]
• Lifespan: 50,000 hours to L70 (70% lumen maintenance) :cite[2]:cite[7]
• Storage Conditions: 10-30°C, <65% RH in anti-static packaging :cite[4]
