X24 120V (26S) 1324A VESC Motor Controller

VESC (100A~3000A)

$499.00
$699.00
The X24 120V (26S) 1324A VESC Motor Controller is a high-power FOC (Field-Oriented Control) system designed for demanding electric vehicles and industrial applications.
SKU: CRP02002
Package weight: 1.00 KG
IN STOCK
To Wishlist
Add to Cart

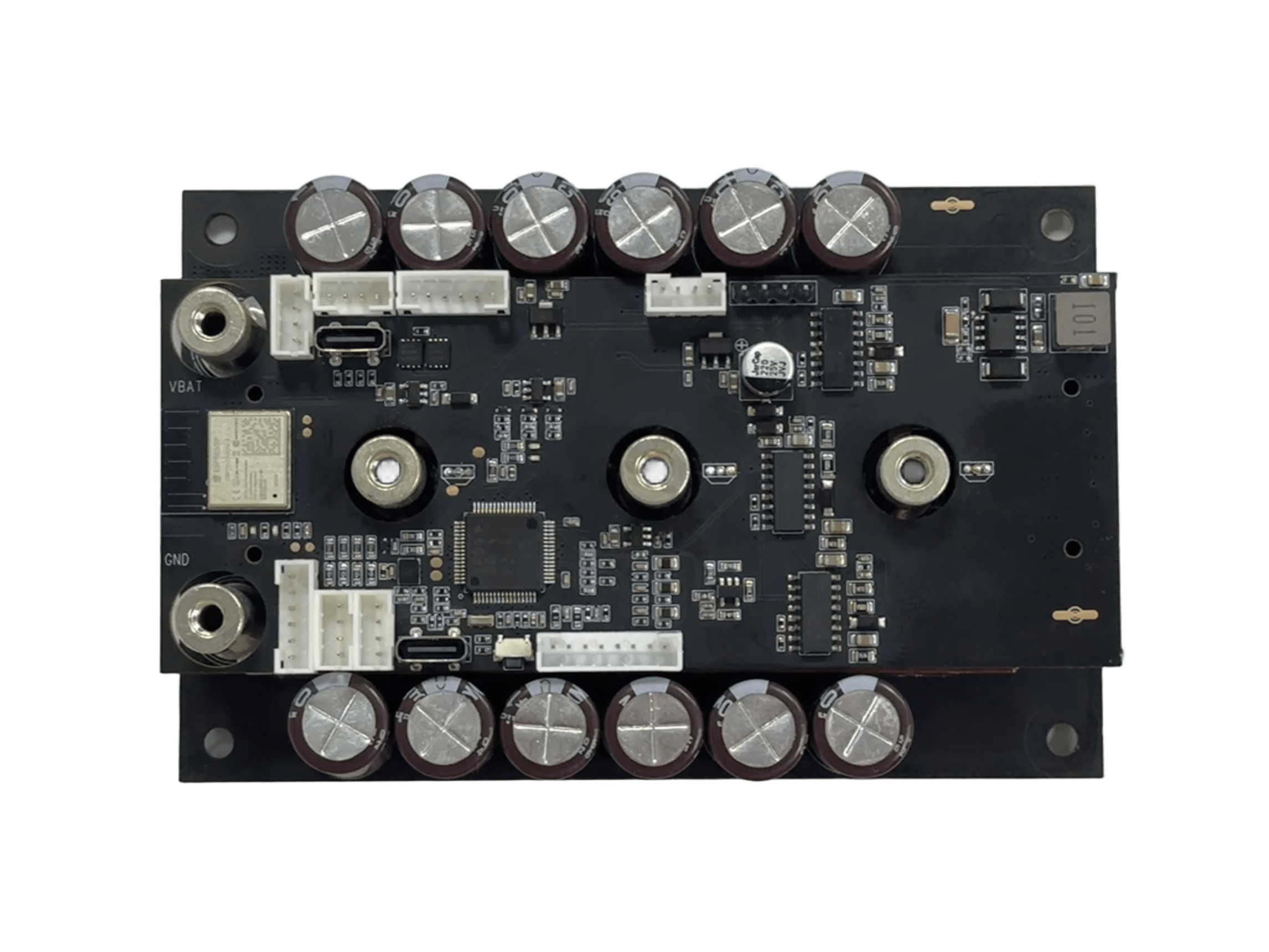

X24 120V (26S) 1324A VESC Motor Controller

The X24 120V (26S) 1324A VESC Motor Controller is a high-power FOC (Field-Oriented Control) system designed for demanding electric vehicles and industrial applications.

1. Key Electrical Parameters

ParameterValue
Product NameX24 120V (26S) 1324A VESC Motor Controller
TypeFOC or BLDC brushless motors
Maximum Input Voltage120V (recommended usage: 10S–26S battery)
Minimum Voltage40V(10S)
Continuous Current927A with adequate cooling
Pulsed Current1324A (up to 10 seconds) with adequate cooling
Input & Phase Connector5*pcs screw terminals
Serial Port InterfaceJST PH2.0 (5pcs*4PIN, 2pcs*6PIN, 1pcs*8PIN)
Dimensions (L×W×H)120 × 78 × 30 mm
Weight0.24 kg

2. Hardware Design & Construction

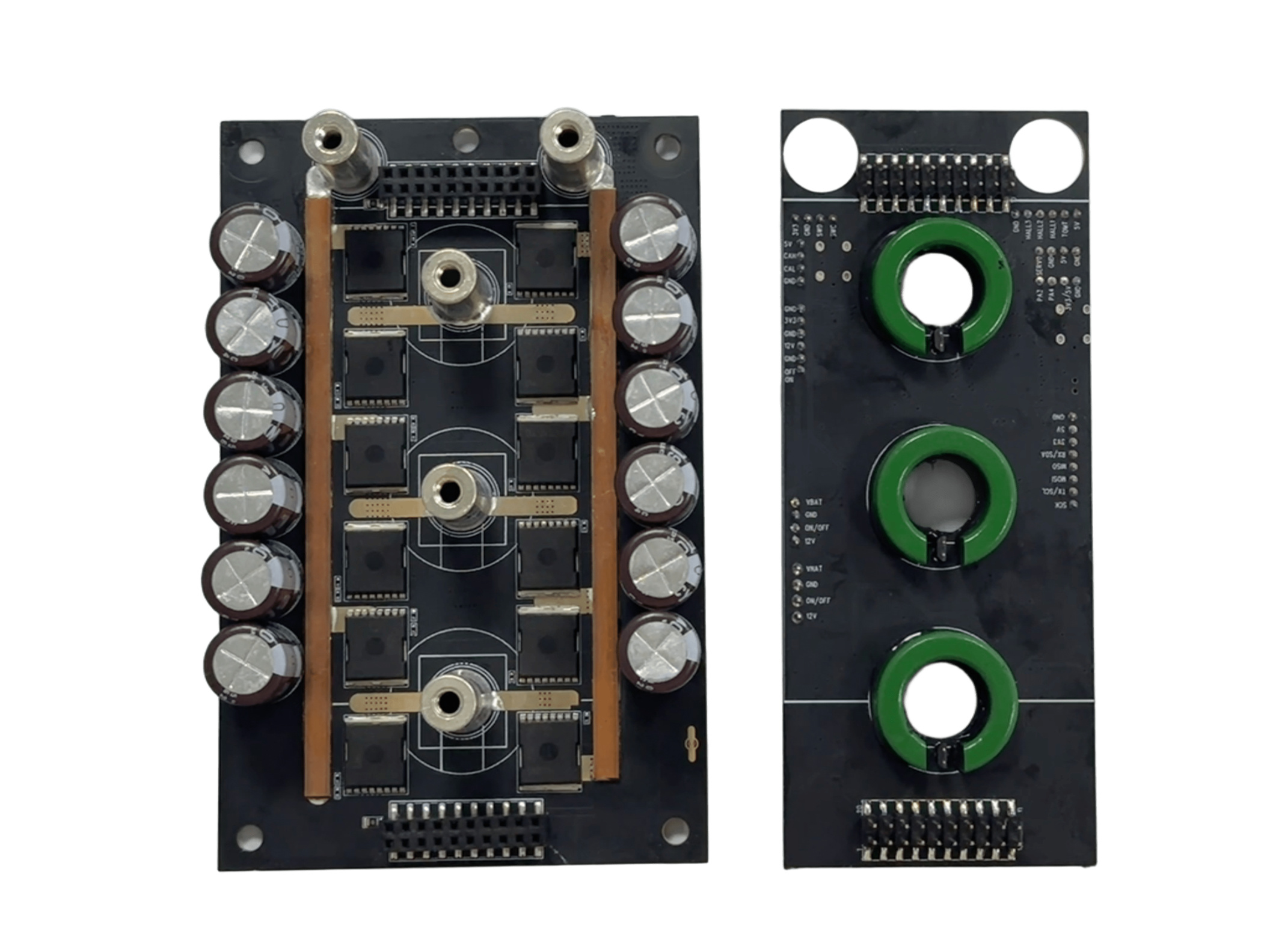

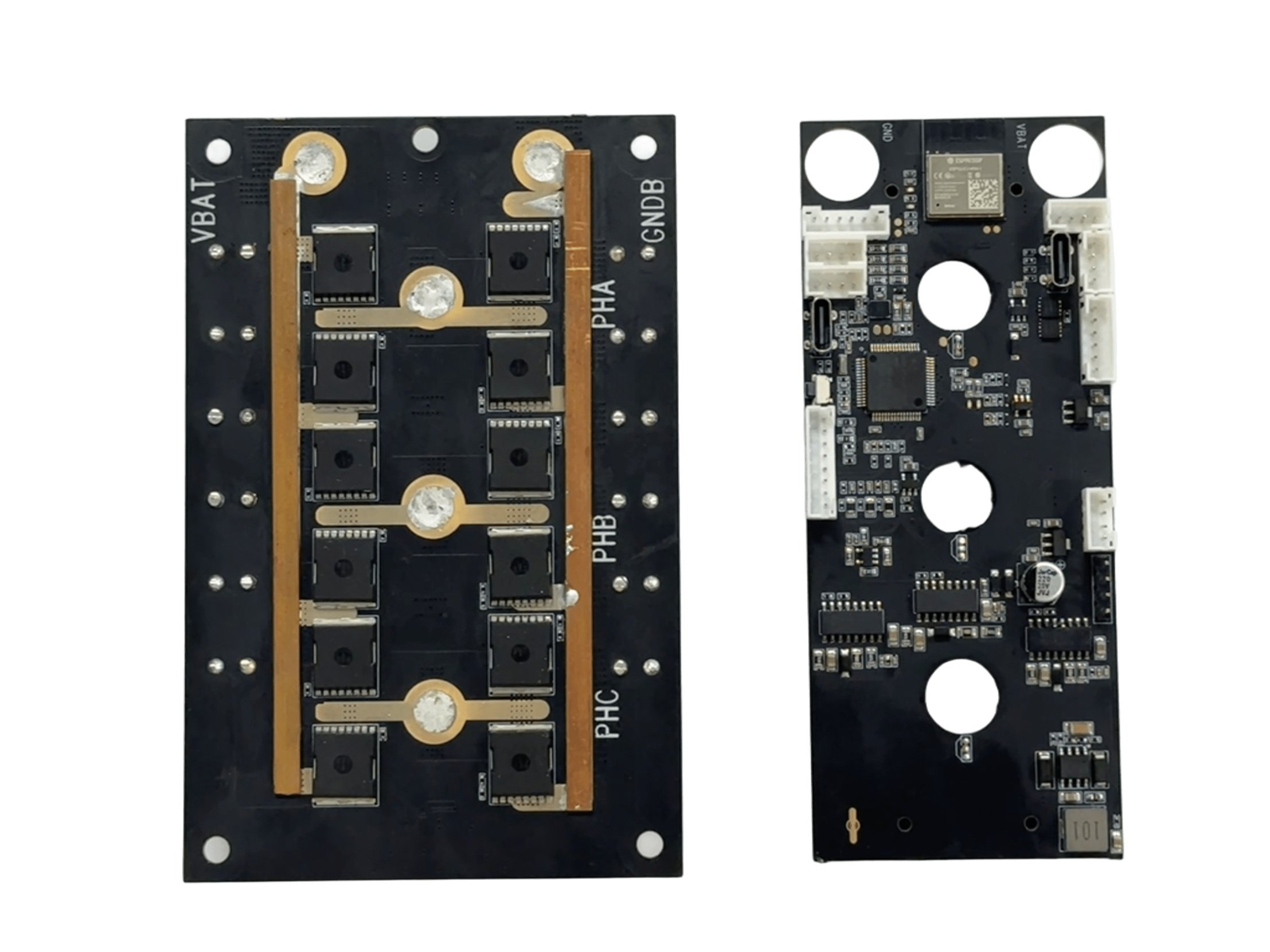

  • • Board Design: 2 boards with x3 the copper (4 x DC link copper weight)

  • • Core Design: A robust and reliable DRV-less design based on engineering practices from the EV industry.

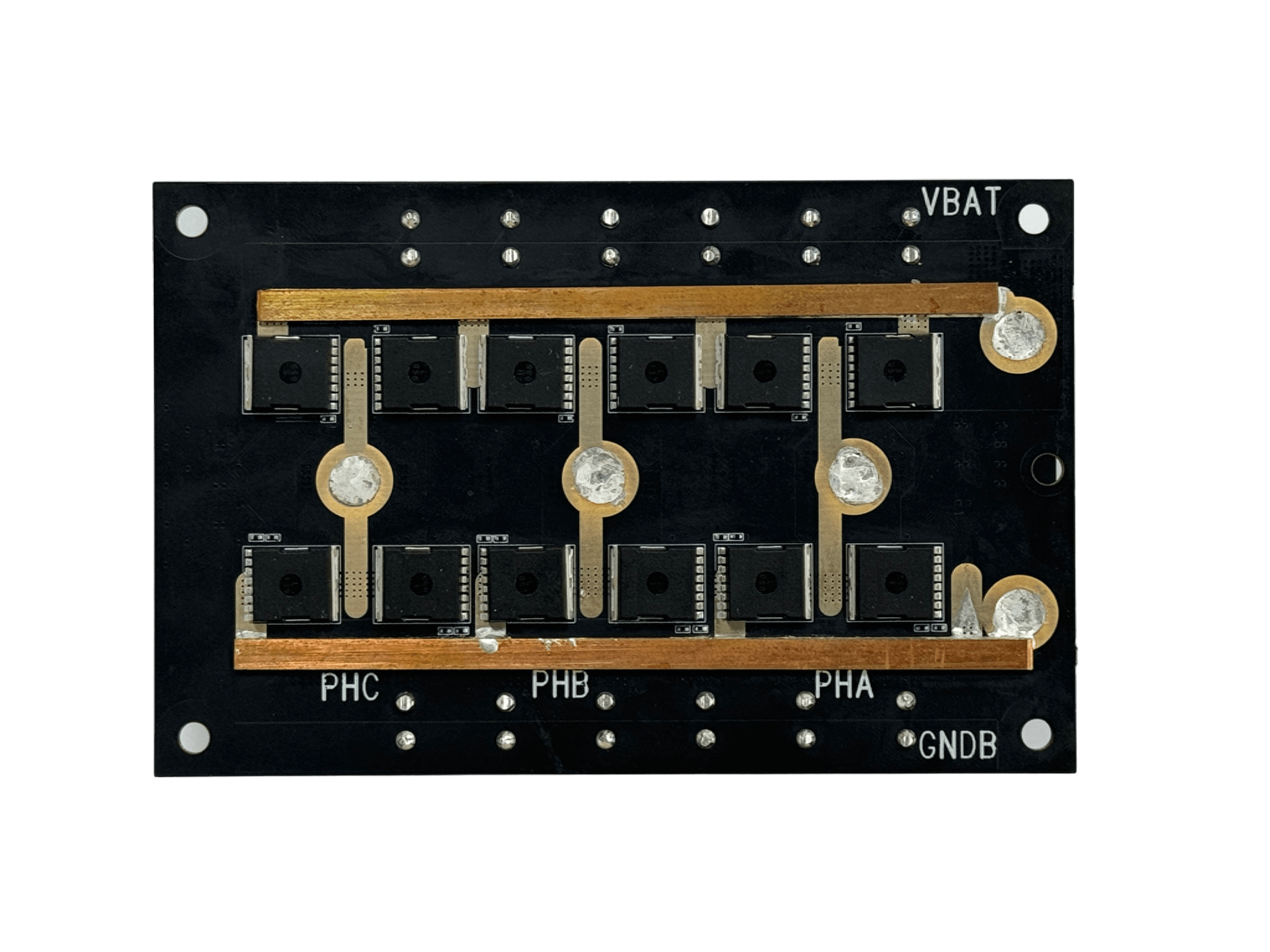

  • • Key Components: Mosfet Number & Type: 24 x IPT017N12NM6ATMA1

3. Features & Interfaces

  • • Programming Interface: USB-C port for programming or firmware updates

  • • Wireless Communication: Integrated Bluetooth transceiver

  • • Wired Communication: CAN bus communications

  • • Switch Control: Easy and optional ON/OFF capability with any latching switch

  • • Extension Support: Thermal sensor extension

4. Protection & Management Features

  • • Thermal Management: Soft and Hard Thermal Limiting

  • • Thermal Design: Requires efficient cooling (e.g., liquid) for rated continuous current performance.

5. Interface Description



Frequently Asked Questions

What VESC current rating do I need for my motor?
Choose by your motor’s phase-current demand and application. 200A–500A VESC controllers suit ebikes, scooters and light robotics; 1000A-class units power high-performance eskate, EUCs and small EVs; 2000A controllers target electric motorcycles and industrial drives. Always leave headroom above your battery’s fully-charged voltage.
Do you offer OEM/ODM customization for VESC controllers?
Yes. ChatRobotic is an ISO 9001 and ISO 14001 certified manufacturer providing OEM/ODM VESC controllers, custom firmware, enclosure design and PCB assembly for 200A–2000A applications. Contact our engineering team with your specs to start a custom build.
How long is the lead time and which shipping methods do you use?
In-stock VESC controllers are shipped via DHL/FedEx after payment is received. Delivery time depends on the shipping method: DHL/FedEx priority express 3–5 business days, economy express 4–6 business days, registered post 8–20 business days, worldwide. OEM/ODM and bulk orders are scheduled by customization scope. Logistics tracking is provided after shipment.
Are these VESC controllers compatible with sensored and sensorless motors?
Yes. ChatRobotic VESC controllers support both sensored (hall-sensor) and sensorless BLDC/PMSM motors and work with a wide battery range. FOC, regen braking, throttle curves and telemetry are fully configurable through VESC Tool.
