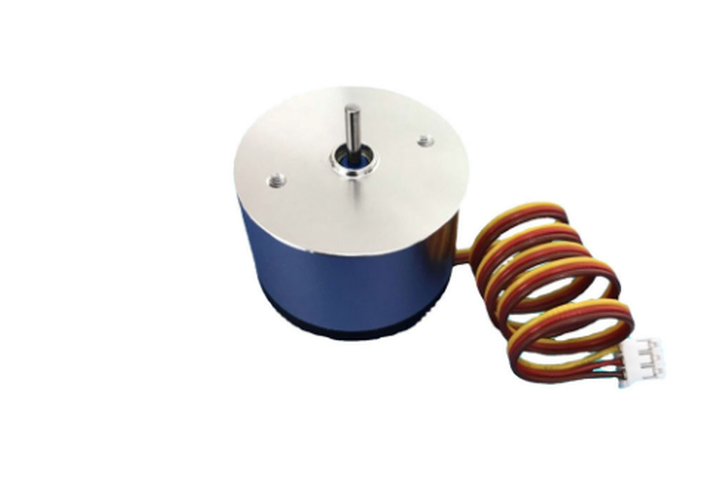

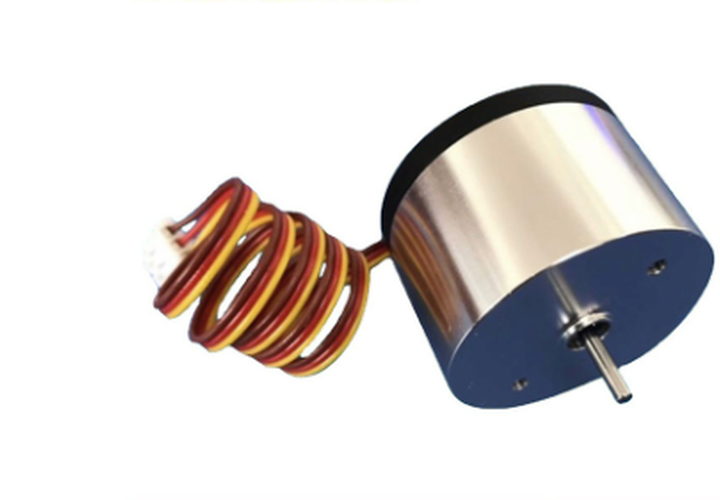

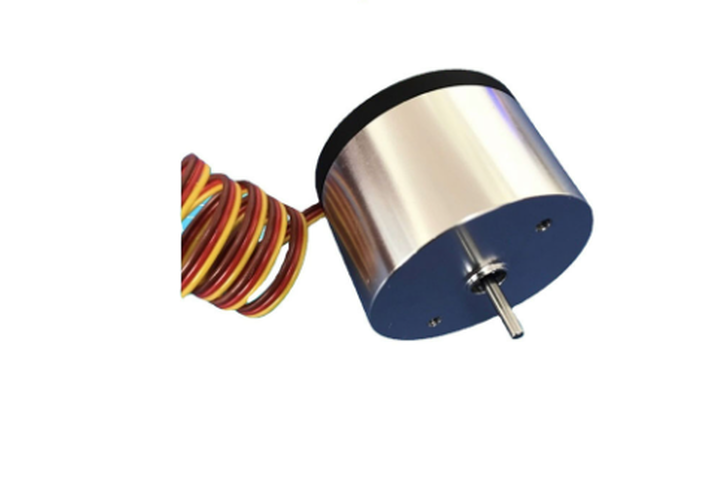

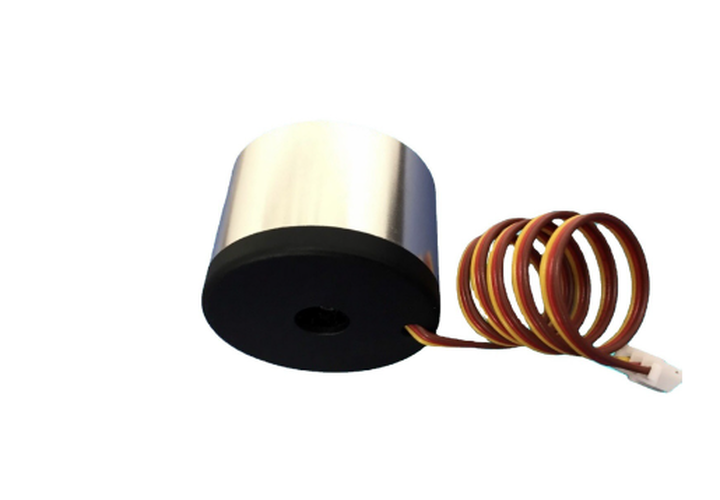

X3006 LandDrive Brushless Motor

Name: X3006 LandDrive Brushless Motor
Brand: ChatRobotic
SKU: 32011
Price: 12.90 USD
Availability: InStock

Big Motors > LandDrive (Ebike/Robots)

$12.90

The X3006 brushless DC motor is engineered for medical devices requiring ultra-precise motion control and whisper-quiet operation.

SKU: 32011

Package weight: 0.05 KG

IN STOCK

To Wishlist

Add to Cart

X3006 Direct-Sale Brushless DC Motor | High-Precision Low-Noise Medical Equipment BLDC Motor Specifications

Descriptions

The X3006 brushless DC motor is engineered for medical devices requiring ultra-precise motion control and whisper-quiet operation. Featuring surgical-grade components and EMI-shielded construction, it delivers exceptional reliability in diagnostic equipment, laboratory automation, and portable medical instruments.

1. Main Specifications

Parameter	Specification
Motor Type	3-Phase Sensorless BLDC
Protection Rating	IP54 (Dust/Splash Resistant)
Rated Voltage	3V DC
Continuous Power	0.15W @ 3V
Max Torque	11.8mNm (Peak) / 2.6mNm (Continuous)
Speed Range	500-12000 RPM (PWM Adjustable)
Resistance	0.8Ω (Phase-to-Phase)
Shaft Diameter	3mm (SUS304 Stainless Steel)
Weight	220g
Mounting Pattern	10×10mm / 15×15mm

2. Key Features

• Medical-Grade Silence: <18dB(A) operation with precision-balanced rotor
• Zero-Particulate Design: Sealed bearings & vacuum-impregnated windings
• EMI Compliance: RF-shielded casing meets EN 60601-1-2 standards
• Step-Loss Prevention: Integrated 12-bit magnetic encoder feedback
• Sterilization Ready: Autoclavable housing (134°C/30min cycles)

3. Performance Data

Torque/Speed Curve (25°C Ambient)

Voltage	No-Load Speed	Stall Torque	Efficiency
3V	1000 RPM	11.8mNm	92%

4. Recommended Applications

🏥 Medical Devices

• Blood analyzer pump drives
• Surgical robot joint actuators
• MRI-compatible positioning systems

🔬 Laboratory Equipment

• Microplate handler mechanisms
• Pipetting module drives
• Centrifuge motor assemblies

5. Thermal Characteristics

• Continuous Duty: 40°C @25°C ambient (Class B insulation)

• Thermal Protection: PTC thermistor cutoff at 85°C

• Storage Conditions: -40℃ ~ +85℃, <80% RH

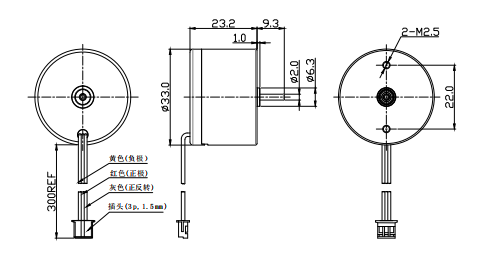

X3006 (2).png

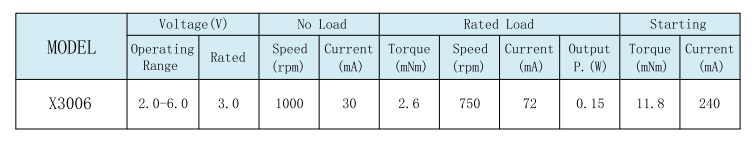

X3006 (1).png
