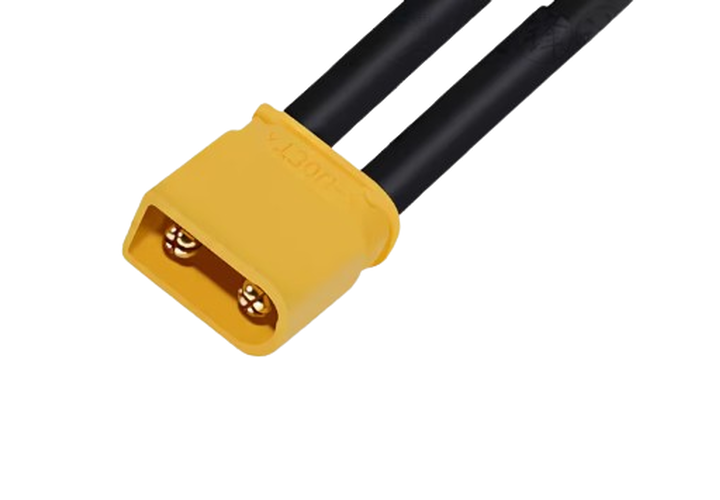

The XT30 connector set features compact gold-plated contacts with 150mm high-flexibility silicone wires for space-constrained drone and RC applications. Engineered with precision-molded housings and secure locking, it provides reliable current transmission in lightweight systems. The connector's polarized design and low-resistance contacts ensure safe, efficient power connections for battery-to-ESC systems in micro and mini drone platforms requiring optimal power-to-weight ratios.
| Parameter | Specification |
| Connector Type | XT30 Male & Female Pair |
| Wire Gauge | 16AWG Silicone (1.3mm²) |
| Wire Length | 150mm ±5mm |
| Contact Material | Brass with 2.5μm Gold Plating |
| Housing Material | Glass-Filled Nylon (UL94 V-0) |
| Current Rating | 30A Continuous (45A Peak) |
| Voltage Rating | 500V AC/DC |
| Contact Resistance | <0.8mΩ |
| Mating Cycles | >500 cycles |
| Polarization | Keyed Design (Foolproof) |
| Weight | 8g (Pair with wires) |
• Space-Saving Design: 30% smaller than XT60 for compact builds
• Gold-Plated Contacts: Low resistance and oxidation prevention
• Positive Locking: Audible click securement mechanism
• Strain Relief: Reinforced cable entry withstands 15N pull force
• Polarity Safety: Physical keying prevents reverse connections
• Flexible Silicone: High-temperature wire (-60°C to +200°C)
• Color Coding: Standard blue female/black male identification
| Current | Voltage Drop | Temperature Rise | Recommended Wire Length |
| 15A | 0.04V | 12°C | Up to 250mm |
| 30A | 0.09V | 30°C | Up to 150mm |
| 45A | 0.18V | 48°C | Max 100mm |
• 2-4S LiPo battery connections for 3-5" drones
• Tiny whoop FPV quadcopter power systems
• Digital HD micro drones (DJI O3, Walksnail)
• Long-range micro UAV power interfaces
• Micro FPV camera power leads
• Mini ESC-to-battery wiring
• Lightweight power distribution boards
• Portable charger adapter cables
• Mini solar power stations
• Portable jump starter connections
• DIY power bank interfaces
• Robotics power harnesses
• High-performance RC car batteries
• Mini quadcopter racing builds
• Scale model aircraft power systems
• DIY electronics prototyping
• Operating Temperature: -40°C to +120°C
• IP Rating: IP52 when mated (dust protected, drip resistant)
• Vibration Resistance: 10-2000Hz, 5G acceleration
• Flame Resistance: UL94 V-0 certified housing
• Chemical Resistance: Resists common RC fuels and cleaners
• Storage Conditions: -20℃ ~ +40℃, <75% RH
