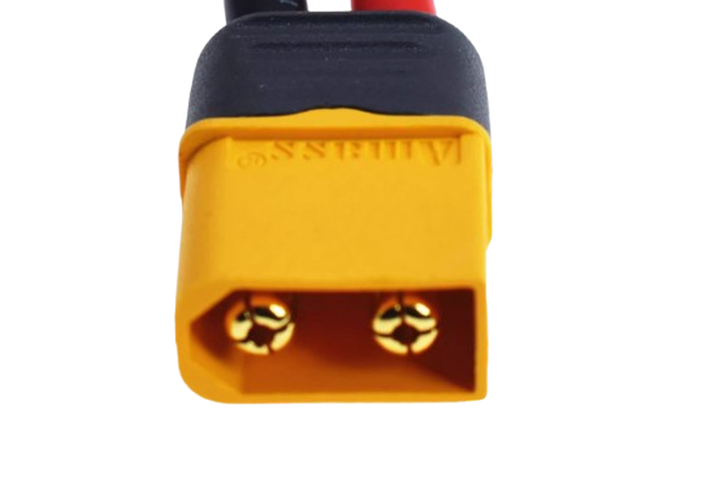

The XT60 connector set features gold-plated contacts with 200mm high-current silicone wires for reliable power connections in drones, RC models, and high-power electronics. Engineered with precision-molded housings and strain relief, it provides exceptional current handling capacity and vibration resistance. The set's polarized design and secure locking mechanism ensure safe, spark-free connections for battery-to-ESC power systems, making it ideal for high-performance applications requiring robust power transmission.
| Parameter | Specification |
| Connector Type | XT60 Male & Female Pair |
| Wire Gauge | 12AWG Silicone (3.3mm²) |
| Wire Length | 200mm ±10mm |
| Contact Material | Brass with 3μm Gold Plating |
| Housing Material | Glass-Filled Nylon (UL94 V-0) |
| Current Rating | 60A Continuous (80A Peak) |
| Voltage Rating | 600V AC/DC |
| Contact Resistance | <0.5mΩ |
| Mating Cycles | >500 cycles |
| Polarization | Keyed Design (Foolproof) |
| Weight | 28g (Pair with wires) |
• High-Current Design: 60A continuous rating for demanding applications
• Gold-Plated Contacts: Low resistance and corrosion-free performance
• Secure Locking: Positive click-lock mechanism prevents disconnection
• Strain Relief: Double-injection molded cable entry withstands 25N pull
• Polarized Safety: Prevents reverse polarity connections
• Silicone Insulation: Flexible and heat-resistant (-60°C to +200°C)
• Color Coding: Standard yellow female/black male for easy identification
| Current | Voltage Drop | Temperature Rise | Recommended Wire Length |
| 30A | 0.03V | 15°C | Up to 300mm |
| 60A | 0.07V | 35°C | Up to 200mm |
| 80A | 0.12V | 55°C | Max 150mm |
• LiPo battery to ESC power connections
• Charger-to-battery adapter cables
• Parallel battery harnesses
• PDB (Power Distribution Board) wiring
• Solar power system interconnects
• Ebike battery connections
• Power supply output terminals
• Server rack power distribution
• Portable power station interfaces
• Solar generator cabling
• Battery bank interconnects
• EV conversion projects
• 3D printer power upgrades
• High-current lab bench supplies
• Audio amplifier power inputs
• Welding equipment connections
• Operating Temperature: -40°C to +120°C
• IP Rating: IP54 when mated (dust and splash resistant)
• Vibration Resistance: MIL-STD-202G Method 214
• Flame Resistance: UL94 V-0 certified housing
• Chemical Resistance: Resists fuels, oils, and solvents
• Storage Conditions: -20℃ ~ +40℃, <80% RH
