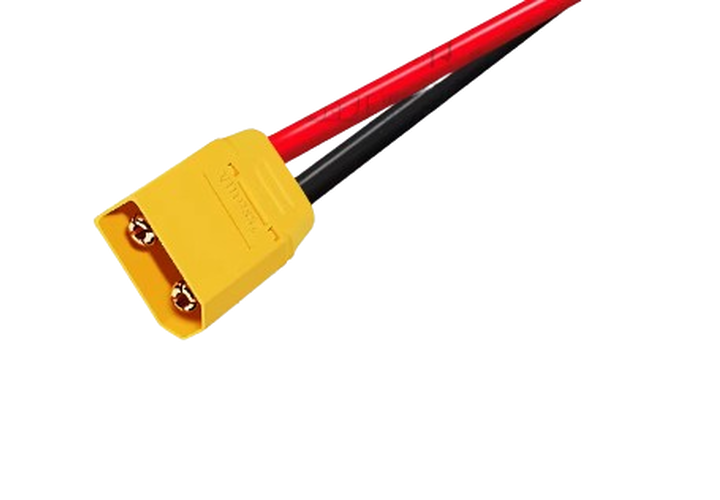

The XT90 connector set features industrial-grade yellow housings with 10AWG silicone wires for ultra-high-current power transmission in large drones, EV systems, and heavy-duty applications. Engineered with oversized gold-plated contacts and robust strain relief, it delivers exceptional current handling with minimal voltage drop. The connector's arc-resistant design and secure locking mechanism ensure safe, reliable connections for high-power battery systems operating under demanding conditions.
| Parameter | Specification |
| Connector Type | XT90 Male & Female Pair (Yellow) |
| Wire Gauge | 10AWG Silicone (5.3mm²) |
| Wire Length | 200mm ±10mm |
| Contact Material | Brass with 5μm Gold Plating |
| Housing Material | Glass-Filled Nylon (UL94 V-0) |
| Current Rating | 90A Continuous (120A Peak) |
| Voltage Rating | 600V AC/DC |
| Contact Resistance | <0.3mΩ |
| Mating Cycles | >500 cycles |
| Polarization | Keyed Design (Foolproof) |
| Weight | 52g (Pair with wires) |
| Wire Type | Silicone Insulated (200°C rated) |
• Extreme Current Capacity: 90A continuous rating for heavy-power systems
• Anti-Spark Design: Pre-charge resistor compatible for safe connections
• Industrial Contacts: Oversized 5μm gold-plated terminals
• Double-Lock Mechanism: Primary click-lock + secondary friction lock
• Strain Relief: Triple-injection molded strain boot (35N pull strength)
• High-Temp Wires: 10AWG silicone insulation (-60°C to +200°C)
• Arc Resistance: Specially designed to prevent arcing at high currents
• Visual Safety: Yellow housing indicates high-voltage/high-current application
| Current | Voltage Drop | Temperature Rise | Max Recommended Cable Run |
| 60A | 0.04V | 18°C | Up to 400mm |
| 90A | 0.08V | 32°C | Up to 200mm |
| 120A | 0.15V | 52°C | Max 150mm |
• Agricultural sprayer battery connections
• Cargo delivery UAV power systems
• Industrial inspection drone batteries
• Cinematography octocopter power
• Ebike battery pack interfaces
• Electric scooter power harnesses
• EV conversion battery terminals
• Solar car racing power systems
• Solar farm battery interconnects
• Home energy storage connections
• EV charging station wiring
• Portable welding machine inputs
• Robot welding cell power
• CNC machine spindle connections
• Server rack DC power distribution
• Stage lighting power feeds
• 1/5 scale RC car battery systems
• Large scale boat power connections
• Jet turbine starter circuits
• Competition rock crawler electronics
• Operating Temperature: -40°C to +120°C
• IP Rating: IP55 when mated (dust protected, water jet resistant)
• Vibration Resistance: MIL-STD-810H Method 514.7
• Flame Resistance: UL94 V-0 certified housing
• Chemical Resistance: Resists diesel, hydraulic fluid, and UV exposure
• Salt Spray Rating: 500hrs @5% NaCl solution
• Storage Conditions: -30℃ ~ +50℃, <85% RH
