ZH1.5mm Terminal Cable - 200mm

Accessories > Others

$0.10
The ZH1.5 terminal wire is a precision-engineered connector solution designed for reliable electrical connections in various electronic applications.
SKU: 44201
Package weight: 0.10 KG
ZH1.5mm Terminal Cable:

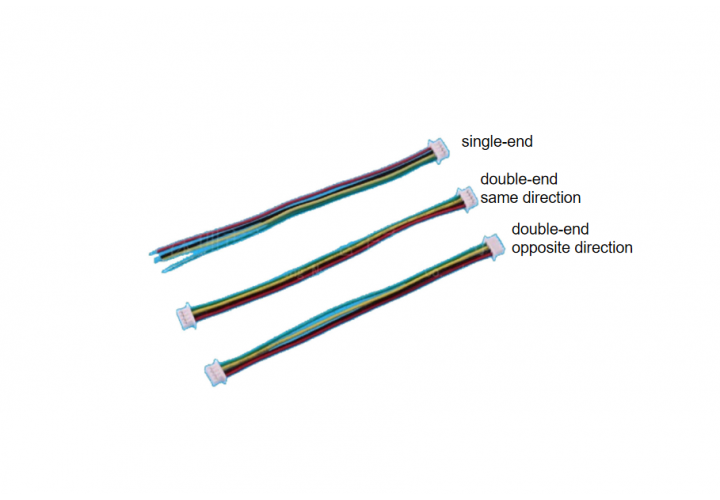

ZH1.5mm terminal cable, single-end ZH1.5mm terminal cable, double-end, same direction ZH1.5mm terminal cable, double-end, opposite direction
Specification:
2P 3P 4P 5P 6P 7P 8P 9P 10P 12P
IN STOCK
To Wishlist
Add to Cart



ZH1.5 Terminal Cable Full English Specifications

Product Overview

The ZH1.5 terminal wire is a precision-engineered connector solution designed for reliable electrical connections in various electronic applications. It features a 1.50mm pitch spacing and is available with both single-end and dual-end termination configurations. These wires are commonly used in internal wiring of electronic devices, appliances, and industrial equipment for board-to-wire connections, offering a compact solution for space-constrained applications.

1. Main Specifications

ParameterSpecification
Connector TypeZH1.5
Pitch Spacing1.50mm
Termination OptionsSingle-end / Dual-end (Same-side or Opposite-side)
Number of Positions2P-12P
Wire Length200mm
Rated Voltage250V AC/DC
Rated Current1.0A-3.0A AC/DC
Operating Temperature-25℃ to +85℃
Withstand Voltage500V-1000V AC/min

2. Electrical Characteristics

ParameterValue
Contact Resistance≤20mΩ Max
Insulation Resistance≥1000MΩ Min
Dielectric Strength500V-1000V AC

3. Mechanical Properties

ParameterValue
Circuit Number1×2P-1×16P
Applicable Wire RangeAWG28#-AWG22#
Housing MaterialPA66 or Nylon
Contact MaterialBrass/Phosphor Bronze

4. Environmental Specifications

ParameterRange
Operating Temperature-25℃ to +85℃
Relative Humidity93% @ 40℃

5. Material Construction

ComponentMaterial Specification
TerminalBrass/Phosphor Bronze (Tin plating or Gold plating available)
Housing/InsulatorPA66 or Nylon (UL94V-0 rated)
Wire InsulationUL1571 or PVC
ConductorBare copper or tin-plated copper strand

6. Recommended Applications

  • • Consumer Electronics: Internal wiring for computers, printers, display equipment

  • • Home Appliances: Connections in refrigerators, washing machines, microwaves

  • • LED Lighting: LED lamps and lighting fixtures

  • • Industrial Control: Instrumentation, sensors, control systems

  • • Automotive Electronics: Internal wiring for automotive control systems

  • • Audio Equipment: Speaker systems, audio connectors

7. Compliance & Certification

  • • RoHS Compliance: Meets RoHS directives

  • • Flammability Rating: UL94V-0
